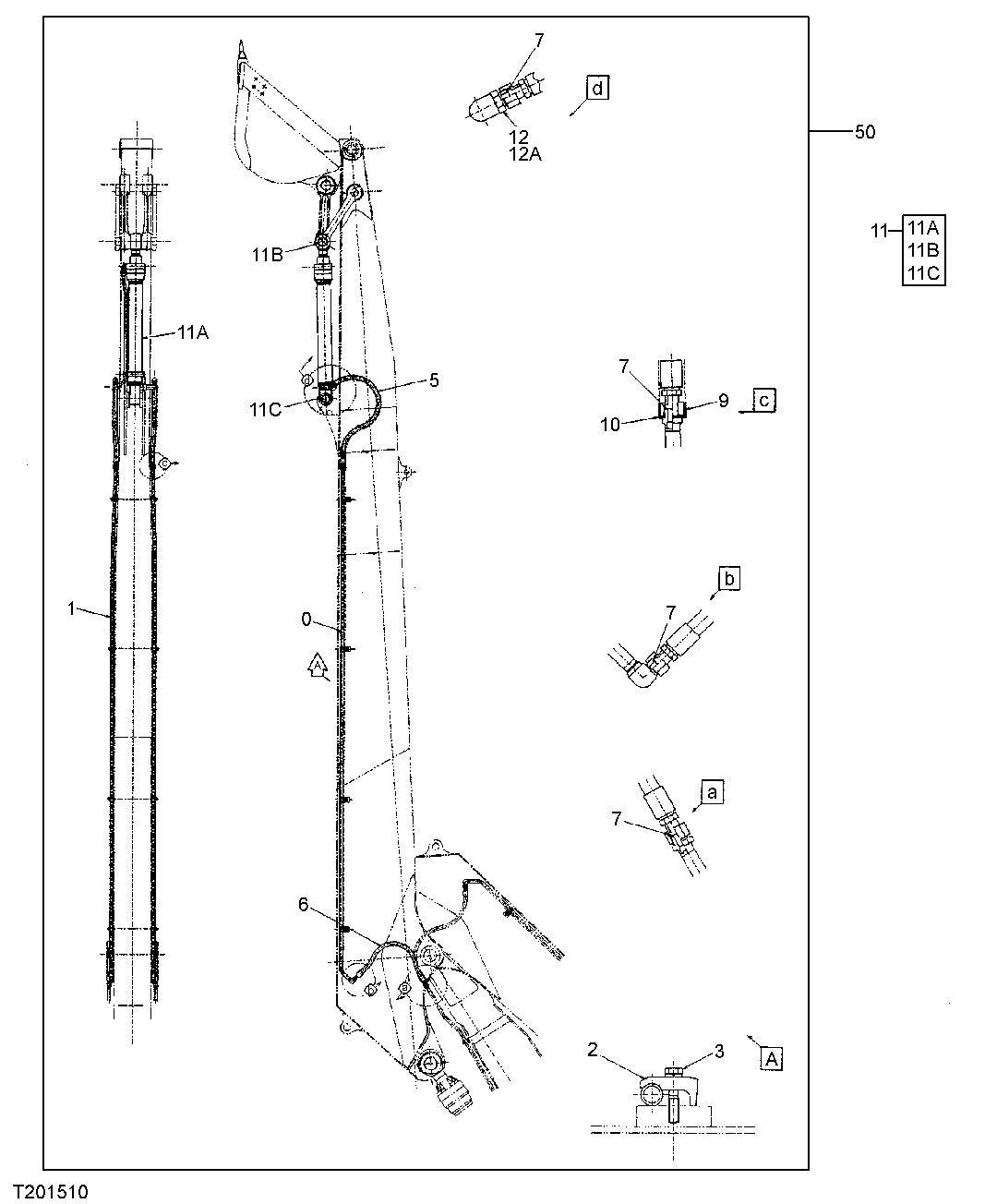

Запчасти John Deere 30CLC 361 - SUPER LONG FRONT ARM PLUMBING (330CLC) 3360 HYDRAULIC SYSTEM

0

8083447

Tube

1шт.

1

8083525

Tube

1шт.

2

4190126

Clamp

8шт.

3

19M7363

Cap Screw

M12 X 60 (SUB FOR J011260)

8шт.

5

AT154876

Hydraulic Hose

(SUB FOR 4250889)

2шт.

6

4296268

Hydraulic Hose

2шт.

7

T77858

O-Ring

(SUB FOR 4187308)

8шт.

9

4053610

Hose Guard

2шт.

10

4203220

Washer

2шт.

11

Cylinder

( 9152098 NLA) (SUB 4370785JEX)

1шт.

11A

4370785JEX

Hydraulic Cylinder Reman

(REMAN) (SUB FOR 4370785)

1шт.

11B

4352400

Bushing

2шт.

11C

4362025

Bushing

2шт.

12

A853166

Adapter Fitting

2шт.

12A

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

50

AT1314804

Mounting Parts

(WHOLEGOODS) Super Long Front Kit Additional Components On Separate Pages (ALSO ORDER T153672, T15367 3, (2) T185126, T211137 AND T21112 8)

1шт.
