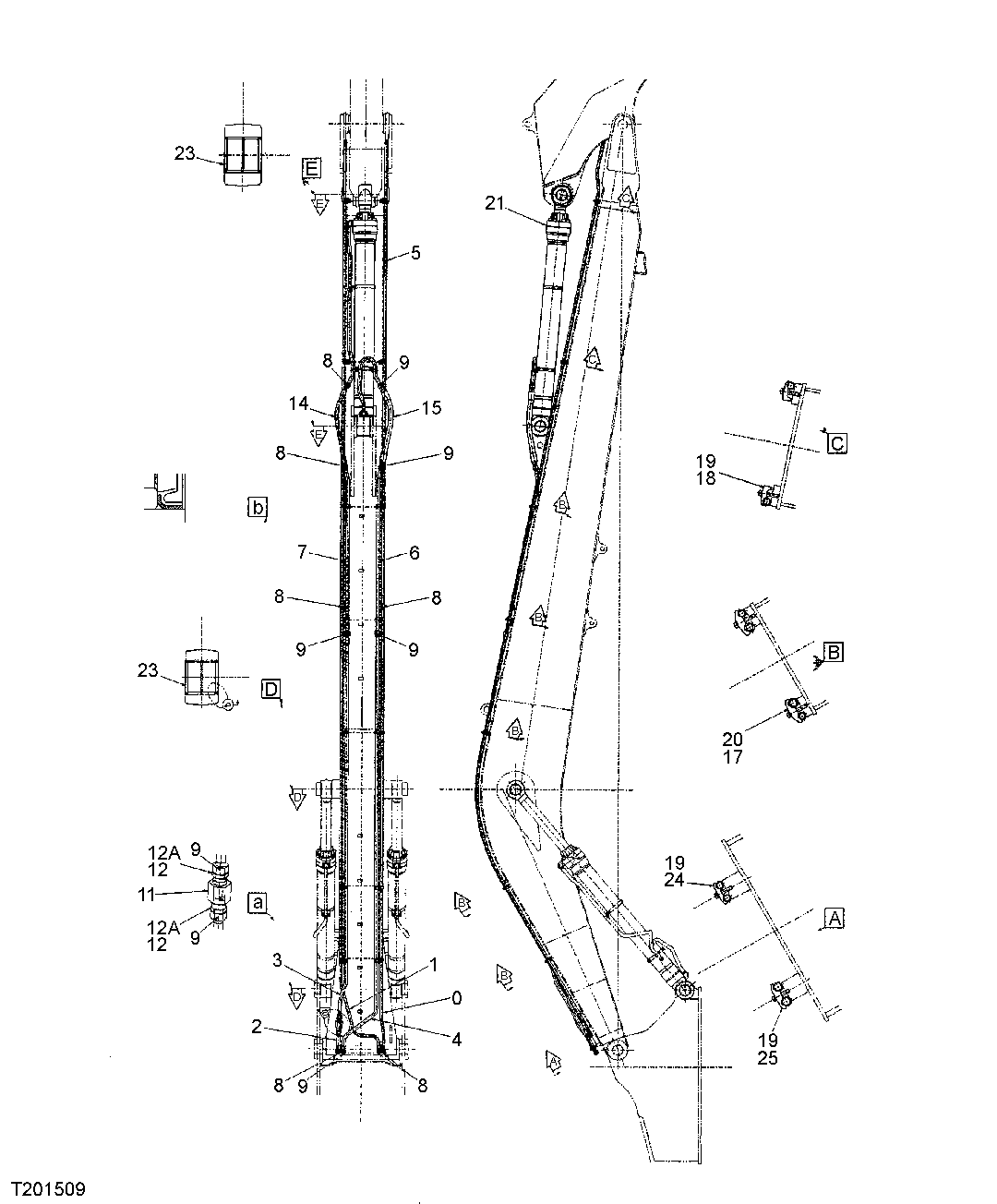

Запчасти John Deere 30CLC 360 - SUPER LONG FRONT BOOM PLUMBING (330CLC) 3360 HYDRAULIC SYSTEM

0

8083437

Tube

1шт.

1

8083438

Tube

1шт.

2

9756340

Tube

1шт.

3

8083439

Tube

1шт.

4

8083440

Tube

1шт.

5

8083441

Tube

2шт.

6

9756341

Tube

1шт.

7

9756343

Tube

1шт.

8

T76938

O-Ring

SUB FOR 4187328

7шт.

9

T78612

O-Ring

SUB FOR 4187329

7шт.

11

9075046

Flow Control Hyd. Valve

1шт.

12

A853180

Adapter Fitting

2шт.

12A

TH101926

O-Ring

SUB FOR 4506429

1шт.

14

4345675

Hydraulic Hose

1шт.

15

4387252

Hydraulic Hose

Fabricate

1шт.

17

4153488

Clamp

10шт.

18

4190126

Clamp

4шт.

19

19M7363

Cap Screw

M12 X 60 SUB FOR J011260

6шт.

20

19M7753

Cap Screw

M12 X 70 SUB FOR J011270

10шт.

21

9193145

Cylinder

Arm SUB FOR 9164990, THIS APPLICATION

1шт.

23

TH103200

Seal

SUB FOR 4085479

12шт.

24

Clamp

4285723 NLA; ORDER 4189859 Rubber

1шт.

4189859

Clamp

Steel

1шт.

25

4189860

Clamp

1шт.

50

AT1314804

Mounting Parts

Super Long Front Kit Not Illustrated Contain s All Items On This Page - Additional Compone nts Listed On Separate Pages ALSO ORDER T1536 72, T153673, (2) T185126, T211137 AND T211128

1шт.
