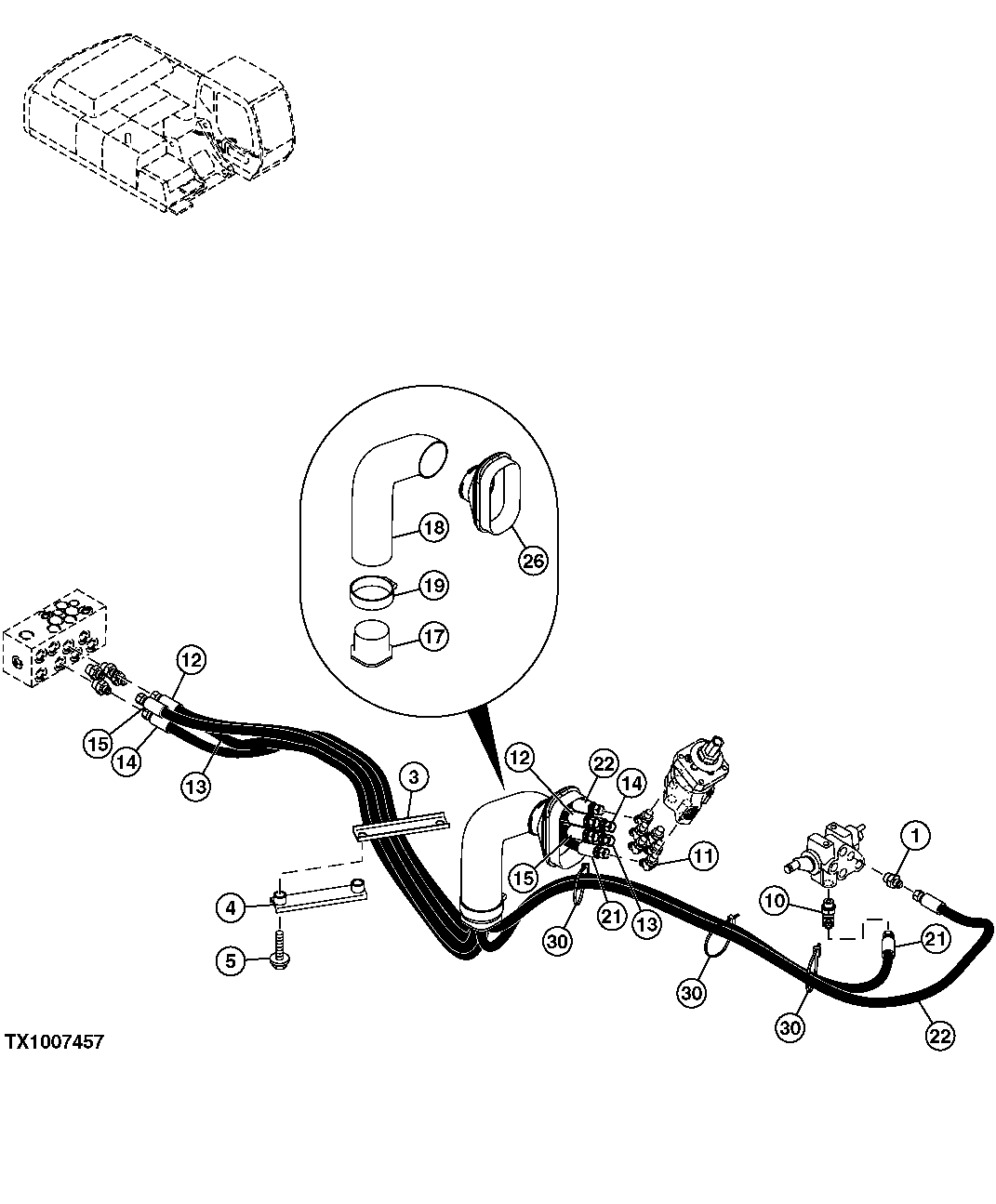

Запчасти John Deere 30CLC 355 - PILOT LINES (RIGHT SIDE OF MACHINE) 3360 HYDRAULIC SYSTEM

1

4261938

Fitting

(SUB FOR AT154285)

1шт.

1A

CH11570

O-Ring

Not Illustrated

1шт.

3

4412666

Clamp

(SUB FOR TH4412666)

1шт.

4

9751787

Clamp

(SUB FOR TH9751787)

1шт.

5

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

10

P67989

Elbow Fitting

1шт.

10A

CH11570

O-Ring

Not Illustrated

1шт.

11

A852223

Elbow Fitting

(SUB FOR THA852223)

6шт.

11A

M800650

Packing

Not Illustrated

1шт.

12

4456555

Hydraulic Hose

(SUB FOR TH4456555)

1шт.

13

4456556

Hose

(SUB FOR TH4456556)

1шт.

14

4450058

Hose

(SUB FOR TH4456546, 4456546, 4398302)

1шт.

15

4456547

Hydraulic Hose

(SUB FOR TH4456547)

1шт.

17

3079728

Bushing

(SUB FOR AT250589)

1шт.

18

4351175

Hose

(SUB FOR AT213957)

1шт.

19

4351774

Clamp

(SUB FOR AT213962)

1шт.

21

4438288

Hydraulic Hose

(SUB FOR TH4438288) Fabricate

1шт.

22

4438290

Hydraulic Hose

(SUB FOR TH4438290)

1шт.

26

2045998

Bushing

(SUB FOR TH2045998)

1шт.

30

H77698

Tie Band

3шт.
