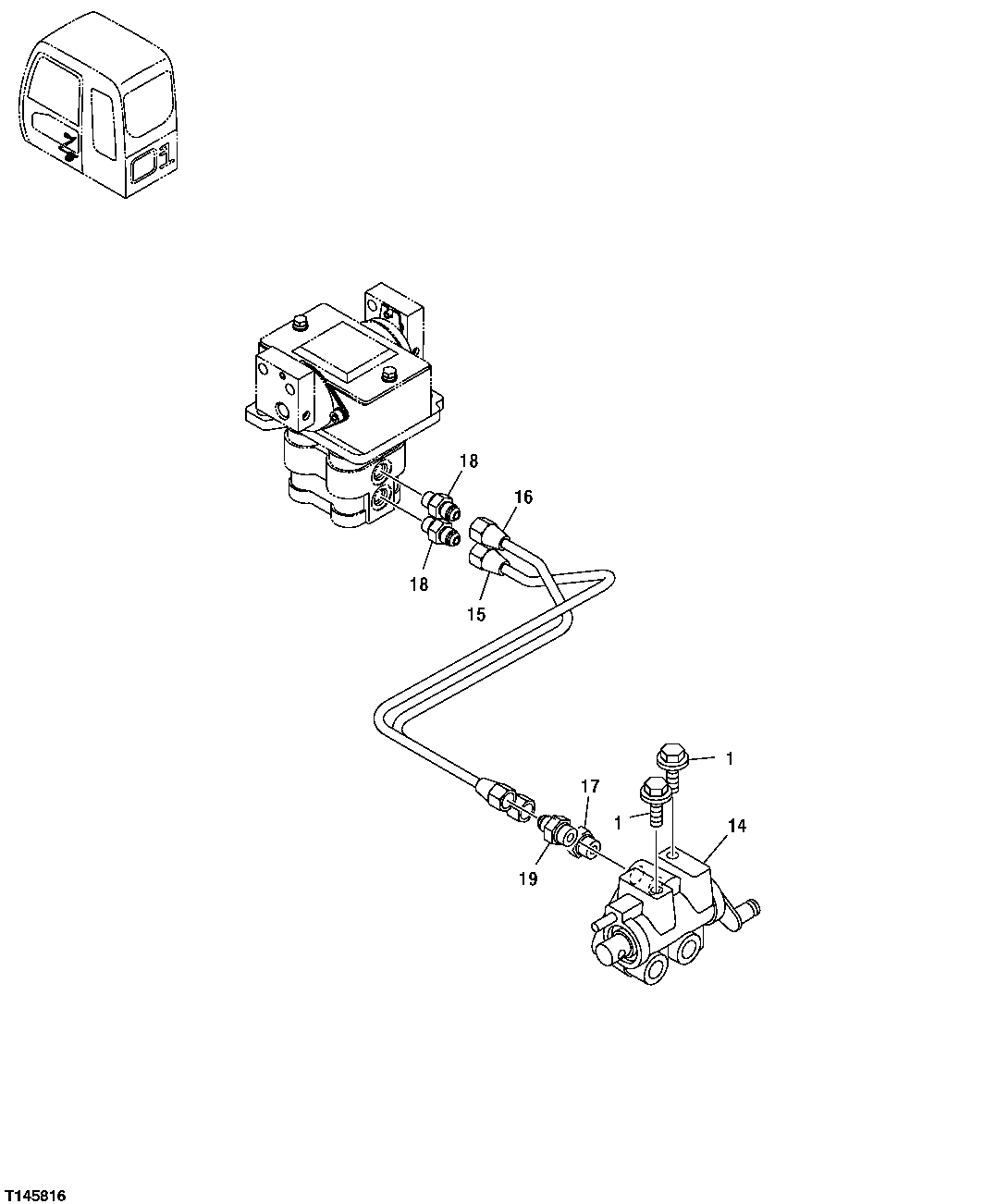

Запчасти John Deere 30CLC 352 - PILOT LINES (PILOT SHUTOFF VALVE TO PROPEL PILOT CONTROLLER) 3360 HYDRAULIC SYSTEM

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

14

4407253

Flow Control Hyd. Valve

(SUB FOR TH4407253)

1шт.

15

4452052

Oil Line

(SUB FOR TH4452052)

1шт.

4607398

Oil Line

1шт.

16

4452053

Oil Line

(SUB FOR TH4452053)

1шт.

4607399

Oil Line

1шт.

17

4255305

Fitting

1шт.

17A

CH11570

O-Ring

1шт.

18

4255304

Fitting

(SUB FOR AT155270)

2шт.

18A

M800650

Packing

1шт.

19

4452326

Filter

(SUB FOR TH4452326)

1шт.

19A

CH11570

O-Ring

1шт.
