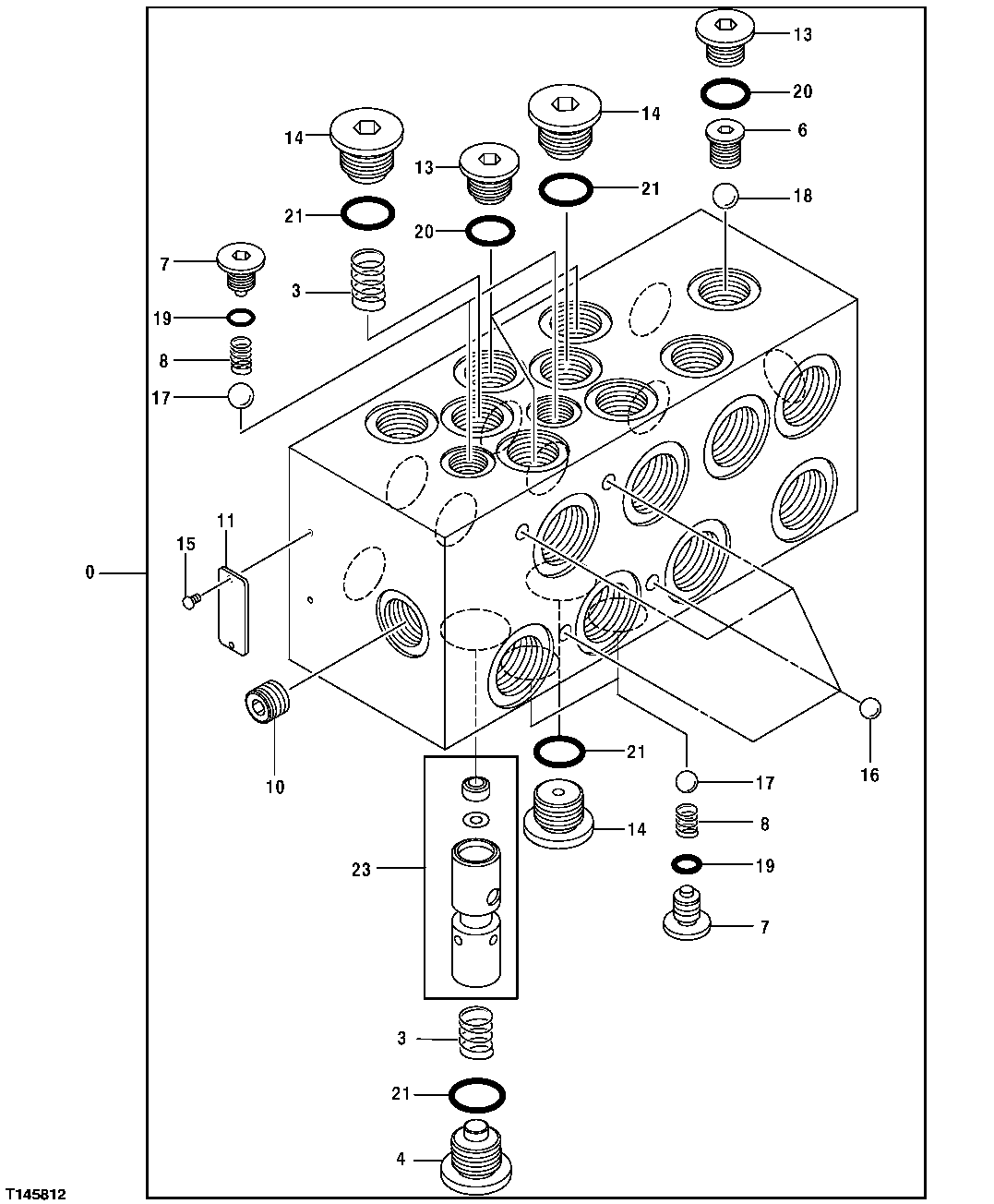

Запчасти John Deere 30CLC 348 - FLOW REGULATOR VALVE 3360 HYDRAULIC SYSTEM

0

4445357

Hyd Actuated Control Valve

(SUB FOR TH4445357)

1шт.

3

0309801

Spring

(SUB FOR TH109280)

2шт.

4

0309802

Pipe Plug

(SUB FOR TH109281)

1шт.

6

0614101

Seat

(SUB FOR AT204780)

1шт.

7

0614204

Fitting Plug

(SUB FOR AT204861)

4шт.

8

0614207

Compression Spring

(SUB FOR AT204788)

4шт.

10

0669201

Orifice

(SUB FOR AT213708)

1шт.

11

Plate

(NOT AVAILABLE)

1шт.

13

0314205

Plug

(SUB FOR AT120949 OR TH0314205)

4шт.

14

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

3шт.

15

37H99

Screw

0.100" X 1/4"

2шт.

16

Ball

(NOT AVAILABLE)

4шт.

17

F740009D

Ball

7.137 mm (9/32") (SUB F OR AT204789 OR 0614208)

4шт.

18

0253304

Ball

(SUB FOR AT204777)

1шт.

19

4506408

O-Ring

(SUB FOR TH101490)

4шт.

20

M800650

Packing

4шт.

21

CH11570

O-Ring

4шт.

23

0352402

Plunger

(SUB FOR AT127370)

1шт.
