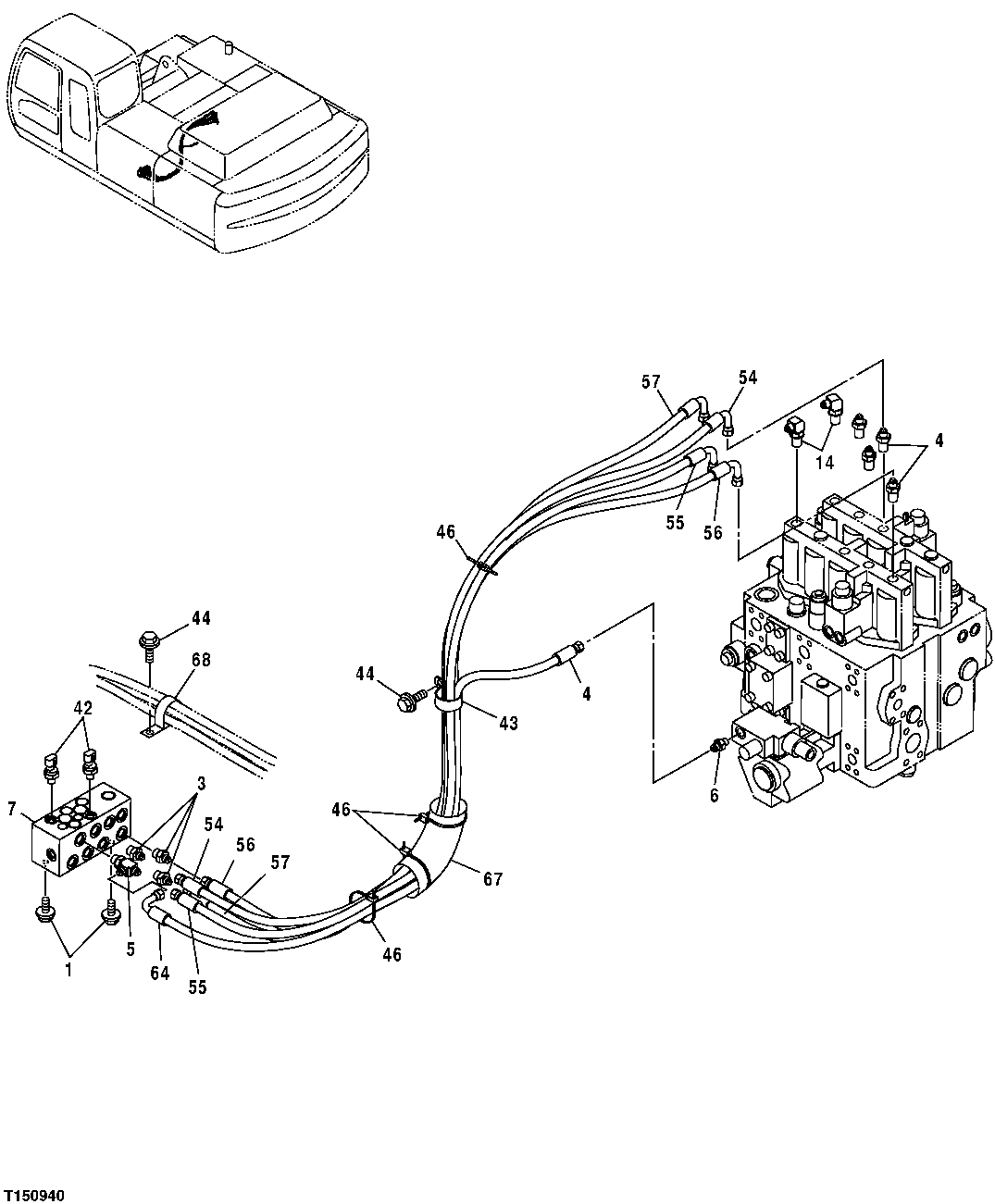

Запчасти John Deere 30CLC 347 - PILOT LINES (FLOW REGULATOR VALVE TO CONTROL VALVE) 3360 HYDRAULIC SYSTEM

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

3

A852133

Adapter Fitting

(SUB FOR P67978)

3шт.

3A

CH11570

O-Ring

1шт.

4

4202422

Adapter Fitting

(SUB FOR TH108440)

4шт.

4A

CH11570

O-Ring

1шт.

5

A852433

Tee Fitting

(SUB FOR THA852433)

1шт.

5A

CH11570

O-Ring

1шт.

6

P67976

Adapter Fitting

1шт.

6A

M800650

Packing

1шт.

7

4445357

Hyd Actuated Control Valve

(SUB FOR TH4445357)

1шт.

14

4208913

Adapter Fitting

(SUB FOR AT126458)

2шт.

14A

CH11570

O-Ring

1шт.

42

4436535

Sensor

(SUB FOR TH4436535)

2шт.

43

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

44

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

46

H77698

Tie Band

4шт.

54

4456548

Hydraulic Hose

(SUB FOR TH4456548)

1шт.

55

4456550

Hydraulic Hose

(SUB FOR TH4456550)

1шт.

56

4456551

Hydraulic Hose

(SUB FOR TH4456551)

1шт.

57

4456552

Hydraulic Hose

(SUB FOR TH4456552)

1шт.

64

4456554

Hydraulic Hose

(SUB FOR TH4456554)

1шт.

67

4219918

Isolator

(SUB FOR TH111416)

1шт.

68

N198631

Clamp

(SUB FOR 4190265)

1шт.
