Запчасти John Deere 30CLC 340 - PILOT LINES AND FILTER AT PUMP 3360 HYDRAULIC SYSTEM

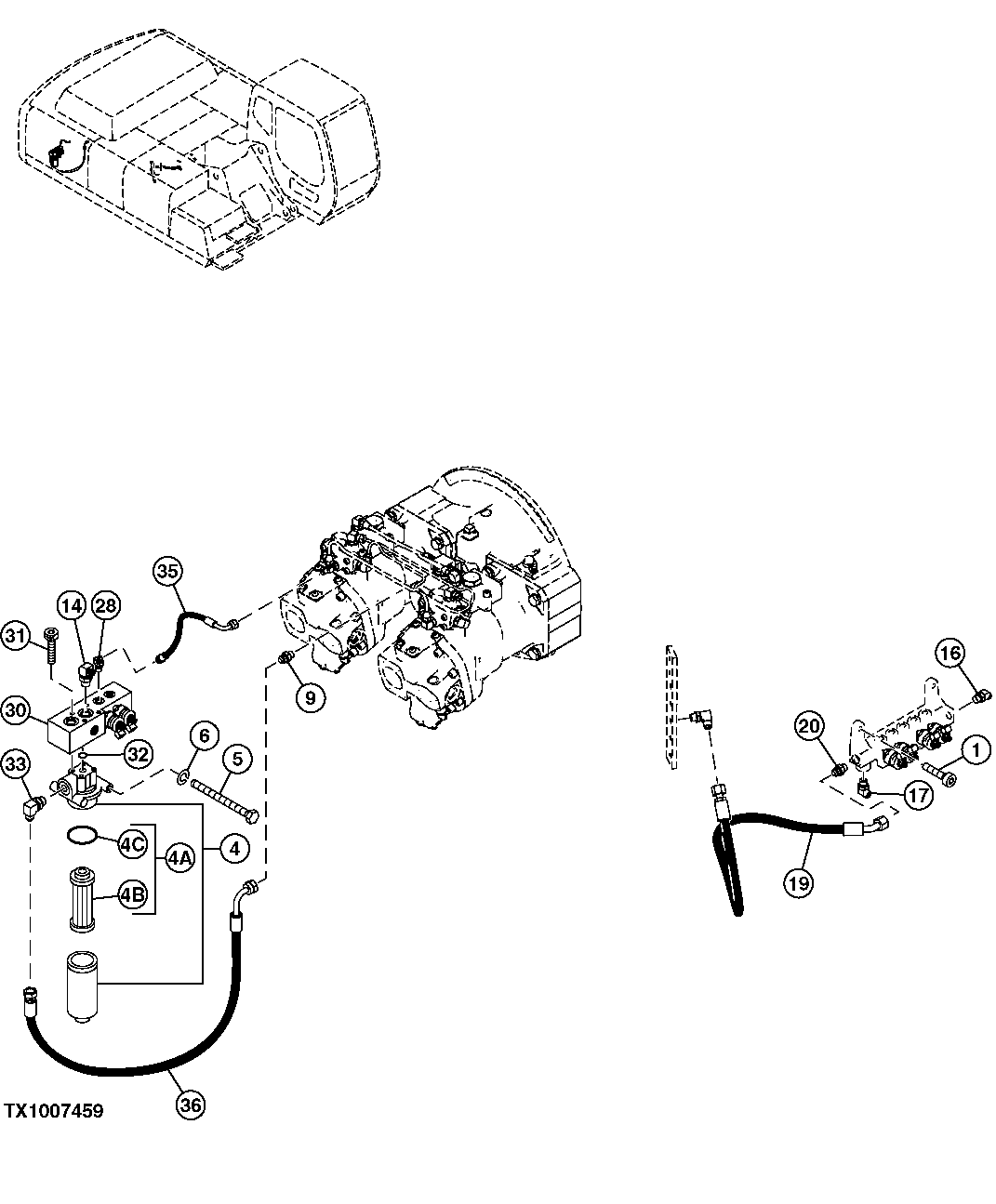

Схема запчастей John Deere 30CLC - 340 - PILOT LINES AND FILTER AT PUMP 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

19M8337

Screw

M10 X 30

2шт.

4

4330227

Filter Head

SUB FOR AT213834

1шт.

4A

AT186554

Filter Element

SUB FOR AT214263

1шт.

4B

Filter Element

TH108404 NOT AVAILABLE

1шт.

4C

TH105683

O-Ring

1шт.

5

19M8343

Cap Screw

M10 X 120

2шт.

6

12M7066

Lock Washer

10 mm

2шт.

9

A852134

Adapter Fitting

1шт.

9A

CH11570

O-Ring

Not Illustrated

1шт.

14

P67992

Elbow Fitting

1шт.

14A

4506418

O-Ring

Not Illustrated

1шт.

16

4190244

Elbow Fitting

SUB FOR THA852233 OR TH106152

1шт.

16A

CH11570

O-Ring

Not Illustrated

1шт.

17

A852234

Elbow Fitting

SUB FOR THA852234

1шт.

17A

CH11570

O-Ring

Not Illustrated

1шт.

19

4405562

Hydraulic Hose

3/4" X 1050 mm (41-1/4") X 3/4" SUB FOR AT250147

1шт.

20

A852134

Adapter Fitting

1шт.

20A

CH11570

O-Ring

Not Illustrated

1шт.

28

THA852222

Elbow Fitting

1шт.

28A

M800650

Packing

Not Illustrated

1шт.

30

9220219

Solenoid Valve

SUB FOR TH4445490, 4445490 OR 9218276

1шт.

31

J780880

Bolt

SUB FOR THJ780880

4шт.

32

4506416

O-Ring

SUB FOR TH102561

1шт.

33

A852344

Elbow Fitting

1шт.

33A

4506418

O-Ring

Not Illustrated SUB FOR U46489

1шт.

35

4618606

Hose

SUB FOR 4453172 OR 4436293

1шт.

36

4413313

Hydraulic Hose

SUB FOR TH4413313

1шт.

37

4436535

Sensor

Rear Pump Control Pressure Not Illustrated

1шт.

Выбрано товаров: 28
