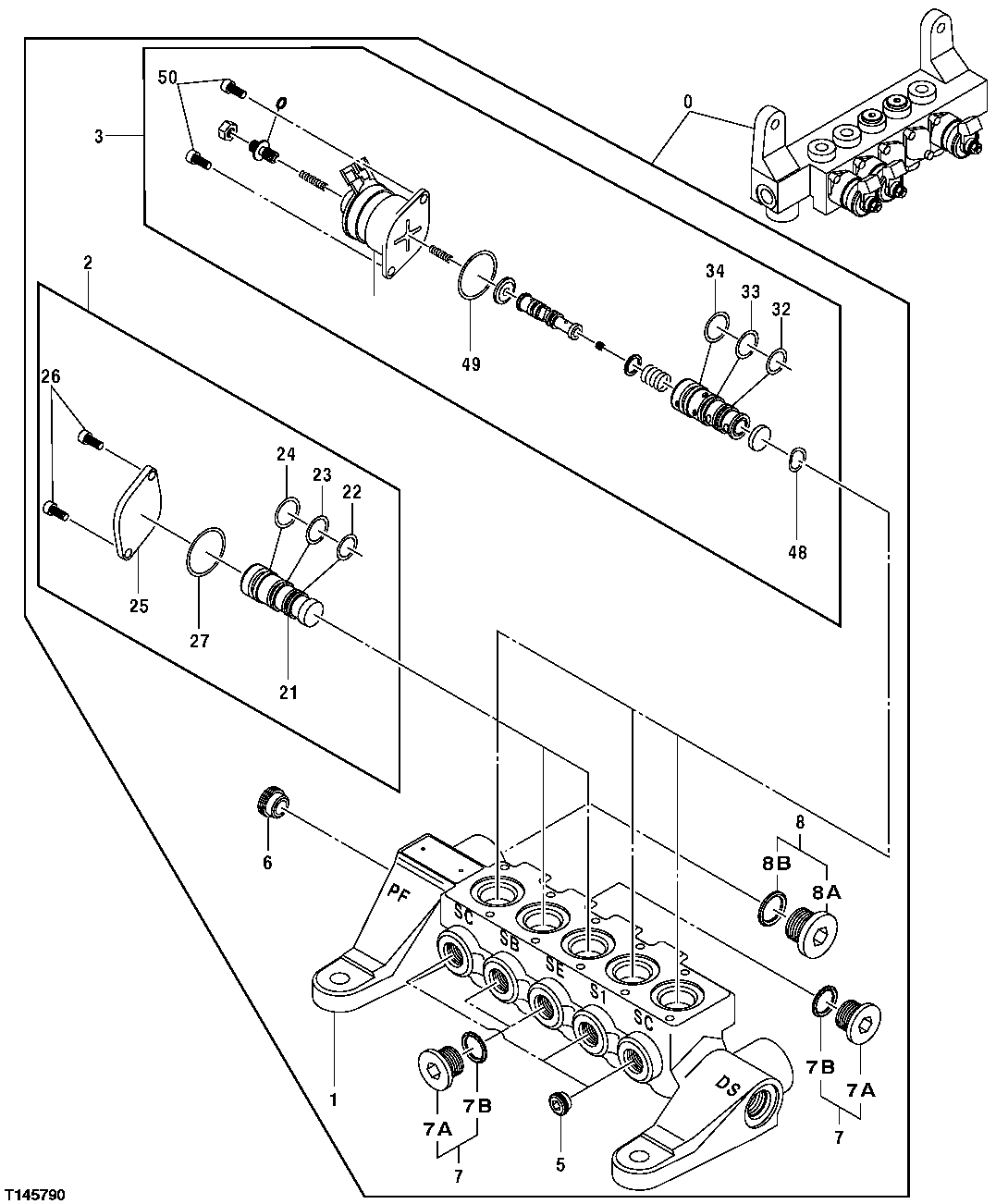

Запчасти John Deere 30CLC 339 - SOLENOID VALVE MANIFOLD 3360 HYDRAULIC SYSTEM

0

4480977

Solenoid Valve

(SUB FOR TH4452247)

1шт.

1

Housing

(NOT AVAILABLE)

2шт.

2

9223892

Sleeve

(SUB FOR AT215828 OR 0671302)

1шт.

3

4455991

Solenoid Valve

(SUB FOR TH4455991)

3шт.

5

9761179

Plug

(SUB FOR TH4455986 OR 4455986)

3шт.

6

4455987

Pipe Plug

(SUB FOR TH4455987)

1шт.

7

Pipe Plug

( TH0709703 NOT AVAILABLE)

2шт.

7A

3097791

Plug

(SUB FOR AT215830 OR 0671304)

1шт.

7B

M800650

Packing

1шт.

8

0670716

Pipe Plug

(SUB FOR TH0670716)

1шт.

8A

Pipe Plug

( TH0823801 NOT AVAILABLE)

1шт.

8B

CH11570

O-Ring

1шт.

21

Sleeve

( AT153907 NOT AVAILABLE)

1шт.

22

4185600

O-Ring

(SUB FOR AT153902)

1шт.

23

R99052

O-Ring

1шт.

24

4163873

O-Ring

(SUB FOR AT153904, 0408411 OR TH106081)

1шт.

25

0671303

Cover

(SUB FOR AT215829)

1шт.

26

0387804

Screw

(SUB FOR AT215661)

2шт.

27

4455989

Seal

(SUB FOR TH4455989)

1шт.

32

4185600

O-Ring

(SUB FOR AT153902)

1шт.

33

R99052

O-Ring

1шт.

34

4163873

O-Ring

(SUB FOR AT153904, 0408411 OR TH106081)

1шт.

48

4455990

Washer

(SUB FOR TH4455990)

1шт.

49

4455989

Seal

(SUB FOR TH4455989)

1шт.

50

0387804

Screw

(SUB FOR AT215661)

2шт.
