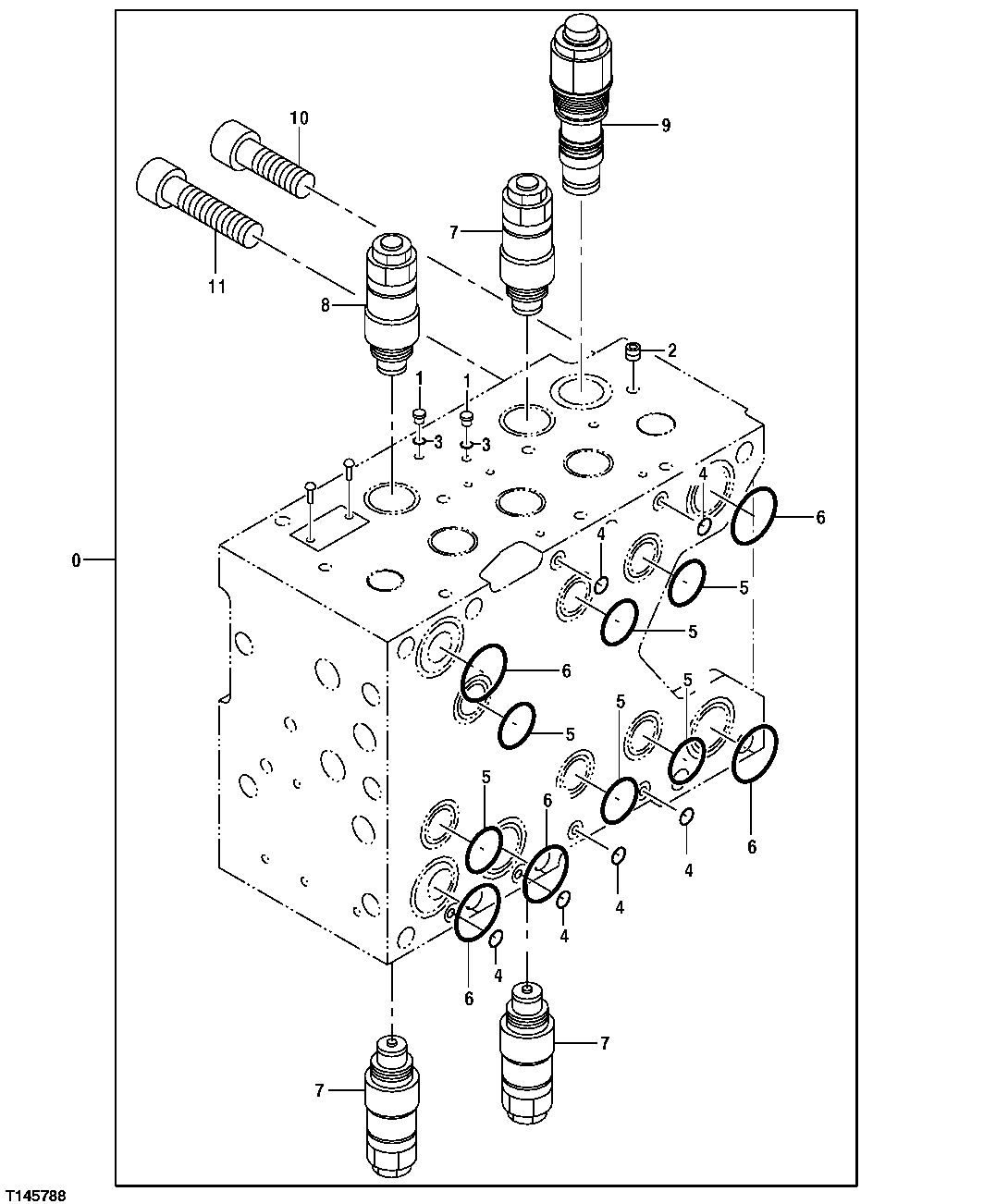

Запчасти John Deere 30CLC 337 - Control Valve Components (Four Spool Side) 3360 HYDRAULIC SYSTEM

0

4433970

Hyd Actuated Control Valve

SUB FOR TH4433970

1шт.

1

0719004

Fitting Plug

SUB FOR AT219523

2шт.

2

0451028

Fitting Plug

SUB FOR AT201622

1шт.

3

4506408

O-Ring

SUB FOR TH101490

2шт.

4

4366519

O-Ring

SUB FOR AT219504

6шт.

5

0719401

O-Ring

SUB FOR AT219564 OR 4S00737

6шт.

6

0719402

O-Ring

SUB FOR AT219565

5шт.

7

0719116

Pressure Relief Valve

SUB FOR AT219547

3шт.

8

0719117

Pressure Relief Valve

SUB FOR AT219548

1шт.

9

4723238

Flow Control Hyd. Valve

SUB FOR 0816502

1шт.

10

0719403

Screw

SUB FOR AT219566

1шт.

11

19M9510

Screw

M14 X 150 SUB FOR AT219567 OR 0719404

8шт.
