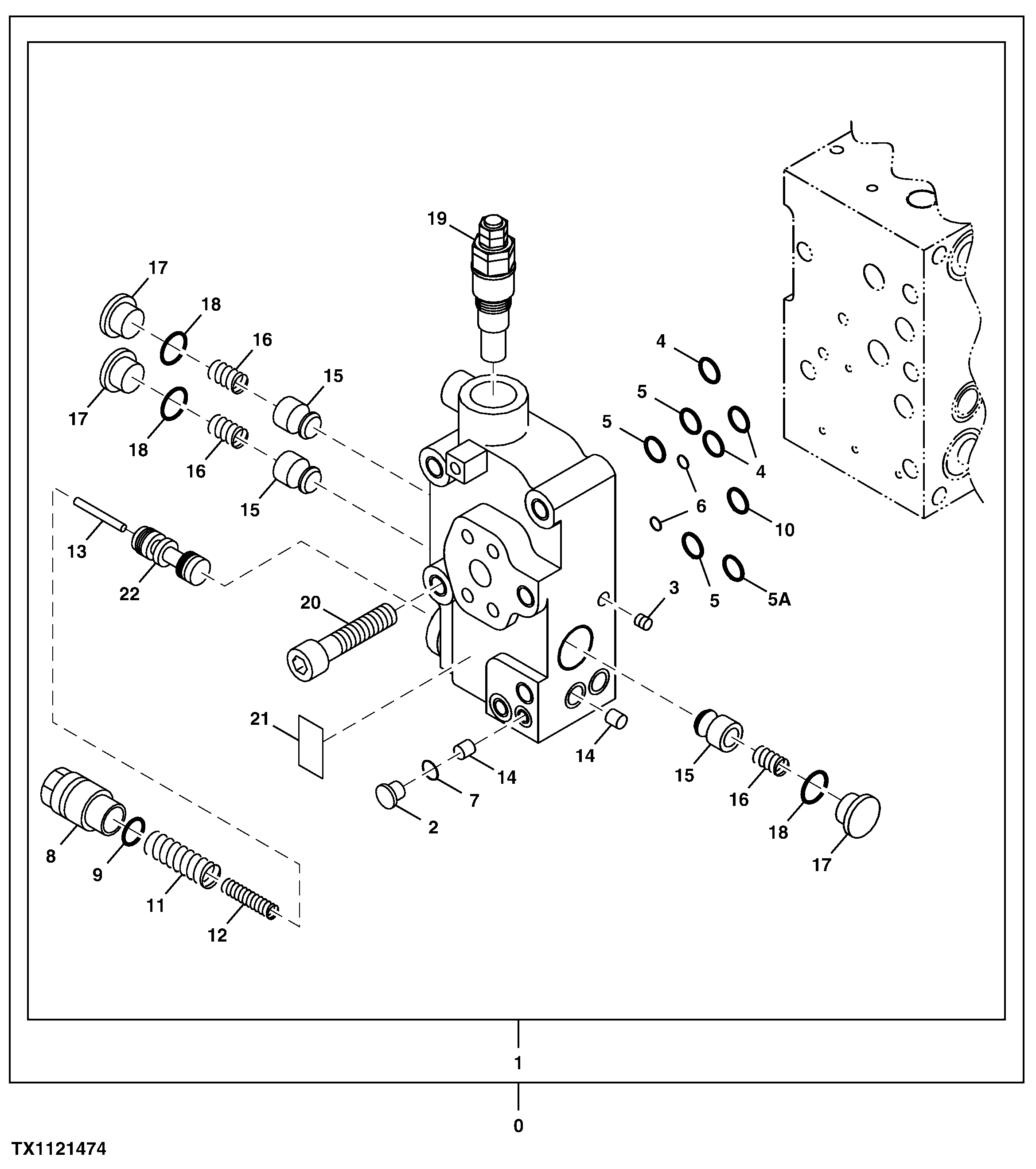

Запчасти John Deere 30CLC 336 - Control Valve Components (System Relief Four Spool Side) 3360 HYDRAULIC SYSTEM

0

4433970

Hyd Actuated Control Valve

SUB FOR TH4433970

1шт.

1

Manifold

0816701 NLA, SUB FOR TH0816701, SUB 0 816703 Units Built Before November 2007

1шт.

0816703

Manifold

Units Built November 2007 and After

1шт.

2

0719004

Fitting Plug

SUB FOR AT219523

1шт.

3

15H560

Pipe Plug

1/16"

1шт.

4

4366544

O-Ring

SUB FOR AT219503

3шт.

5

4366521

O-Ring

SUB FOR 0443803

3шт.

5A

4366521

O-Ring

1шт.

4355080

O-Ring

SUB FOR 0448702, 4153099 OR 0818011

1шт.

6

4366519

O-Ring

SUB FOR AT219504

2шт.

7

4506408

O-Ring

SUB FOR TH101490

1шт.

8

0719302

Set Screw

SUB FOR AT219556

1шт.

9

A811025

O-Ring

SUB FOR TH103950

1шт.

10

0682503

O-Ring

SUB FOR AT219505 OR 4S00730

1шт.

11

0719303

Spring

SUB FOR AT219557

1шт.

12

0719304

Spring

SUB FOR AT219558

1шт.

13

0719305

Pin

SUB FOR AT219559

1шт.

14

0719306

Orifice

SUB FOR AT219560

2шт.

15

0816702

Poppet

SUB FOR TH0816702

3шт.

16

0719110

Spring

SUB FOR AT219541

3шт.

17

0719114

Fitting Plug

SUB FOR AT219545

3шт.

18

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

3шт.

19

0719308

Pressure Relief Valve

SUB FOR AT219562

1шт.

20

0719309

Screw

SUB FOR AT219563

5шт.

21

TH0628615

Plate

NLA

1шт.

22

0719310

Spool

1шт.
