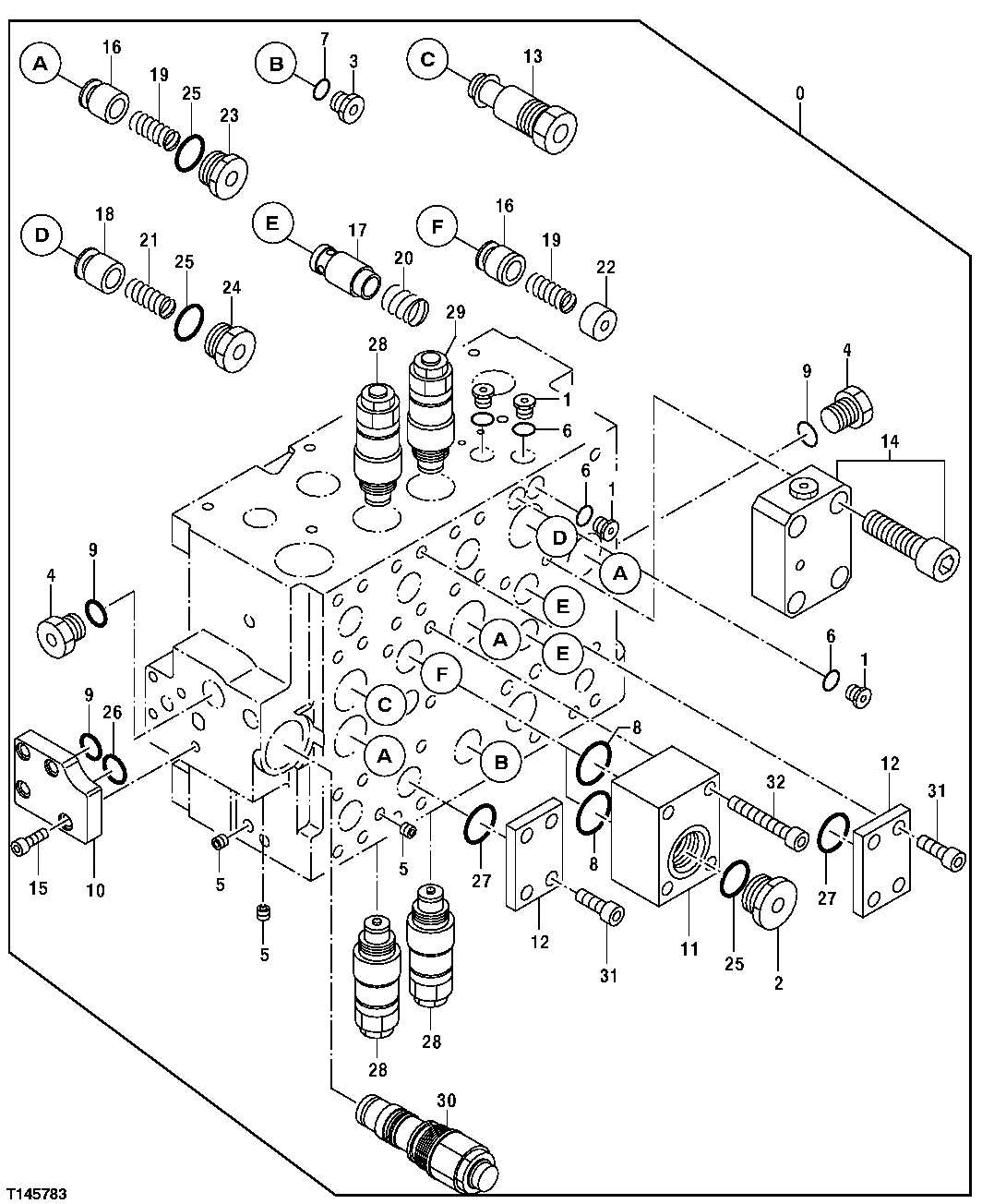

Запчасти John Deere 30CLC 334 - CONTROL VALVE COMPONENTS (FIVE SPOOL SIDE) 3360 HYDRAULIC SYSTEM

0

4433970

Hyd Actuated Control Valve

(SUB FOR TH4433970)

1шт.

1

0719004

Fitting Plug

(SUB FOR AT219523)

4шт.

2

0697911

Fitting Plug

(SUB FOR AT219506)

1шт.

3

AT219507

Fitting Plug

1шт.

4

0719101

Fitting Plug

(SUB FOR AT219532)

2шт.

5

0451028

Fitting Plug

(SUB FOR AT201622)

3шт.

6

4506408

O-Ring

(SUB FOR TH101490)

4шт.

7

CH11570

O-Ring

1шт.

8

4366544

O-Ring

(SUB FOR AT219503)

2шт.

9

4506418

O-Ring

3шт.

10

0719102

End Plate

(SUB FOR AT219533)

1шт.

11

0719103

Cover

(SUB FOR AT219534)

1шт.

12

0719104

Cover

(SUB FOR AT219535)

2шт.

13

0719105

Pressure Relief Valve

(SUB FOR AT219536)

1шт.

14

0816503

Flange

(SUB FOR TH0816501 OR 0816501)

1шт.

15

19M8439

Screw

M8 X 25 (SUB FOR 19M7657)

4шт.

16

0719107

Poppet

(SUB FOR AT219538)

4шт.

17

0719108

Poppet

(SUB FOR AT219539)

2шт.

18

0719109

Poppet

(SUB FOR AT219540)

1шт.

19

0719110

Spring

(SUB FOR AT219541)

4шт.

20

0719111

Spring

(SUB FOR AT219542)

2шт.

21

0719112

Spring

(SUB FOR AT219543)

1шт.

22

0719113

Spacer

(SUB FOR AT219544)

1шт.

23

0719114

Fitting Plug

(SUB FOR AT219545)

3шт.

24

0719115

Fitting Plug

(SUB FOR AT219546)

1шт.

25

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

5шт.

26

985099

O-Ring

(SUB FOR TH101479)

1шт.

27

A811030

O-Ring

(SUB FOR TH101300)

2шт.

28

0719116

Pressure Relief Valve

(SUB FOR AT219547)

3шт.

29

0719117

Pressure Relief Valve

(SUB FOR AT219548)

1шт.

30

4723238

Flow Control Hyd. Valve

(SUB FOR 0816502)

1шт.

31

4515013

Screw

(SUB FOR AT250151)

8шт.

32

0237903

Screw

(SUB FOR AT219501)

4шт.
