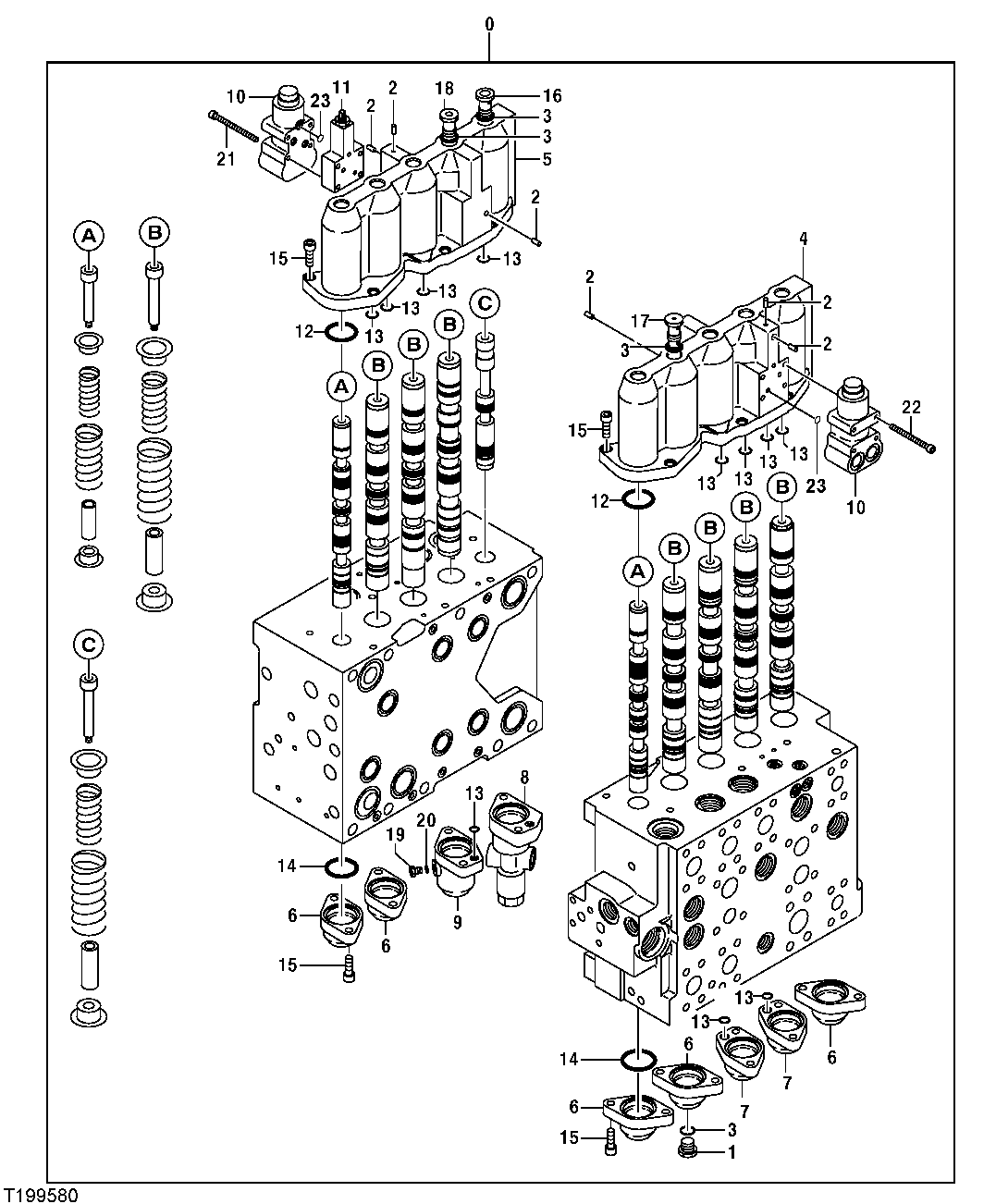

Запчасти John Deere 30CLC 332 - CONTROL VALVE COMPONENTS (FOUR AND FIVE SPOOL SIDES) 3360 HYDRAULIC SYSTEM

0

4433970

Hyd Actuated Control Valve

(SUB FOR TH4433970)

1шт.

1

AT219507

Fitting Plug

1шт.

2

15H560

Pipe Plug

1/16"

6шт.

3

CH11570

O-Ring

6шт.

4

TH0718902

Cover

(SUB FOR AT219508)

1шт.

5

AT219509

Cover

1шт.

6

AT219510

Cover

5шт.

7

AT219511

Cover

2шт.

8

0718906

Cover

(SUB FOR AT219512)

1шт.

9

0718907

Cover

(SUB FOR AT219513)

1шт.

10

0816301

Flow Control Hyd. Valve

(SUB FOR TH0816301)

2шт.

11

0718909

Plate

(SUB FOR AT219515)

1шт.

12

A811055

O-Ring

(SUB FOR TH100110)

10шт.

13

CH11568

Packing

11шт.

14

A811040

O-Ring

8шт.

15

19M8439

Screw

M8 X 25 (SUB FOR 19M7657)

32шт.

16

0718910

Fitting Plug

(SUB FOR AT219516)

1шт.

17

0718911

Fitting Plug

(SUB FOR AT219517)

1шт.

18

0718912

Fitting Plug

(SUB FOR AT219518)

1шт.

19

0718913

Fitting Plug

(SUB FOR AT219519)

1шт.

20

E56086

O-Ring

1шт.

21

0384401

Screw

(SUB FOR AT219502)

4шт.

22

19M8541

Screw

M6 X 50

4шт.

23

CH11568

Packing

(SUB FOR 0232126, 0389202, 0389319, 038941 9, 0340224007, 4034659, 4226445 OR 4506407)

9шт.
