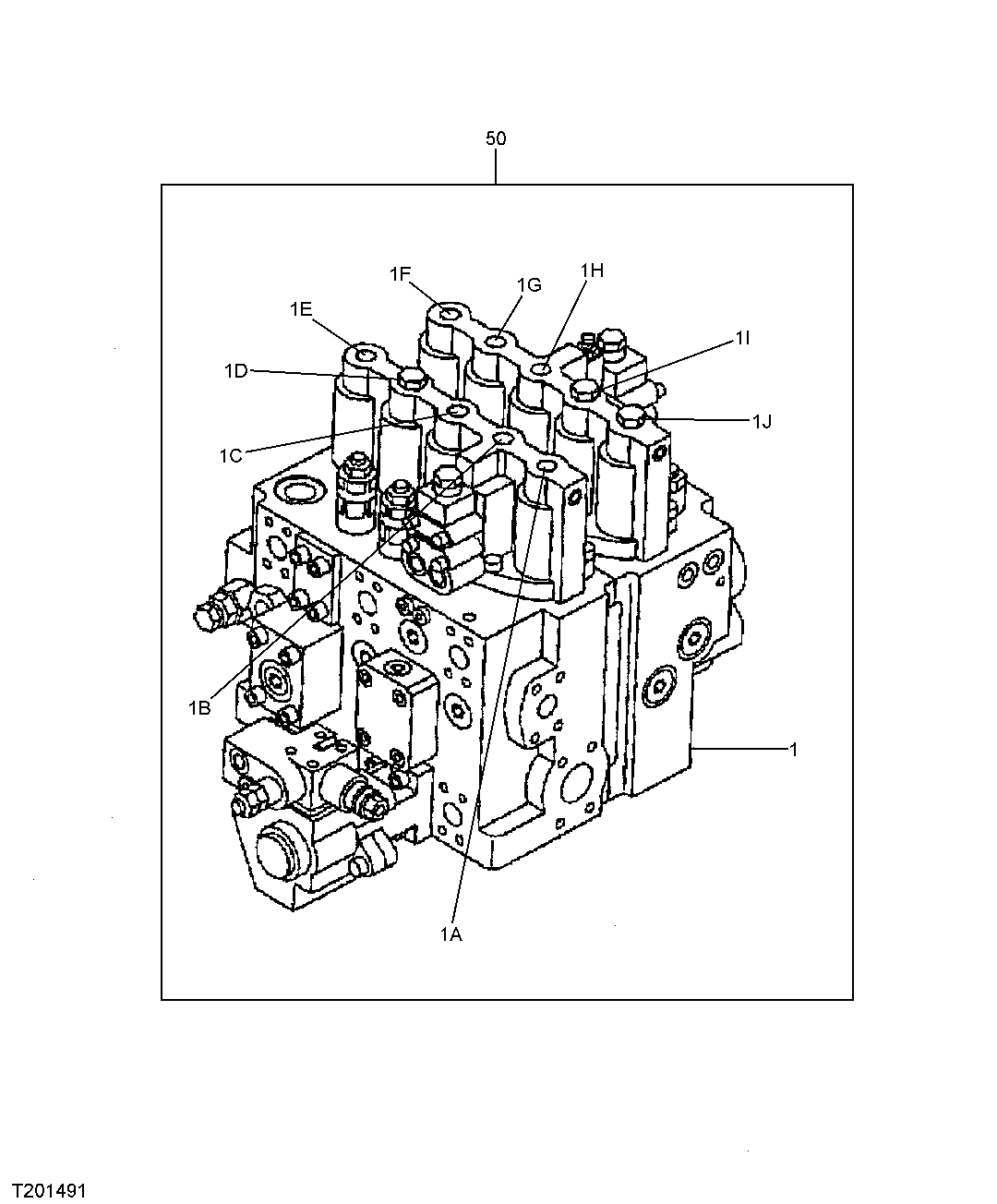

Запчасти John Deere 30CLC 331 - CONTROL VALVE, SUPER LONG FRONT (330CLC) 3360 HYDRAULIC SYSTEM

1

Control Valve

( 4433970 NOT INCLUDED IN SUPER LONG FRONT FIELD KIT)

1шт.

1A

Section

(SWING)

1шт.

1B

Section

(ARM I)

1шт.

1C

Section

(BOOM II)

1шт.

1D

Section

(AUXILIARY)

1шт.

1E

Section

(LEFT PROPEL)

1шт.

1F

Section

(RIGHT PROPEL)

1шт.

1G

Section

(BUCKET)

1шт.

1H

Section

(BOOM I)

1шт.

1I

Section

(ARM II)

1шт.

1J

Section

(BYPASS SHUTOFF VALVE)

1шт.

1K

4464604

Spool Valve

(ARM 1 SPOOL) (NOT ILLUSTRATED)

1шт.

1L

4464605

Spool Valve

(ARM II SPOOL) (NOT ILLUSTRATED)

1шт.

1M

4464606

Spool Valve

(BOOM I SPOOL) (NOT ILLUSTRATED)

1шт.

1N

4464607

Pressure Relief Valve

(ARM RELIEF VALVE) (NOT ILLUSTRATED)

1шт.

1P

4464608

Pressure Relief Valve

(BUCKET RELIEF VALVE) (NOT ILLUSTRATED)

1шт.

50

Kit

( AT314804 NLA) Super Long Front

1шт.
