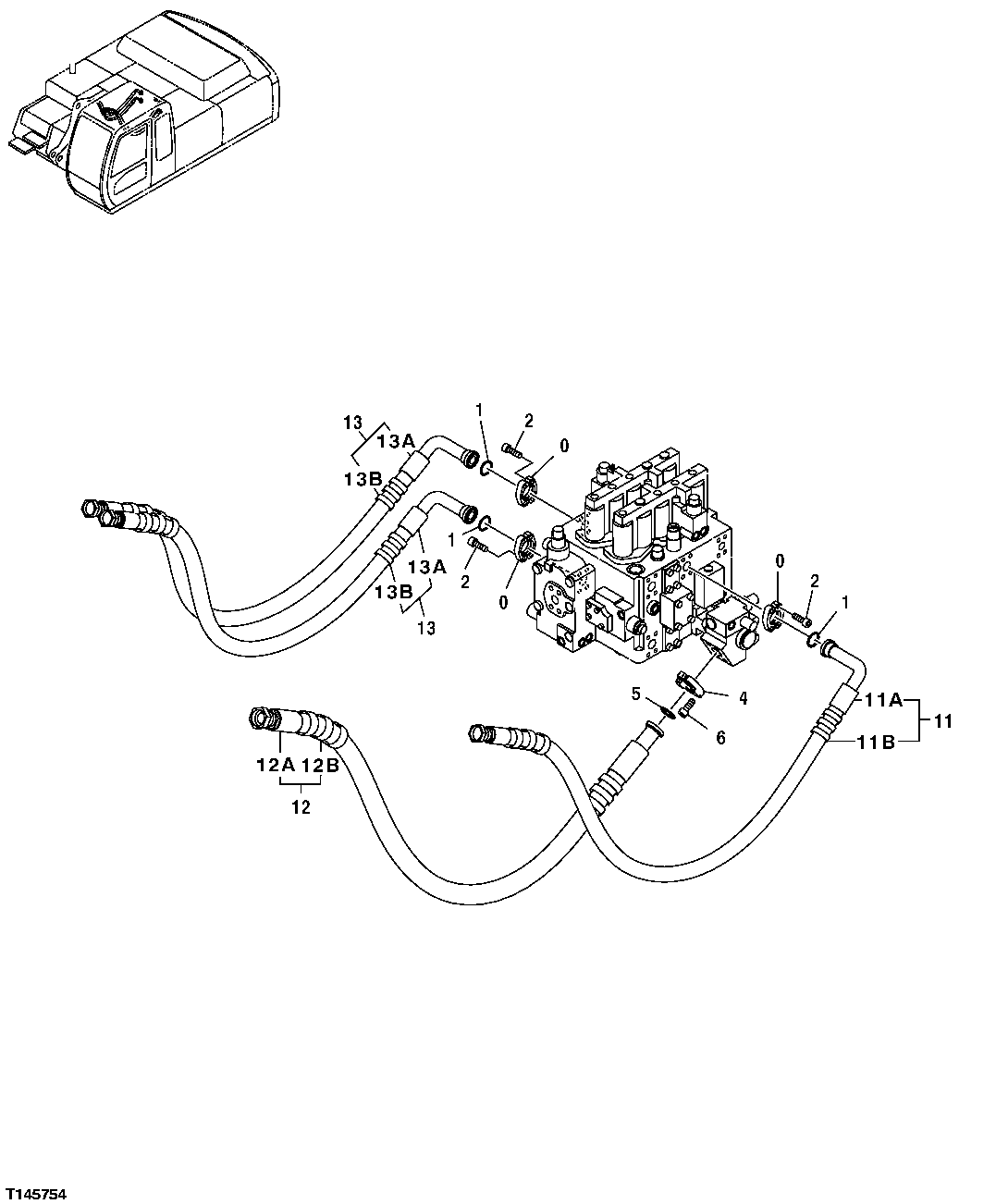

Запчасти John Deere 30CLC 325 - ARM BRACKET LINES 3360 HYDRAULIC SYSTEM

0

H61354

Flange Fitting

6шт.

1

T78313

O-Ring

3шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

12шт.

4

R29867

Flange Fitting

2шт.

5

T72216

O-Ring

1шт.

6

19M8169

Screw

M12 X 30 (SUB FOR J781230)

4шт.

11

Hydraulic Hose

( 9194287 NOT AVAILABLE)

1шт.

11A

4402781

Hydraulic Hose

(SUB FOR TH4402781)

1шт.

11B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

3шт.

12

Hydraulic Hose

( 9196720 NOT AVAILABLE)

1шт.

12A

4439932

Hydraulic Hose

(SUB FOR TH4439932)

1шт.

12B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

13

Hydraulic Hose

( 9194288 NOT AVAILABLE)

2шт.

13A

4439931

Hydraulic Hose

(SUB FOR TH4439931)

1шт.

13B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.
