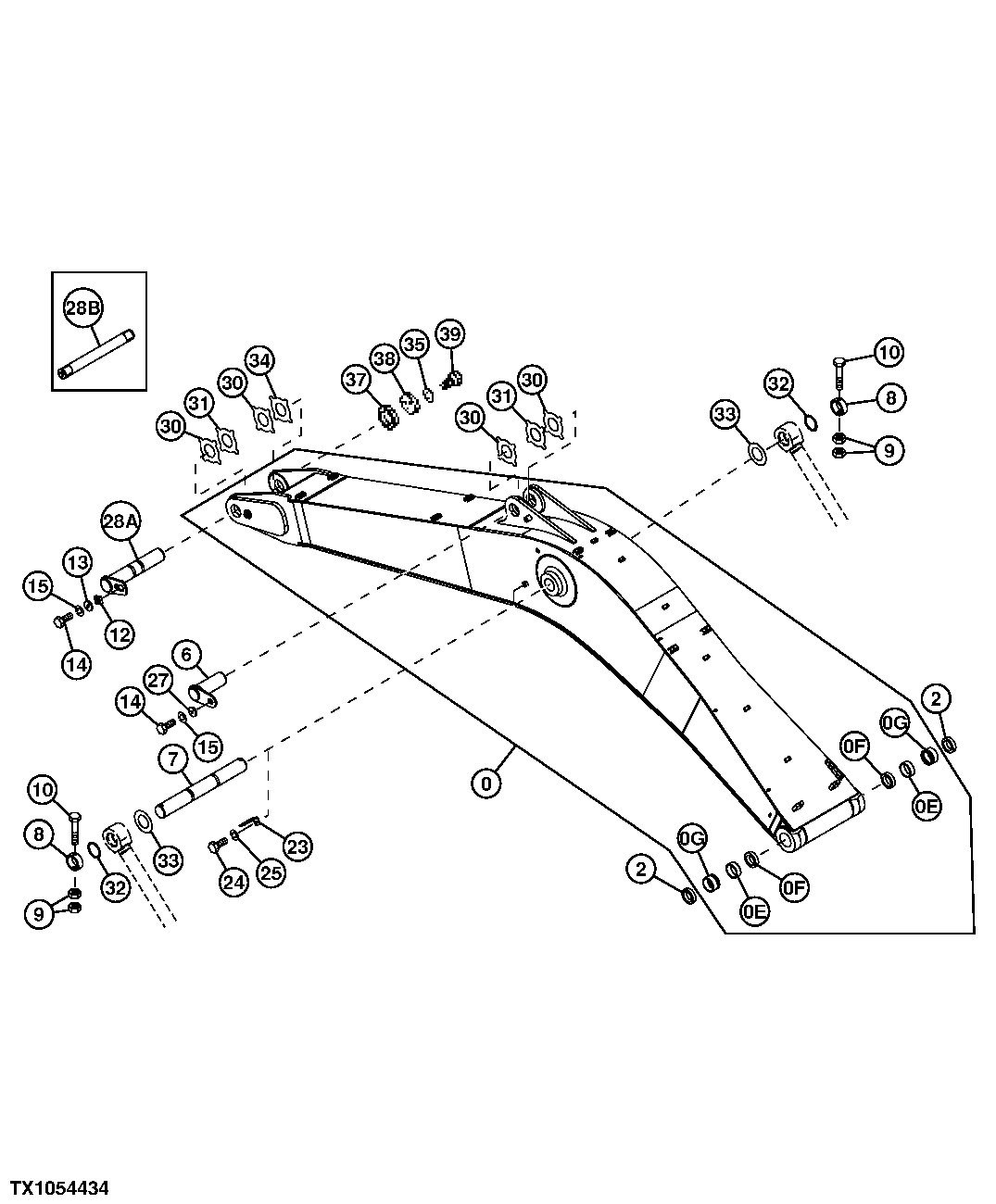

Запчасти John Deere 30CLC 318 - BOOM 3344 BOOM

0

8080775

Excavator Boom

SUB FOR TH8080775

1шт.

0E

4381855

Bushing

SUB FOR AT250026

2шт.

0F

TH103200

Seal

2шт.

0G

4443884

Bushing

SUB FOR TH4443884

2шт.

2

TH103200

Seal

2шт.

6

8080628

Pin Fastener

SUB FOR TH8080628

1шт.

7

AT219636

Pin

1шт.

8

4662435

Stop

SUB FOR AT131769 OR 4205110

2шт.

9

14M7277

Nut

M20

4шт.

10

4435584

Pin Fastener

SUB FOR TH4435584

2шт.

12

4424425

Spacer

Units Built Before Decemb er 2002 SUB FOR TH4424425

1шт.

4611688

Block Clamp

Units Built After December 2002

1шт.

13

4426128

Washer

Units Built Before Decemb er 2002 SUB FOR TH4426128

1шт.

4611733

Plate

Units Built After December 2002

1шт.

14

T116332

Bolt

Units Built Before December 2002

2шт.

J922245

Bolt

Units Built After December 2002

2шт.

15

J257218

Lock Washer

Units Built Before Decem ber 2002 SUB FOR AT250277

2шт.

J257222

Lock Washer

Units Built After December 2002

2шт.

23

4224631

Angle

SUB FOR TH111685

1шт.

23A

4611731

Stop

1шт.

24

J901425

Cap Screw

SUB FOR TH104071

1шт.

25

12H317

Lock Washer

9/16"

1шт.

27

4441471

Plate

1шт.

28A

Pin Fastener

Units Built Before December 2002 ALSO ORDER 8092014, 8090472 NLA

1шт.

8092014

Pin

Units Built After December 2002 SUB FOR 8090472 OR 8080995, ALSO ORDER 4611731, 4611688, 4611733, J257222, J922245, 461 1648, 4611642, (3) J257218 AND (3) J9218 50

1шт.

4611731

Pin Fastener

1шт.

28B

AT361203

Pin

Expander Pin Option

1шт.

T248629

Sleeve

2шт.

30

FF110031

Shim

SUB FOR 4445635 AND 4469095

4шт.

31

FF110033

Shim

SUB FOR 4445636 AND 4469097

2шт.

32

4445637

Plate

SUB FOR TH4445637

2шт.

33

4450015

Plate

SUB FOR TH4450015

2шт.

34

FF110032

Shim

SUB FOR 4460373 AND 4469096

1шт.

35

J257218

Lock Washer

Units Built After December 2002

2шт.

37

4611648

Spacer

Units Built After December 2002

1шт.

38

4611642

Washer

Units Built After December 2002

1шт.

39

J921850

Bolt

Units Built After December 2002

3шт.
