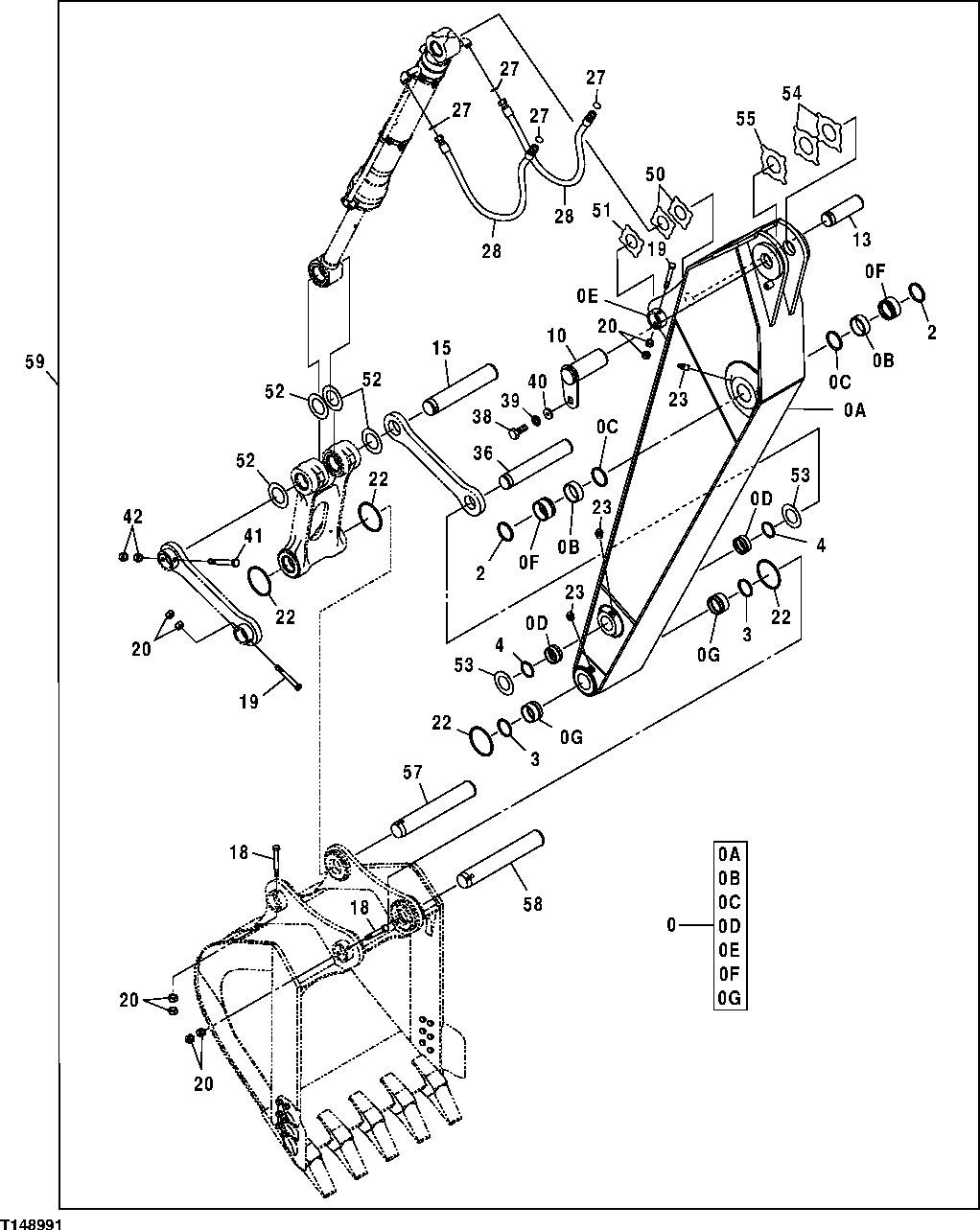

Запчасти John Deere 30CLC 311 - STANDARD ARM 3.2M 3340 EXCAVATOR FRAMES

0

7038863

Arm

(SUB FOR TH7038863)

1шт.

0A

5007223

Arm

( TH5007223 NLA)

1шт.

0B

4381855

Bushing

(SUB FOR AT250026)

2шт.

0C

TH103200

Seal

2шт.

0D

4438771

Bushing

(SUB FOR TH4438771)

2шт.

0E

TH102409

Bushing

1шт.

0F

4443884

Bushing

(SUB FOR TH4443884)

2шт.

0G

4443885

Bushing

(SUB FOR TH4443885)

2шт.

0H

8080587

Boss

Replacement Arm End Parts Not Illustrated

1шт.

2

TH103200

Seal

2шт.

3

TH102411

Seal

2шт.

4

TH102445

Seal

2шт.

10

8080908

Pin Fastener

(SUB FOR TH8080908)

1шт.

13

AT219638

Pin Fastener

1шт.

15

3092037

Pin Fastener

(SUB FOR TH3092037)

1шт.

18

4435127

Pin Fastener

(SUB FOR TH4435127)

2шт.

19

4435126

Pin Fastener

(SUB FOR TH4435126)

2шт.

20

14M7277

Nut

M20 (SUB FOR 14M7144)

8шт.

22

4100180

O-Ring

(STANDARD O-RING)

4шт.

AT349467

Seal

(SPLIT O-RING)

4шт.

23

TH100074

Lubrication Fitting

6шт.

27

T76938

O-Ring

4шт.

28

4396299

Hydraulic Hose

36.5252" X 1450 mm (57") X 36.5252" (SUB FOR AT250105)

2шт.

36

3089968

Pin Fastener

(SUB FOR TH3089968)

1шт.

38

T116332

Bolt

M18 X 40 (SUB FOR THJ921840)

1шт.

39

J257218

Lock Washer

(SUB FOR AT250277)

1шт.

40

4441471

Plate

(SUB FOR TH4441471)

1шт.

41

4435128

Pin Fastener

(SUB FOR TH4435128)

1шт.

42

R114125

Nut

(SUB FOR THJ950022 OR J950022)

2шт.

50

4470743

Thrust Washer

(SUB FOR 4444284)

2шт.

51

4444285

Thrust Washer

(SUB FOR TH4444285)

1шт.

52

4450014

Plate

(SUB FOR TH4450014)

4шт.

53

4476062

Thrust Washer

(SUB FOR 4450013)

2шт.

54

FF110031

Shim

(SUB FOR 4445635 AND 4469095)

2шт.

55

FF110033

Shim

(SUB FOR 4445636 AND 4469097)

1шт.

57

3090418

Pin Fastener

(SUB FOR TH3090418)

1шт.

58

3090417

Pin Fastener

(SUB FOR TH3090417)

1шт.

59

AT196052

Arm

WHOLE GOODS (INCLUDES STANDARD A RM, BUCKET CYLINDER, HOSES AND LI NKAGE) (DOES NOT INCLUDE BUCKET)

1шт.
