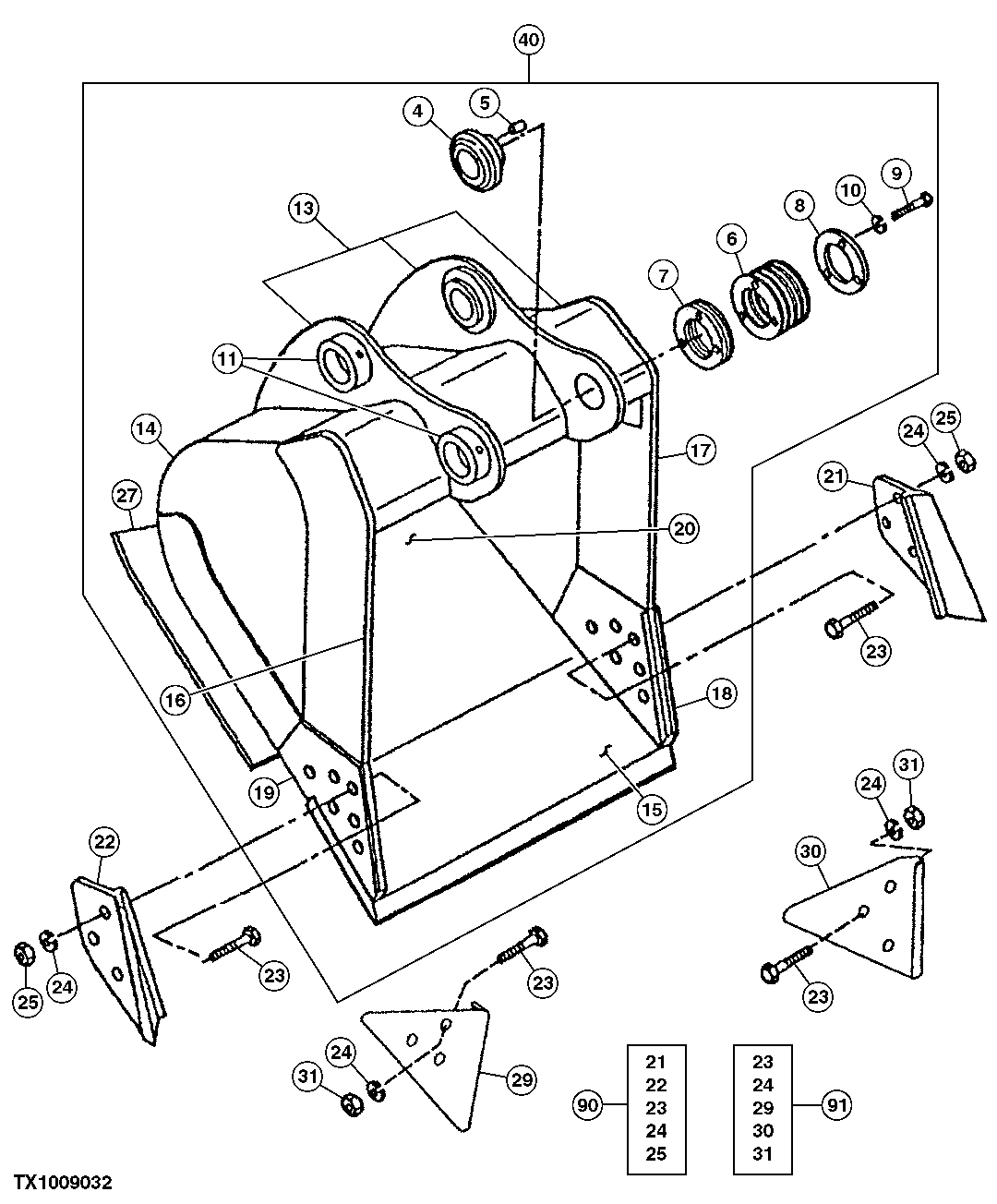

Запчасти John Deere 30CLC 281 - SEVERE DUTY PLATE LIP BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

1шт.

6

4143524

Washer

(SUB FOR TH103235)

6шт.

7

4143525

Shim

(SUB FOR TH103236)

1шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

( TH103198 NLA)

2шт.

13

C606071

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

305443

Plate

(A) (RH/LH)

2шт.

15

AT131096

Cutting Edge

(CTL)

ARшт.

16

301025

Vertical Cutter

(A) (UPPER) (RH)

1шт.

17

301026

Vertical Cutter

(A) (UPPER) (LH)

1шт.

18

305445

Vertical Cutter

(A) (LH) Insert

1шт.

19

305444

Vertical Cutter

(A) (RH) Insert

1шт.

20

605585

Moldboard

(A) (42 INCH)

1шт.

605586

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(42/48 INCH) Bucket (SUB AT131086)

1шт.

Cutting Edge

(30/36 INCH) Bucket (SUB AT131085)

1шт.

22

Cutting Edge

(42/48 INCH) Bucket (SUB AT131086)

1шт.

Cutting Edge

(30/36 INCH) Bucket (SUB AT131085)

1шт.

23

09H1772

Bolt

7/8" X 3-1/2" (42/48 INCH) Bucket

6шт.

09H1771

Bolt

7/8" X 3" (30/36 INCH) Bucket

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

605591

Bar

(A) (USE WITH 42 INCH) Bucket

1шт.

605592

Bar

(A) (USE WITH 48 INCH) Bucket

1шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

1шт.

40

Excavator Bucket

(B) ( AT167301 NLA) (3 0 INCH/1.26 CUBIC YARD)

1шт.

Excavator Bucket

(B) ( AT167302 NLA) (3 6 INCH/1.56 CUBIC YARD)

1шт.

Excavator Bucket

(B) ( AT163670 NLA) (4 8 INCH/2.15 CUBIC YARD)

1шт.

90

Kit

( AT131085 NLA) Side Cutter Kit

1шт.

91

Kit

( AT167876 NLA) Edge Protector

1шт.

Kit

( AT167878 NLA)

1шт.
