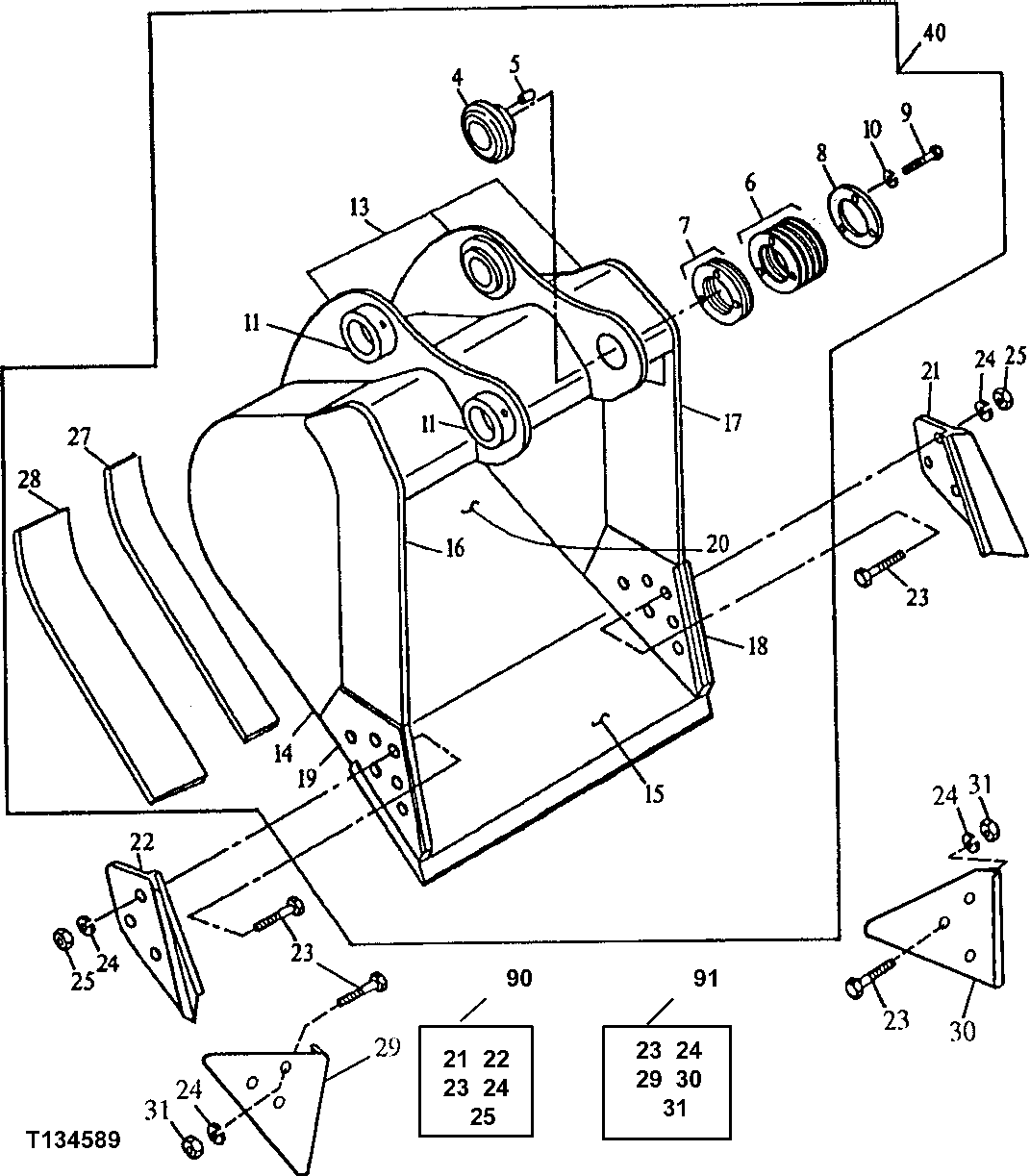

Запчасти John Deere 30CLC 276 - HEAVY DUTY BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

1шт.

6

4143524

Washer

1 MM (SUB FOR TH103235)

6шт.

7

4143525

Shim

(SUB FOR TH103236)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

( TH103198 NLA)

2шт.

13

C606071

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

306995

Plate

(A) (RH/LH) (36/54 INCH) Bucket

2шт.

304578

Plate

(A) (RH/LH) (42/48 INCH) Bucket

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300283

Vertical Cutter

(A) (RH UPPER) (36/54 INCH) Bucket

1шт.

301025

Vertical Cutter

(A) (RH UPPER) (42/48 INCH) Bucket

1шт.

17

300284

Vertical Cutter

(A) (LH UPPER) (36/54 INCH) Bucket

1шт.

301026

Vertical Cutter

(A) (LH UPPER) (42/48 INCH) Bucket

1шт.

18

304568

Vertical Cutter

(A) (LH) (36/54 INCH) Bucket Insert

1шт.

304577

Vertical Cutter

(A) (LH) (42/48 INCH) Bucket Insert

1шт.

19

304567

Vertical Cutter

(A) (RH) (36/54 INCH) Bucket Insert

1шт.

304576

Vertical Cutter

(A) (RH) (42/48 INCH) Bucket Insert

1шт.
