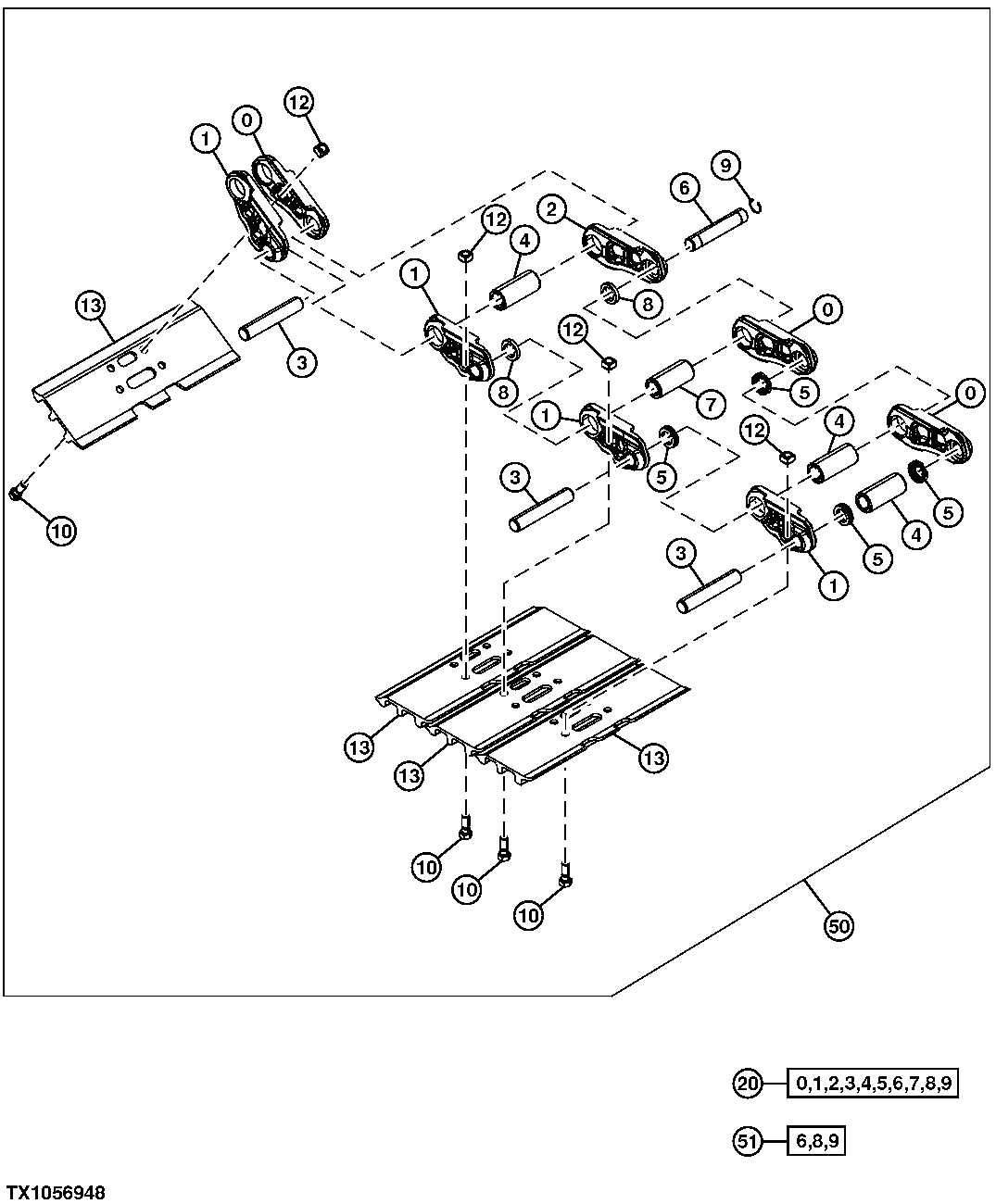

Запчасти John Deere 30CLC 17 - REPLACEMENT TRACK CHAINS AND SHOES 0130 TRACK SYSTEMS

0

T210798

Track Link

RH; SUB FOR 0005253R

47шт.

1

0005254R

Track Link

LH

48шт.

2

4632763R

Master Track Link

SUB FOR T210806

1шт.

3

FFSB112368

Pin Fastener

SUB FOR 4378891

47шт.

4

T210808

Track Bushing

SUB FOR 3077928

47шт.

5

FFSB112367

Seal

SUB FOR 4378892

94шт.

6

T210811

Master Track Pin

Master Track Pin SUB FOR 3077929

1шт.

7

T210809

Master Track Bushing

Master Track Bushing SUB FOR 3077930

1шт.

8

FFSB112370

Spacer

Master Track Seal SUB FOR 4378893

2шт.

9

T238670

Snap Ring

SUB FOR 4649624R

1шт.

10

T210807

Track Bolt

SUB FOR 3095745

192шт.

12

T210814

Nut

SUB FOR 3081344

192шт.

13

T210815

Triple Bar Shoe

600MM SUB FOR 2040403

48шт.

FFSB108844

Triple Bar Shoe

800MM SUB FOR 2042033

1шт.

20

9251026R

Track Chain W/O Shoes

SUB FOR AT314410

1шт.

50

9251025R

Track Assembly With Shoes

600MM SUB FOR AT314416

1шт.

9258059R

Track Assembly With Shoes

800MM SUB FOR AT314418

1шт.

AT362047

Track Assembly With Shoes

SUB FOR AT314417, 700 MM

1шт.

AT362048

Track Assembly With Shoes

SUB FOR AT314419, 900 MM

1шт.

51

AT362049

Master Track Pin

SUB FOR AT314577

1шт.
