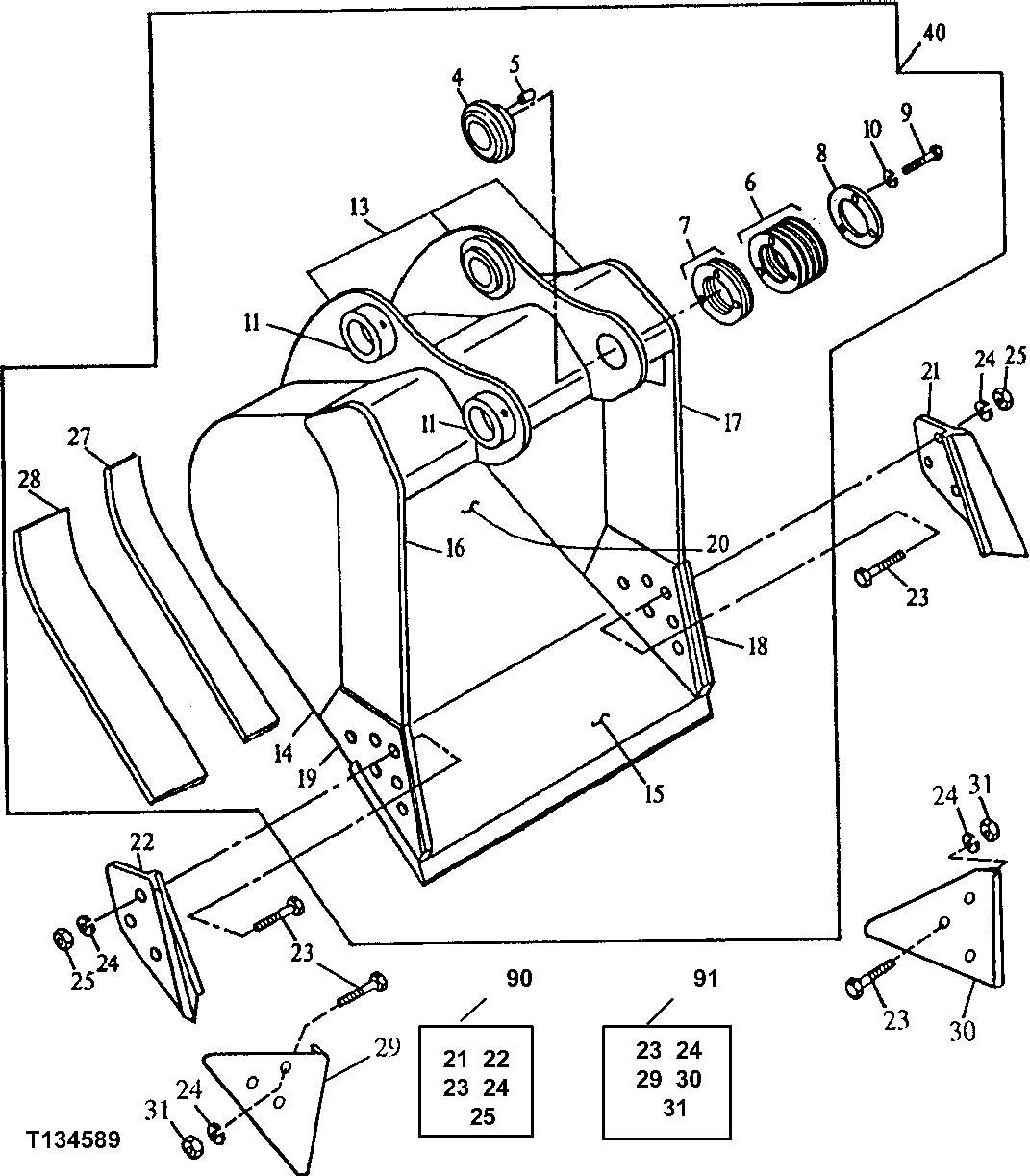

Запчасти John Deere 30CLC 270 - GENERAL PURPOSE BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

1шт.

6

4143524

Washer

1 MM (SUB FOR TH103235)

6шт.

7

4143525

Shim

(SUB FOR TH103236)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

( TH103198 NLA)

2шт.

13

C606071

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304578

Plate

(A) (RH/LH)

2шт.

15

AT131090

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300642

Vertical Cutter

(A) (UPPER RH)

1шт.

17

300643

Vertical Cutter

(A) (UPPER LH)

1шт.

18

304568

Vertical Cutter

(A) (LH) Insert

1шт.

19

304567

Vertical Cutter

(A) (RH) Insert

1шт.

20

600361

Moldboard

(A) (30 INCH)

1шт.

600362

Moldboard

(A) (36 INCH)

1шт.

600363

Moldboard

(A) (42 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300645

Bar

(A) (INNER WEAR)

2шт.

28

307451

Bar

(A) (OUTER WEAR)

2шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

(B) (30 INCH/1.20 CUBI C YARD) ( AT167290 NLA)

1шт.

Excavator Bucket

(B) (36 INCH/1.48 CUBI C YARD) ( AT167291 NLA)

1шт.

Excavator Bucket

(B) (42 INCH/1.75 CUBI C YARD) ( AT167292 NLA)

1шт.

90

Kit

( AT131085 NLA) (SIDE CUTTER KIT)

1шт.

91

Kit

( AT167876 NLA) (EDGE PROTECTOR)

1шт.
