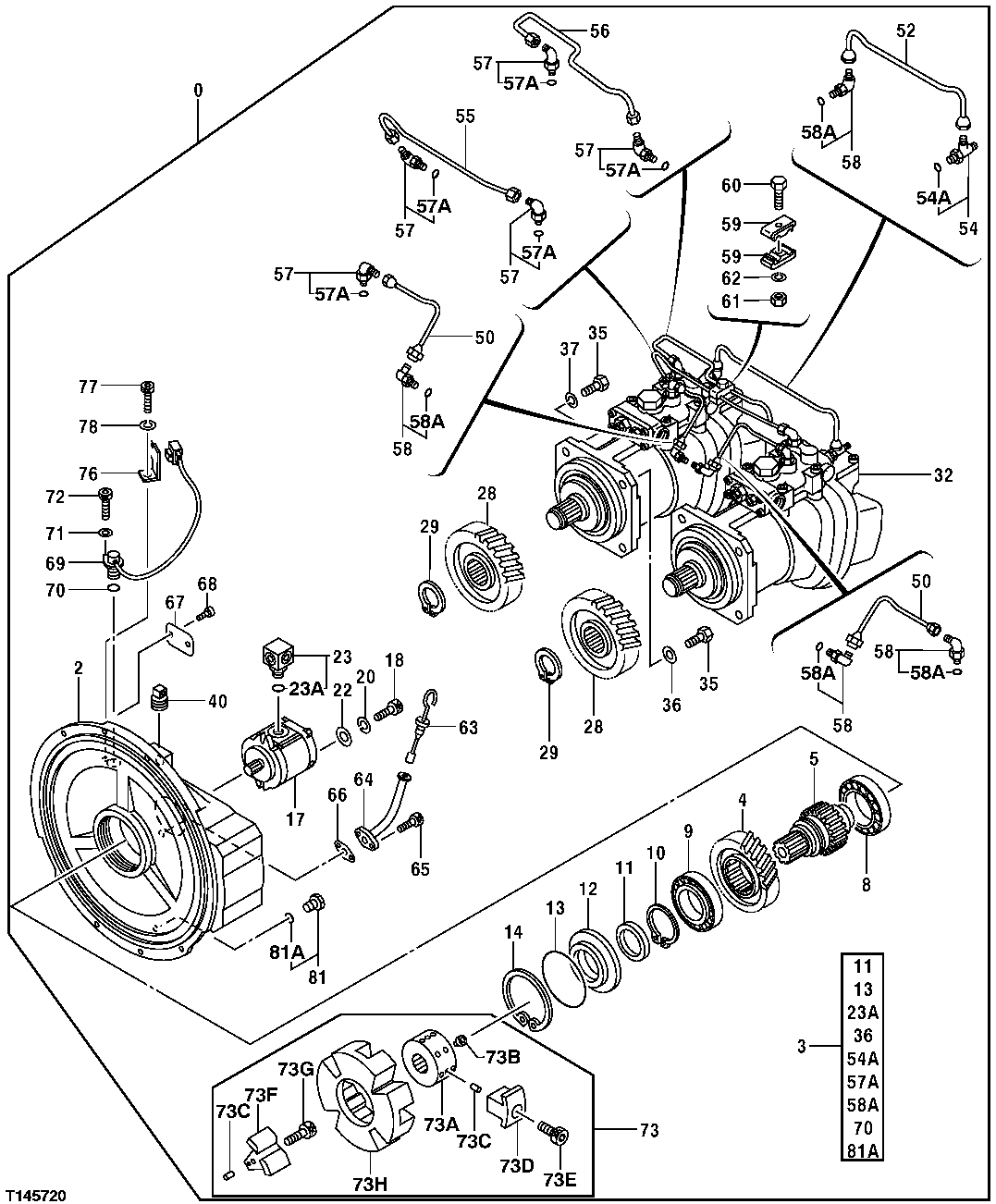

Запчасти John Deere 30CLC 259 - HYDRAULIC PUMP AND GEARBOX COMPONENTS (CONTINUED) 2160 VEHICLE HYDRAULICS

59

4179843

Clamp

SUB FOR TH109471

2шт.

60

19M7377

Cap Screw

M8 X 28

1шт.

61

14M7273

Nut

M8

1шт.

62

Washer

12M7065 NLA

1шт.

63

4721548

Gauge

SUB FOR TH112088 AND 4242263

1шт.

64

4242262

Oil Tube

SUB FOR TH112089

1шт.

65

19M7647

Screw

M8 X 16 SUB FOR AT217709

2шт.

66

9742779

Gasket

SUB FOR AT214401

1шт.

67

Plate

(NLA)

1шт.

68

37H99

Screw

0.100" X 1/4"

2шт.

69

4265372

Sensor

SUB FOR AT154297

1шт.

70

4306888

O-Ring

SUB FOR AT154310

1шт.

71

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

72

19M8553

Screw

M6 X 16

1шт.

73

4191663

Coupling

SUB FOR TH111234

1шт.

73A

Hub

TH111400 NLA

1шт.

73B

22M7137

Set Screw

M16 X 16

2шт.

73C

34M7117

Spring Pin

5 X 10 mm

12шт.

73D

4216947

Insert

SUB FOR TH111402

4шт.

73E

4216949

Screw

SUB FOR TH111404

4шт.

73F

Insert

( TH111401 NLA)

4шт.

73G

4216948

Screw

SUB FOR TH111403

4шт.

73H

4216944

Coupling

1шт.

76

4252767

Bracket

SUB FOR AT154206

1шт.

77

0209423

Bolt

SUB FOR TH100738

1шт.

78

12M7133

Lock Washer

6 mm

1шт.

81

15M7036

Drain Plug

SUB FOR 4216753 OR 0309805; SUB FOR 4092534 AND CH11570

1шт.

81A

CH11570

O-Ring

1шт.
