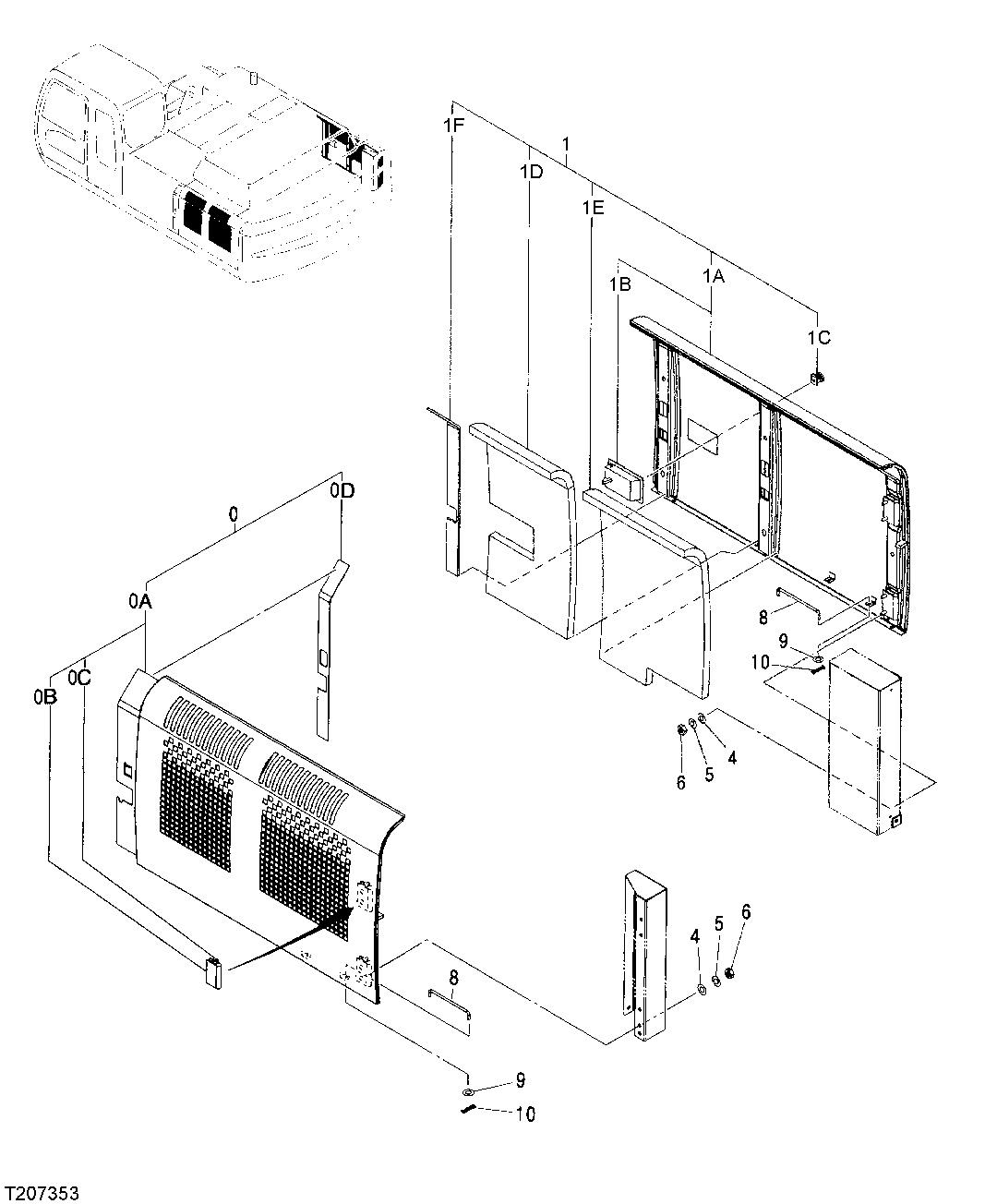

Запчасти John Deere 30CLC 251 - COOLING PACKAGE AND HYDRAULIC PUMP COMPARTMENT DOORS 1910 HOOD OR ENGINE ENCLOSURE

0

DH700150

Door

ASSY SUB FOR 7042071 AND DH700150J

1шт.

0A

5007935

Door

1шт.

0B

4404208

Hinge

SUB FOR 3072015

2шт.

0C

19M7402

Cap Screw

M10 X 25

4шт.

0D

FYA00015875

Isolator

SUB FOR 4425576

1шт.

1

7041715

Door

ASSY

1шт.

1A

7038860

Door

SUB FOR 5007229

1шт.

1B

4409446

Lock

1шт.

1C

Key

Included With Lock

1шт.

1D

4440996

Isolator

1шт.

1E

4440995

Isolator

1шт.

1F

4425575

Isolator

1шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

5

12M7066

Lock Washer

10 mm

8шт.

6

14M7274

Nut

M10

8шт.

8

4341788

Rod

SUB FOR 4341788J

2шт.

9

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

2шт.

10

H132922

Cotter Pin

2шт.
