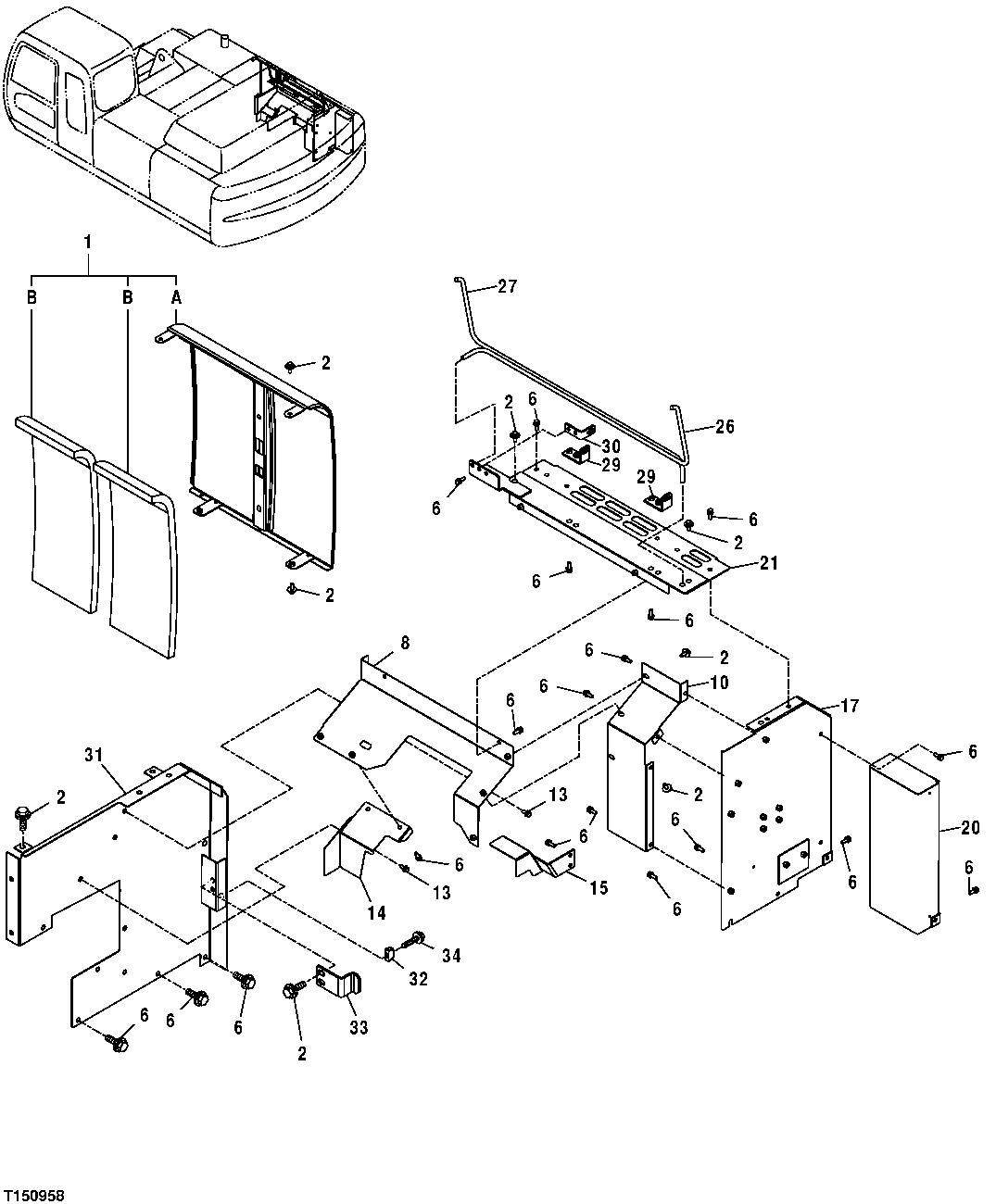

Запчасти John Deere 30CLC 247 - COVER (HYDRAULIC PUMP COMPARTMENT) 1910 HOOD OR ENGINE ENCLOSURE

1

8084579J

Cover

(SUB FOR 8084579)

1шт.

1A

6019318

Cover

1шт.

1B

4451865

Isolator

2шт.

2

19M7662

Cap Screw

M10 X 30

11шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

11шт.

24M7346

Washer

11 X 20 X 2 mm

11шт.

3

9214563

Cover

Not Illustrated

1шт.

6

19M7662

Cap Screw

M10 X 30

27шт.

12M7066

Lock Washer

10 mm

27шт.

24M7028

Washer

10.500 X 20 X 2 mm

27шт.

8

7040656

Cover

1шт.

10

3092954

Cover

1шт.

13

19M7402

Cap Screw

M10 X 25

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

14

8086485

Cover

1шт.

15

8088286

Bracket

1шт.

17

7041018

Cover

1шт.

20

8085006

Cover

1шт.

21

7041014

Cover

1шт.

26

4397604

Torsion Spring

(SUB FOR 4386544)

1шт.

27

4441089

Bar

1шт.

29

9748439

Bracket

(SUB FOR AT250271)

2шт.

30

9748440

Bracket

(SUB FOR AT250272)

1шт.

31

6020730

Cover

1шт.

32

4609950

Stop

(SUB FOR 4424157, TH4424157)

1шт.

33

4431357

Stop

1шт.

34

19M7177

Cap Screw

M6 X 35

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

12M7012

Lock Washer

6 mm

1шт.
