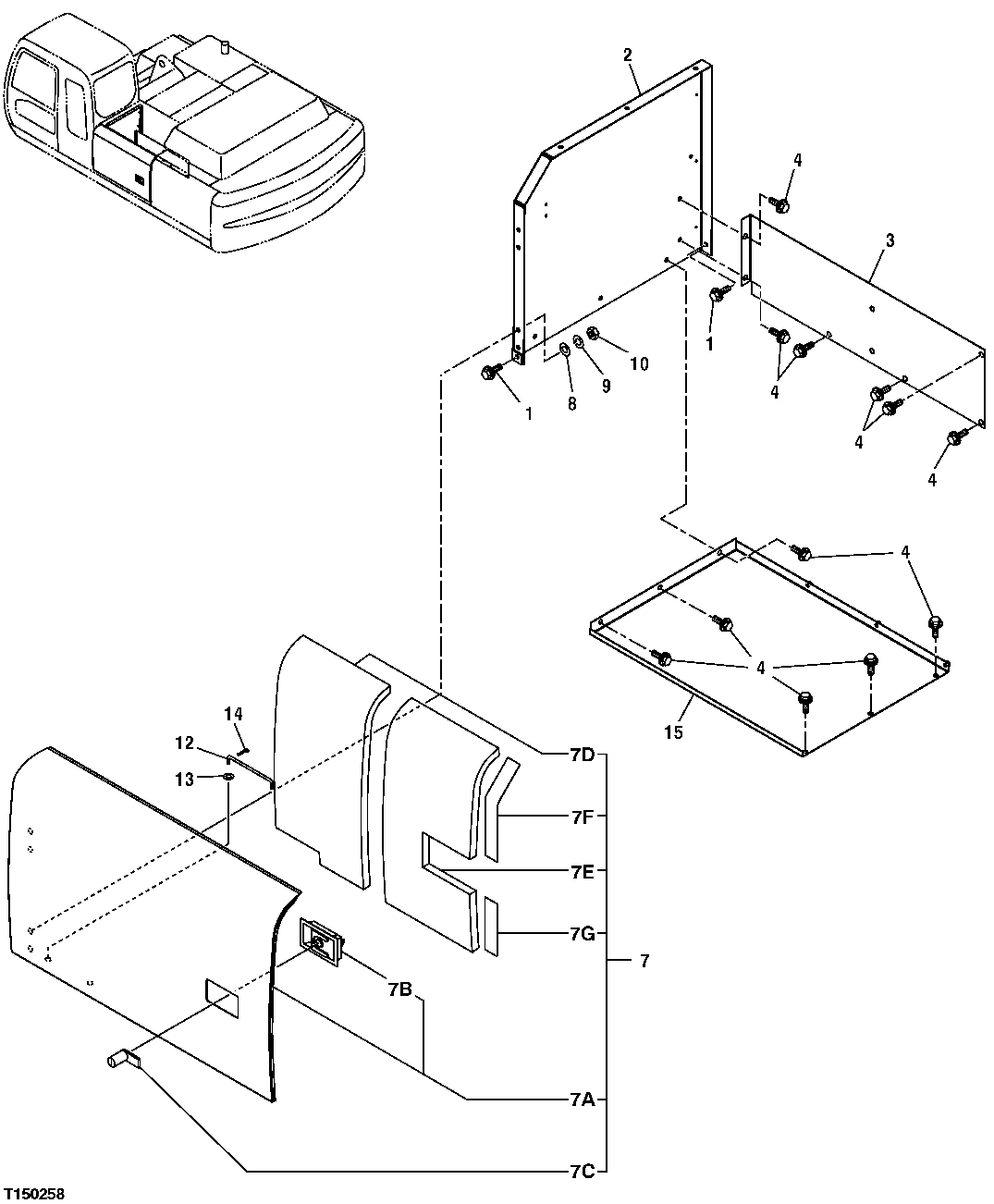

Запчасти John Deere 30CLC 242 - COVER, HOOD AND ENGINE ENCLOSURE (STORAGE COMPARTMENT) 1910 HOOD OR ENGINE ENCLOSURE

1

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

2

7040380

Cover

1шт.

3

3093105

Cover

1шт.

4

19M7662

Cap Screw

M10 X 30

12шт.

7

7038798J

Door

(SUB FOR 7038798)

1шт.

7A

5007209

Door

1шт.

7B

4409394

Lock

1шт.

4409395

Lock

1шт.

7C

4409396

Lock

(SUB FOR TH4409396)

1шт.

4409394

Lock

1шт.

7D

4440446

Isolator

1шт.

7E

4440996

Isolator

1шт.

7F

4453760

Isolator

(SUB FOR TH4453760)

1шт.

7G

4453765

Isolator

(SUB FOR TH4453765)

1шт.

8

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

4шт.

9

12M7066

Lock Washer

10 mm

4шт.

10

14M7274

Nut

M10

4шт.

12

4341788

Rod

(SUB FOR 4341788J)

1шт.

13

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR A590108)

1шт.

14

H132922

Cotter Pin

1шт.

15

7038778

Cover

1шт.
