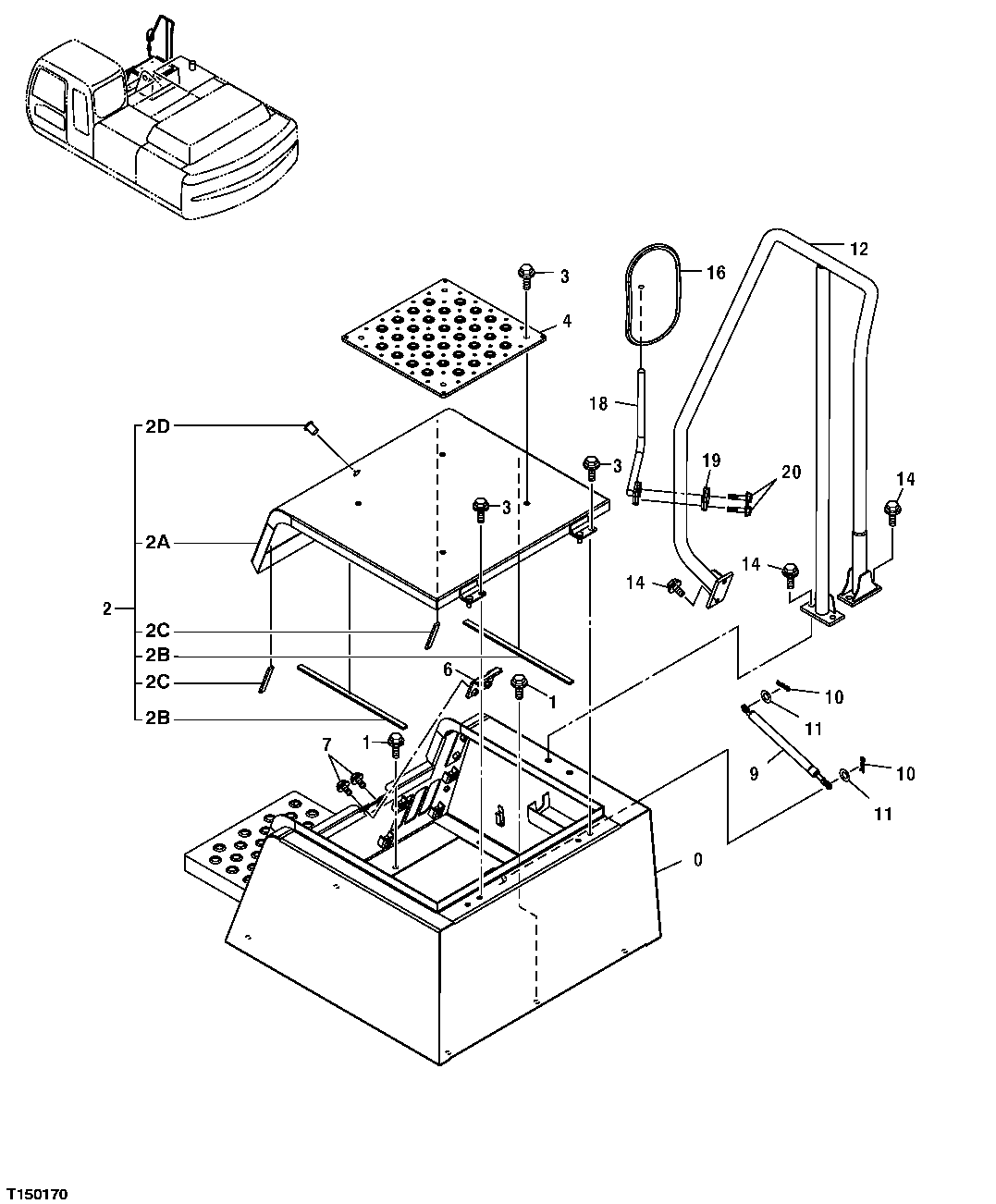

Запчасти John Deere 30CLC 241 - TOOL BOX (STORAGE COMPARTMENT) 1910 HOOD OR ENGINE ENCLOSURE

0

6024066

Toolbox

SUB FOR TH6019360 OR 6019360

1шт.

1

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

2

7040600

Cover

SUB FOR TH7040600

1шт.

2A

6019996

Cover

SUB FOR TH6019996

1шт.

2B

4388212

Isolator

SUB FOR TH4388212

2шт.

2C

4388213

Isolator

SUB FOR TH4388213

2шт.

2D

4379989

Cylinder

SUB FOR TH4379989

1шт.

3

19M7662

Cap Screw

M10 X 30 SUB FOR AT157059

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

4

3091337

Cover

SUB FOR TH3091337

1шт.

6

9745798

Catch

SUB FOR AT214409

1шт.

7

19M7402

Cap Screw

M10 X 25 SUB FOR AT154880

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

9

4352457

Cylinder

SUB FOR AT213967

1шт.

10

H132922

Cotter Pin

2шт.

11

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12

4600284

Handrail

SUB FOR TH6019738; SUB FOR 6019738; SUB FOR 6019738R, THIS APPLICATION

1шт.

14

19M8011

Cap Screw

M12 X 30

6шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

16

4420724

Rear View Mirror

SUB FOR AT185207

1шт.

18

8124253

Bracket

SUB FOR 8077521

1шт.

19

4425481

Hose Clamp

1шт.

20

19M7184

Cap Screw

M8 X 55 SUB FOR AT131308

2шт.

Washer

12M7065 NLA

2шт.
