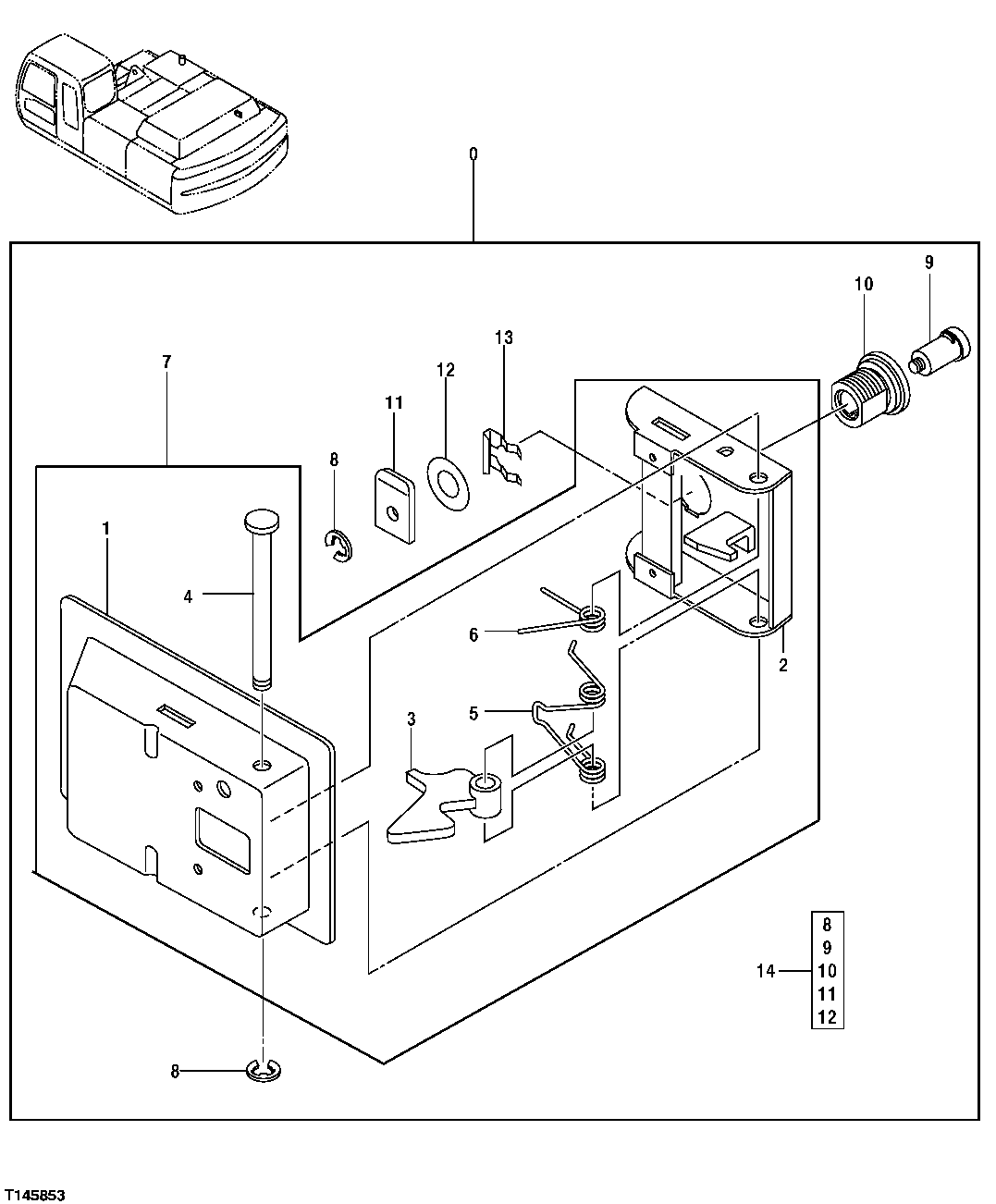

Запчасти John Deere 30CLC 239 - DOOR LOCK (ACCESS DOORS) 1910 HOOD OR ENGINE ENCLOSURE

0

4409446

Lock

Weld In (SUB FOR TH4409446)

1шт.

DH400030

Latch

Rivet In

1шт.

1

Cover

( TH4461343 NLA)

1шт.

2

Latch

( TH4461344 NLA)

1шт.

3

Lever

( TH4461345 NLA)

1шт.

4

Shaft

( TH4461346 NLA)

1шт.

5

Spring

( TH4461347 NLA)

1шт.

6

Spring

( TH4461348 NLA)

1шт.

7

4409447

Lock

1шт.

8

Ring

( TH4461337 NLA)

2шт.

9

Key

( TH4461338 NLA)

1шт.

10

Case

( TH4461339 NLA)

1шт.

11

Plate

( TH4461340 NLA)

1шт.

12

Washer

( TH4461341 NLA)

2шт.

13

Clip

( TH4461342 NLA)

1шт.

14

4409396

Lock

(SUB FOR TH4409396)

1шт.
