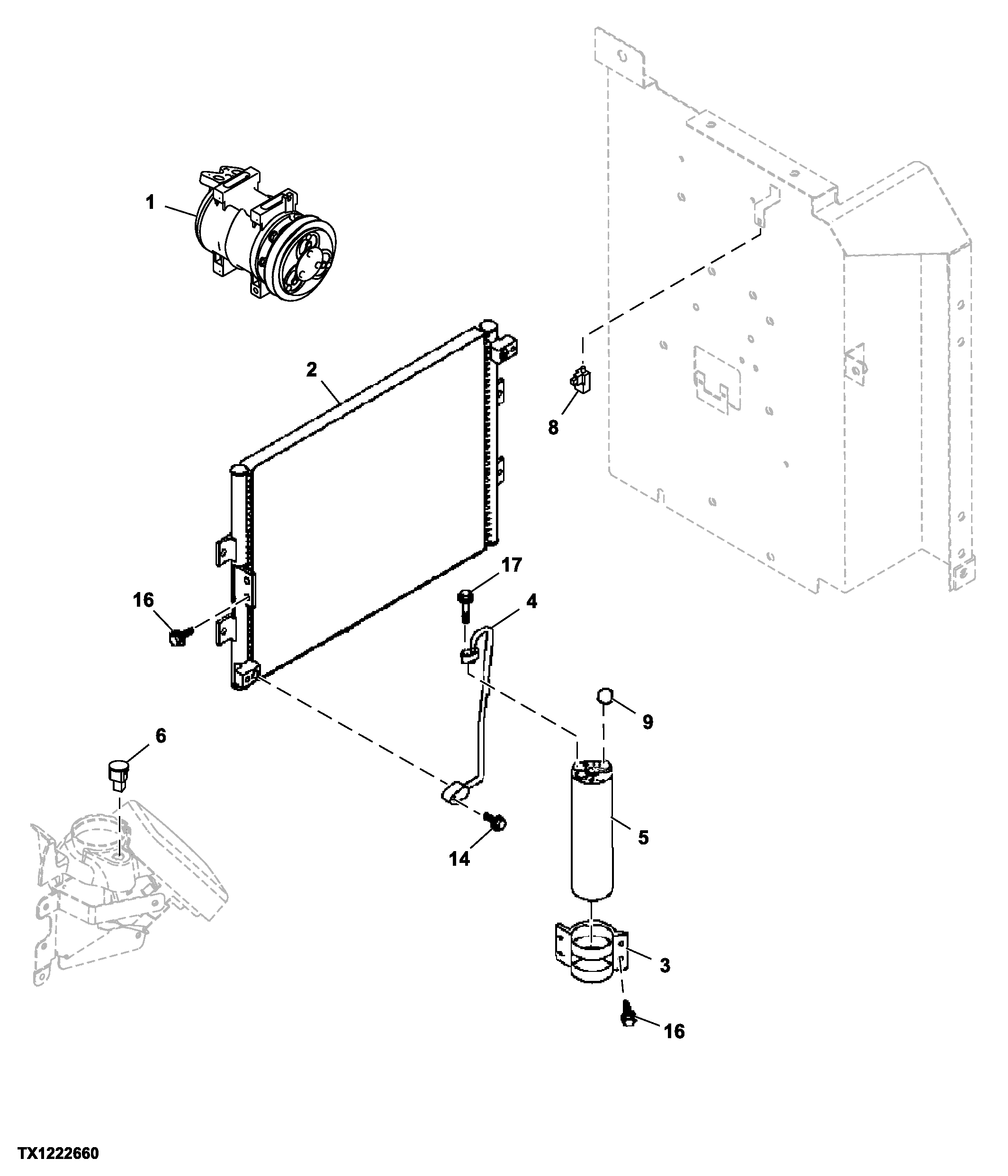

Запчасти John Deere 30CLC 232 - AIR CONDITIONER COMPONENTS 1830 HEATING AND AIR CONDITIONING

1

4456130

Compressor

SUB FOR TH4456130

1шт.

4623638

Clutch

Magnetic Clutch

1шт.

2

4602578

Vapor Condenser

SUB FOR TH4426046

1шт.

3

4460399

Bracket

1шт.

4

4477526

Line

1шт.

5

4448179

Receiver-Dryer

INCLUDES 4709907

1шт.

6

4405166

Sensor

SUB FOR TH4405166

1шт.

8

4405164

Sensor

SUB FOR TH4405164 Ambient Temperature

1шт.

9

4709907

Switch

High/Low Pressure

1шт.

14

Screw With Washer

J260835 NLA

1шт.

19M7298

Cap Screw

M8 X 35 SUB FOR J900835

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

1шт.

16

Screw With Washer

J260620 NLA

4шт.

19M7881

Screw

M8 X 20 SUB FOR J900620

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590106

4шт.

17

Screw With Washer

J260625 NLA

1шт.

19M7286

Cap Screw

M6 X 25 SUB FOR J900625

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR A590106

1шт.
