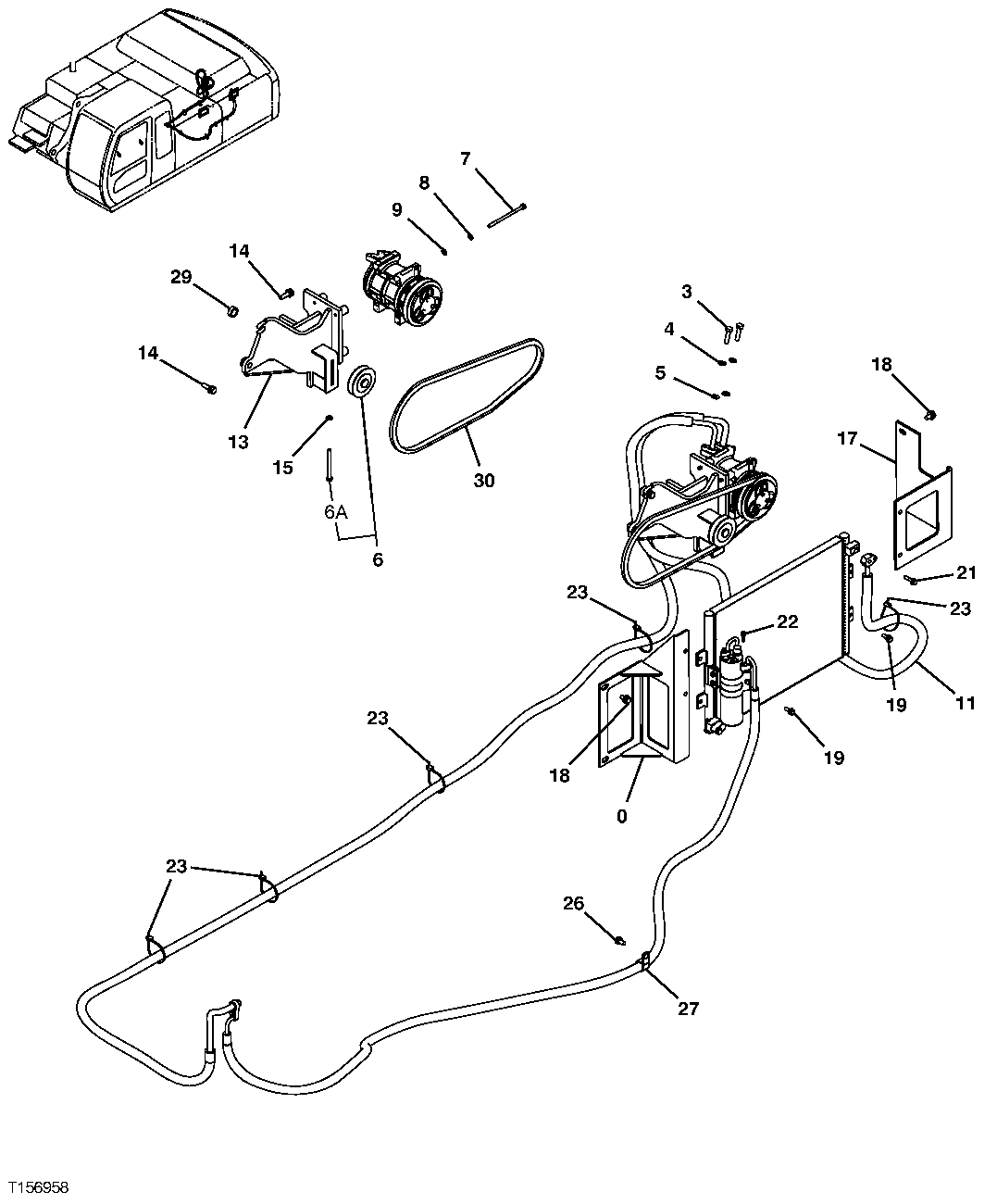

Запчасти John Deere 30CLC 230 - AIR CONDITIONER 1830 HEATING AND AIR CONDITIONING

0

7040897

Bracket

1шт.

3

19M8260

Cap Screw

M10 X 40

2шт.

4

12M7066

Lock Washer

10 mm

2шт.

5

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR A590110

2шт.

6

4346770

Pulley

SUB FOR AT213915

1шт.

6A

4451204

Bolt

1шт.

7

19M8404

Cap Screw

M8 X 130

4шт.

8

Washer

12M7065 NLA

4шт.

9

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

4шт.

11

4465254

Hydraulic Hose

SUB FOR 4459886

1шт.

4421946

O-Ring

(FOR HOSE FROM CONDENSOR TO COMPRESSOR)

2шт.

13

7040896

Bracket

1шт.

14

19M7550

Cap Screw

M10 X 35

1шт.

15

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

1шт.

17

7040894

Bracket

1шт.

18

19M7402

Cap Screw

M10 X 25

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

19

19M7163

Cap Screw

M8 X 25

4шт.

21

19M8008

Cap Screw

M8 X 35

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

22

19M7286

Cap Screw

M6 X 25

1шт.

23

H77698

Tie Band

5шт.

26

19M7938

Cap Screw

M10 X 20

1шт.

27

T24432

Clamp

( 4235654 NLA)

1шт.

29

4397971

Spacer

SUB FOR AT250121

1шт.

30

4372746

V-Belt

1шт.
