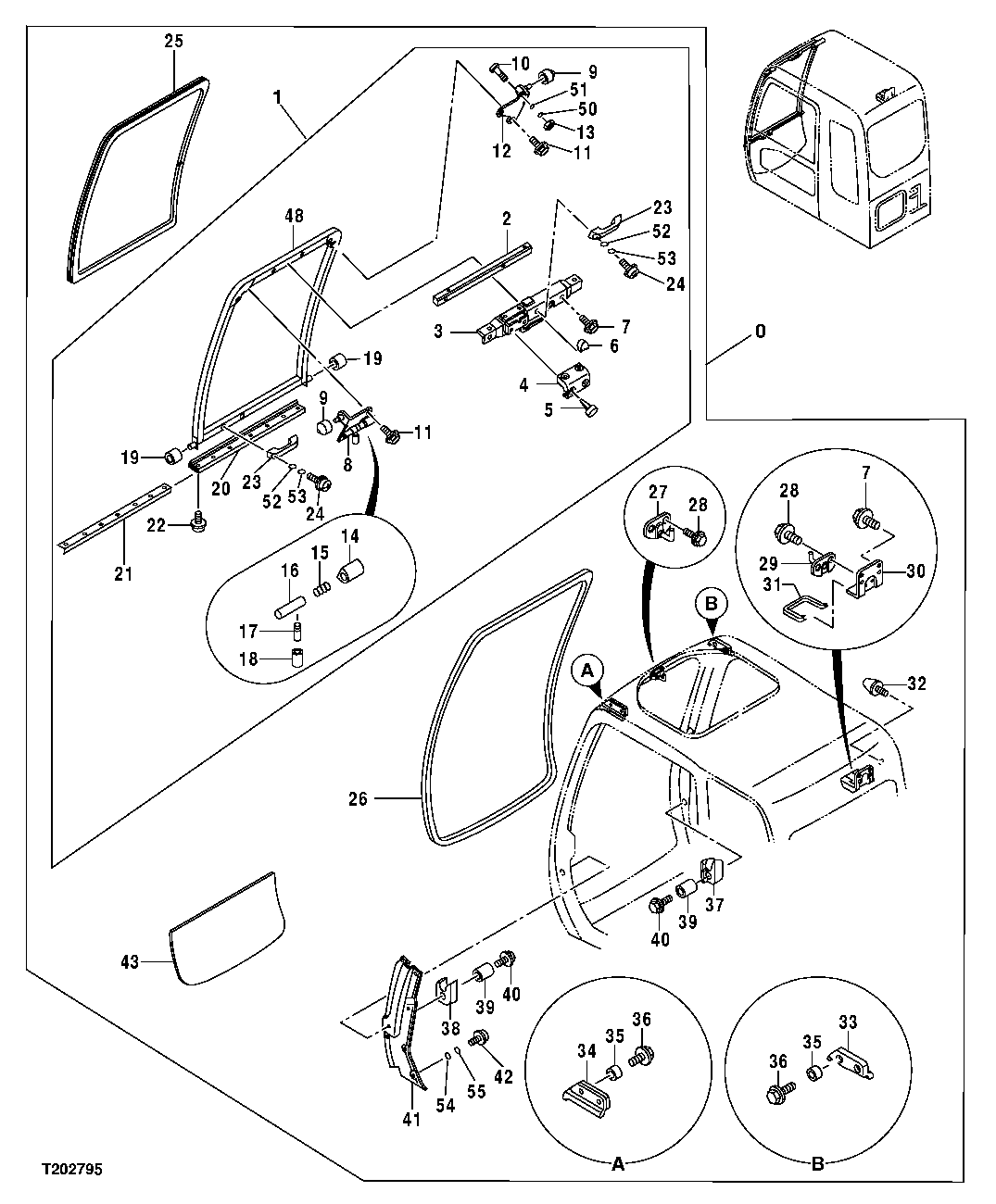

Запчасти John Deere 30CLC 213 - CAB, WINDOWS AND COMPONENTS 1810 OPERATOR ENCLOSURE

0

9202944

Cab

(SUB FOR 4474296 OR 4602549)(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENT S LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

Window

(ORDER 4624730 ) (ALSO ORDER 4 448306 OR 4602562 ) (SUB FOR 44 53689, TH4453689)( 4624730 NLA)

1шт.

4637257

Window

1шт.

2

4456218

Weld Nut

(SUB FOR TH4456218)

1шт.

3

4456219

Lock

(SUB FOR TH4456219)

1шт.

4

4456220

Cover

(SUB FOR TH4456220)

1шт.

5

4456221

Clip

(SUB FOR TH4456221)

4шт.

6

4456222

Cover

(SUB FOR TH4456222)

1шт.

7

4372225

Screw With Washer

(SUB FOR AT214311)

4шт.

8

Bracket

(ORDER 4633401 ) (ALSO ORDER 4633400 ) (SUB FOR TH4456223)( 4456223 NLA)

1шт.

4633401

Bracket

1шт.

9

4456224

Roller

(SUB FOR TH4456224)

2шт.

10

4456225

Screw

(SUB FOR TH4456225)

1шт.

11

Screw With Washer

( AT214305 OR 4372219 NLA)

4шт.

19M7662

Cap Screw

M10 X 30 (SUB FOR J901030)

4шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J922010)

4шт.

12

Bracket

(ORDER 4633400 ) (ALSO ORDER 4633401 ) (SUB FOR TH4456226)( 4456226 NLA)

1шт.

4633400

Bracket

1шт.

13

19M7361

Cap Screw

M12 X 50

1шт.

14

4456227

Cover

(SUB FOR TH4456227)

1шт.

15

494918

Spring

(SUB FOR TH106783)

1шт.

16

4403327

Universal Driveshaft

(SUB FOR AT214104, 4369599)

1шт.

17

4295480

Lever

(SUB FOR AT156993)

1шт.

18

4295876

Cover

(SUB FOR AT156994)

1шт.

19

4204558

Roller

(SUB FOR TH108638)

2шт.

20

4456228

Isolator

(SUB FOR TH4456228)

1шт.
