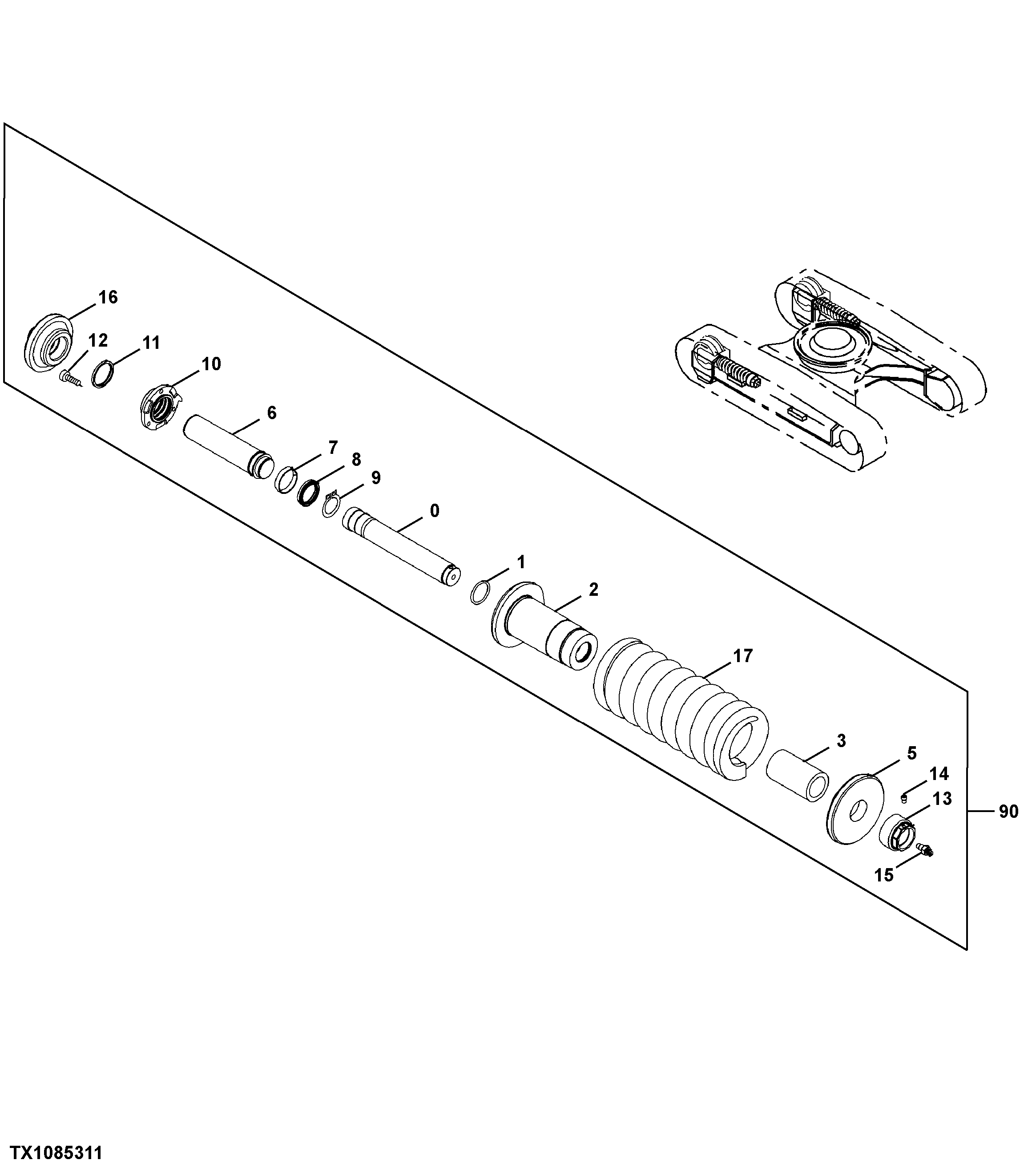

Запчасти John Deere 30CLC 8 - Adjuster (330CLC) (Manufactured at Topy) ( - XXXXXX) 0130 TRACK SYSTEMS

0

3078695

Rod

(SUB FOR AT219627 OR 4619608)

1шт.

1

4140481

O-Ring

(SUB FOR AT217955, FFSB112111 OR 4619607)

1шт.

2

2040778

Hydraulic Cylinder Barrel

(SUB FOR AT219599)

1шт.

3

4382972

Spacer

(SUB FOR AT250037 OR 4619609)

1шт.

5

3078697

Washer

(SUB FOR AT219629 OR 4619610)

1шт.

6

2040779

Hydraulic Cylinder Rod

(SUB FOR AT219600 OR 4619611)

1шт.

7

TH111224

Wear Ring

1шт.

8

4137866

Packing

(SUB FOR TH103137 OR 4619612)

1шт.

9

40M7065

Snap Ring

1шт.

10

3053246

Flange

(SUB FOR AT200975)

1шт.

11

4264035

Seal

(SUB FOR 4619613 OR T139457)

1шт.

12

M341022

Screw

(SUB FOR TH105695)

4шт.

13

3075543

Nut

(SUB FOR AT217950 OR 4619615)

1шт.

14

AT180047

Fitting Plug

(SUB FOR AT154185 OR 4619604 OR 4248106)

1шт.

15

4255055R

Valve

(SUB FOR AT154223 OR 4619605, OR 4255055)

1шт.

16

3078698

Holder

(SUB FOR AT219630 OR 4619614)

1шт.

17

T211395

Compression Spring

(SUB FOR AT219628, 3078696)

1шт.

3118594

Spring

For Harsh Environment

1шт.

90

Adjuster

No Serial Number Recorded Reference DTAC Solution 70268 to Identify Adj uster ( 9159015 NLA) (SUB AT315230)

2шт.
