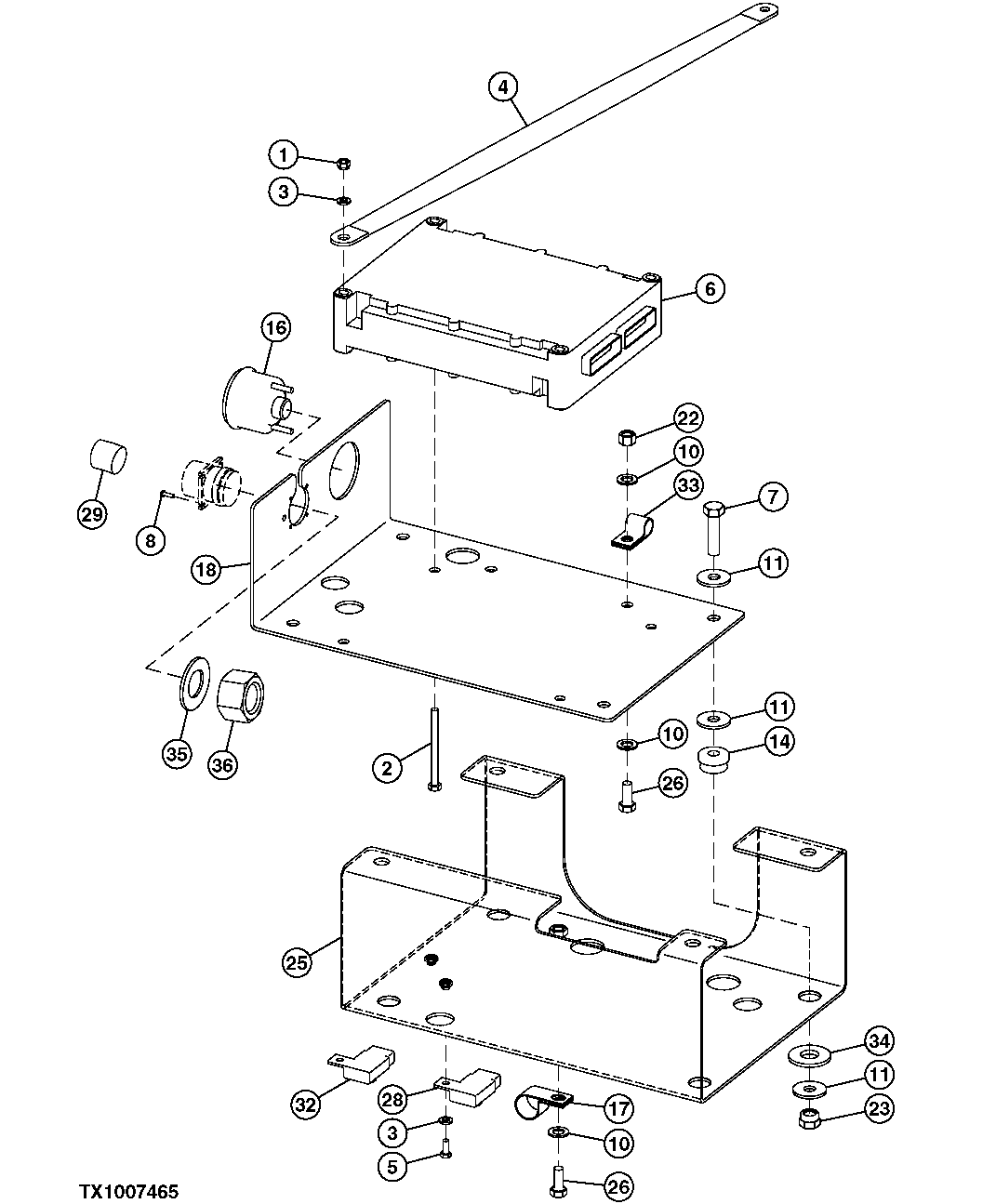

Запчасти John Deere 30CLC 197 - ENGINE CONTROL UNIT ASSEMBLY 1674 WIRING HARNESS & SWITCHES (IF NOT INCLUDED ELSEWHERE)

1

14M7165

Lock Nut

M6

4шт.

2

19M7763

Cap Screw

M6 X 75

4шт.

3

24M7088

Washer

6.600 X 12 X 1.600 mm

6шт.

4

AT180705

Ground Cable

1шт.

5

19M7640

Cap Screw

M5 X 12

2шт.

6

RE508773

Engine Controller

(MARKED RE508773)(12/24V ) (ECU) (ORDER WITH ESN)

1шт.

RE522515

Engine Controller

(SUB FOR RE518503)(12/24V) (ECU) (O RDER WITH ESN) (MACHINE SN 592391- )

1шт.

7

19M8637

Cap Screw

M10 X 40

4шт.

8

21M7394

Screw

M3 X 10

4шт.

10

24M7096

Washer

10.500 X 18 X 1.600 mm

5шт.

11

24M7296

Washer

10.500 X 30 X 2.500 mm

12шт.

14

AT116162

Isolator

4шт.

16

RE68155

Gauge

DIAGNOSTIC DISPLAY UNIT

1шт.

17

T78787

Clamp

1шт.

18

T186625

Angle

1шт.

22

14M7327

Lock Nut

M8

2шт.

23

14M7517

Lock Nut

M10

4шт.

25

AT197085

Cover

1шт.

26

19M7881

Screw

M8 X 20

3шт.

27

14M7442

Nut

M5

2шт.

28

57M7121

Fuse

1шт.

29

57M7477

Electrical Connector Cap

1шт.

32

57M7125

Fuse

1шт.

33

T75197

Clamp

2шт.

34

24H1392

Washer

25/32" X 1-3/8" X 0.120"

4шт.

35

24H1508

Washer

1-25/64" X 1-21/32" X 0.060"

1шт.

36

R165983

Nut

1шт.
