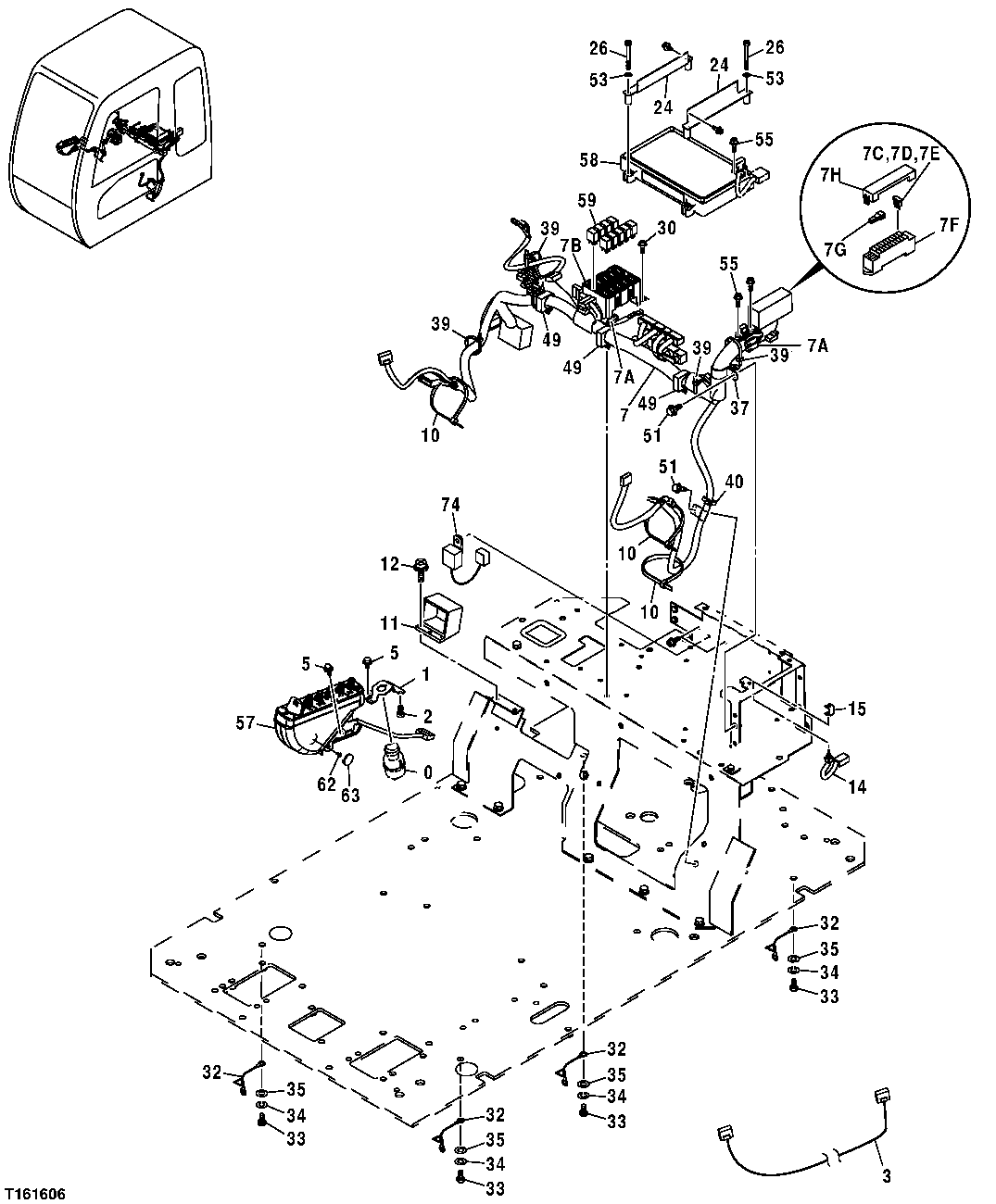

Запчасти John Deere 30CLC 193 - SWITCH BOX RELAYS, FUSES & CONTROLLERS (CONTINUED) 1674 WIRING HARNESS & SWITCHES (IF NOT INCLUDED ELSEWHERE)

30

Screw With Washer

( J460620 NLA) (SUB FOR AT200012 (STARTER))

4шт.

21M7267

Screw

M6 X 20

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

32

4281293

Ground Cable

(SUB FOR TH4281293)

4шт.

33

19M8324

Cap Screw

M10 X 16

4шт.

34

12M7066

Lock Washer

10 mm

4шт.

35

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

38

R73384

Clamp

(SUB RE41759 ) (SUB FOR TH 108597 OR 4190253)(STARTER)

1шт.

39

H77698

Tie Band

5шт.

40

H77698

Tie Band

(SUB FOR M88199)

1шт.

47

19M7932

Cap Screw

M8 X 16 Not Illustrated

2шт.

12M7056

Lock Washer

8 mm

2шт.

19M7932

Cap Screw

M8 X 16

2шт.

49

4449019

Clip

(SUB FOR TH4449019)

3шт.

51

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

53

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

55

Screw

(SUB FOR AT156974)( J460310 NLA)

4шт.

21M7394

Screw

M3 X 10

4шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

4шт.

12H233

Lock Washer

1/8"

4шт.

56

4384758

Switch

Travel Alarm Not Illust rated (SUB FOR AT215573)

1шт.

57

4454518

Control Console

(SUB FOR TH4454518)

1шт.

4482656

Dial Knob

Speed

1шт.

4483208

Dial Knob

4шт.

4483209

Dial Knob

1шт.

4370152

Lamp

2шт.

4483206

Switch

Harness

1шт.

58

9226764

Vehicle Controller

(SUB FOR 4452337)

1шт.

59

4436534

Relay

(SUB FOR TH4436534)

11шт.

61

Screw With Washer

( J460620 NLA) Not Illus trated (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

62

4381572

Screw

(SUB FOR TH4381572)

1шт.

63

4426354

Cap

1шт.

67

4190275

Clamp

(SUB FOR TH108598)(NOT ILLUSTRATED)

1шт.

68

AT121321

Hose Clamp

Not Illustrated

1шт.

74

AT195741

Relay

(WITH RELAY, ALTERNATOR)

1шт.
