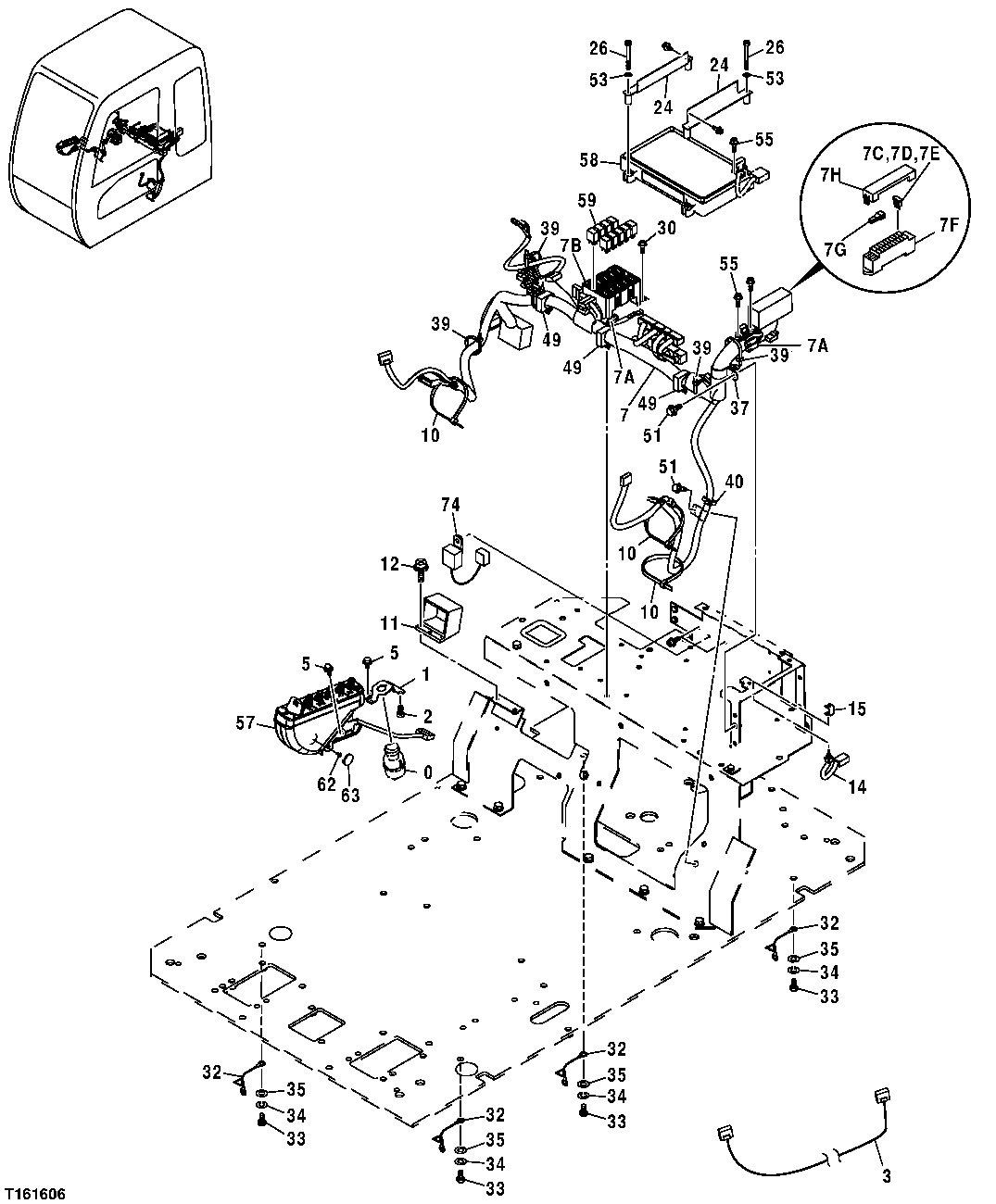

Запчасти John Deere 30CLC 192 - SWITCH BOX RELAYS, FUSES & CONTROLLERS 1674 WIRING HARNESS & SWITCHES (IF NOT INCLUDED ELSEWHERE)

0

4477373

Switch

(SUB FOR AT147803)

1шт.

AT194969

Key

1шт.

1

3087882

Bracket

1шт.

2

4361800

Screw

(SUB FOR AT214011)

3шт.

3

2048203

Wiring Harness

(2.75M) Extension

1шт.

2048184

Wiring Harness

(4.5M) Extension

1шт.

5

J010814

Screw With Washer

(SUB FOR AT132457)

3шт.

7

0004616

Wiring Harness

1шт.

0004069

Wiring Harness

1шт.

7A

4456778

Diode

(SUB FOR TH4456778)

5шт.

7B

4427429

Circuit Box

(SUB FOR TH4427429)

1шт.

7C

57M7688

Fuse

(5 AMP)

10шт.

7D

57M7689

Fuse

(10 AMP)

7шт.

7E

57M7691

Fuse

(20 AMP)

2шт.

7F

4456735

Fuse Holder

(SUB FOR TH4456735)

1шт.

4460037

Fuse Box

1шт.

7G

Puller

( TH4436737 NLA)

1шт.

7H

4443490

Cover

(SUB FOR TH4443490)

1шт.

10

H77698

Tie Band

3шт.

11

4431090

Electrical Connector Assy

(SUB FOR TH4431090)

1шт.

12

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

14

4359384

Switch

(SUB FOR AT213984)

1шт.

15

4367375

Bracket

(SUB FOR AT214036)(ALSO REQUIR ES (2) 14M7165 FOR EACH RELAY)

1шт.

20

4191772

Resistor

Not Illustrated (SUB FOR AT155250)

1шт.

21

4379070

Strap

(SUB FOR AT215559)(GROUND STRAP) (NOT ILLUSTRATED)

1шт.

22

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

23

4204811

Screw

Not Illustrated (SUB FOR AT155253)

1шт.

24

8082329

Bracket

(SUB FOR TH8082329)

2шт.

26

M430660

Screw

(SUB FOR AT203691)

4шт.
