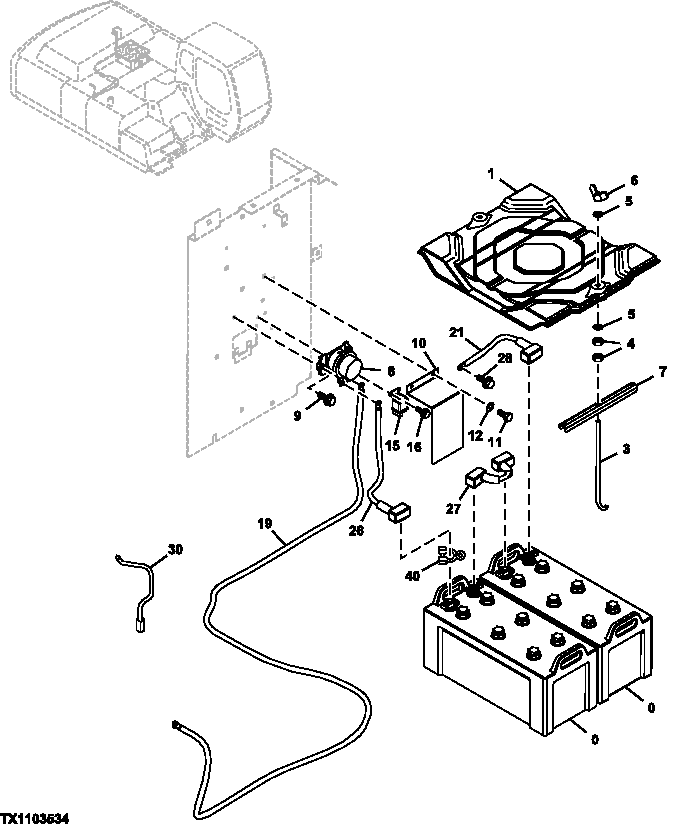

Запчасти John Deere 30CLC 189 - Batteries, Battery Cables And Relays 1674 WIRING HARNESS & SWITCHES (IF NOT INCLUDED ELSEWHERE)

0

TY23020

Dry Charged Battery

SUB FOR AT184083 OR TY21709

2шт.

1

4386066

Cover

SUB FOR AT250048

1шт.

3

4430289

Rod

SUB FOR TH4430289

2шт.

4

14M7274

Nut

M10

4шт.

5

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

6

14M7025

Wing Nut

M10

2шт.

7

4405803

Support

SUB FOR AT250148

2шт.

8

8943795431

Relay

SUB FOR 4255762 AND AT154229

1шт.

9

19M7513

Cap Screw

M8 X 30

2шт.

10

3087816

Cover

SUB FOR TH3087816

1шт.

11

19M7932

Cap Screw

M8 X 16

3шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

15

4452159

Relay

Fuel

1шт.

AT145341

Relay

Starter

1шт.

16

19M7077

Cap Screw

M6 X 20

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

19

4457896

Wiring Harness

SUB FOR TH4457896

1шт.

21

AR45925

Battery Cable

1шт.

26

4390098

Battery Cable

SUB FOR AT250086

1шт.

27

4350736

Battery Cable

SUB FOR AT213948

1шт.

28

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

30

4448296

Wiring Harness

1шт.

40

AT219485

Elec. Connector Terminal

4шт.
