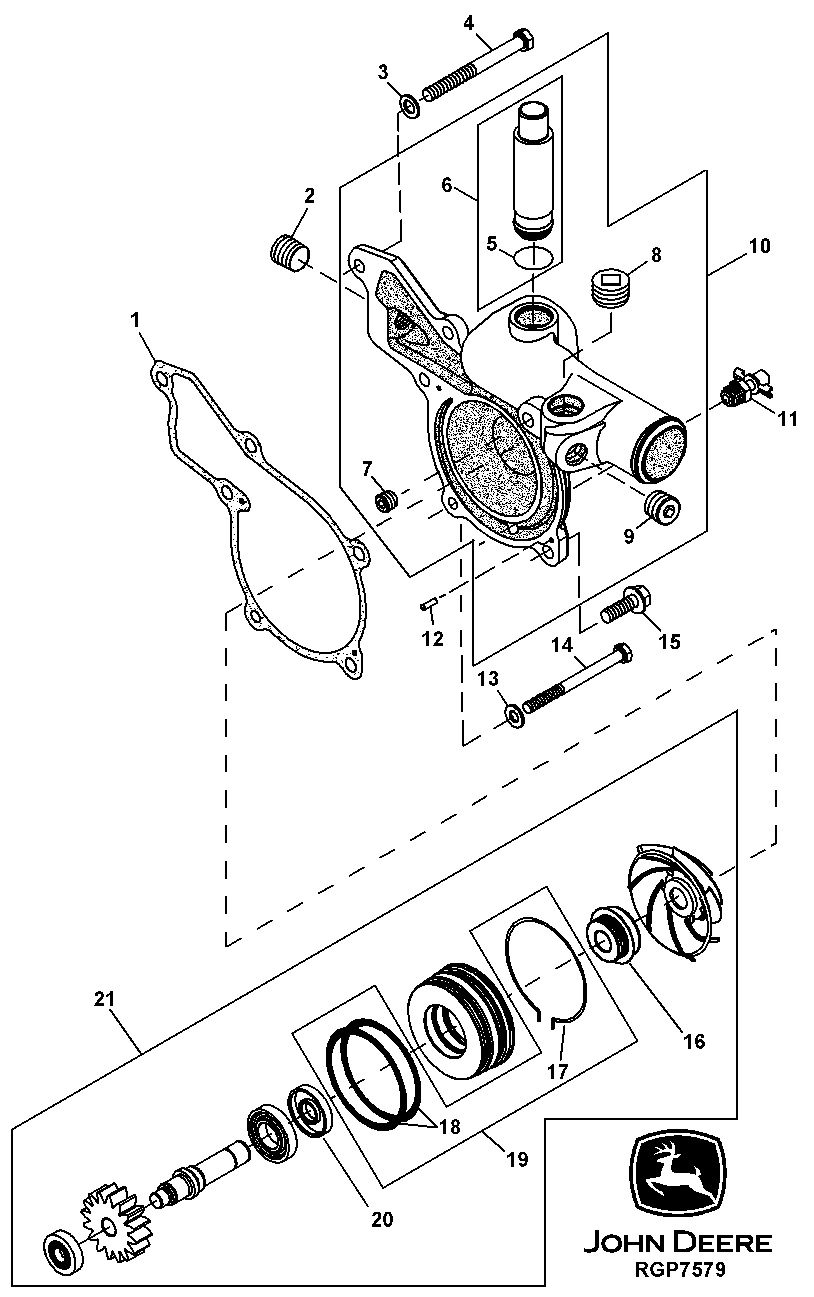

Запчасти John Deere 30CLC 122 - WATER PUMP 0400B 6081HT008 6081HT008-RE527869 6081HT008

1

R119383

Gasket

1шт.

2

15H685

Pipe Plug

1/4"

1шт.

3

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

4

19H1854

Cap Screw

3/8" X 3-3/4" 3/8" X 3-3/4"

3шт.

5

R504810

O-Ring

1шт.

6

RE509095

Tube

1шт.

7

15H690

Pipe Plug

3/4"

1шт.

8

15H685

Pipe Plug

1/4"

1шт.

9

RE57836

Pipe Plug

1шт.

10

RE506689

Cover

(MARKED R503445)(RH)

1шт.

11

AT13740

Drain Valve

1шт.

12

R11086

Dowel Pin

3.226 X 9.652 mm (0.127" X 0.380")

1шт.

13

24H1136

Washer

11/32" X 11/16" X 0.065"

1шт.

14

19H1897

Cap Screw

5/16" X 3-3/4" 5/16" X 3-3/4"

1шт.

15

19H3411

Screw

3/8" X 1-1/8"

2шт.

16

RE68318

Seal Kit

1шт.

17

R121316

Ring

1шт.

18

RE509463

O-Ring Kit

(INCLUDES R504778 AND R504791)

1шт.

19

RE502154

Kit

1шт.

20

RE39134

Seal

1шт.

21

RE521502

Pump Kit

(16 TOOTH GEAR) (MARKED R 503501) (SUB FOR RE532596)

1шт.

SE501596

Water Pump Reman

(REMAN FOR RE521502)

1шт.
