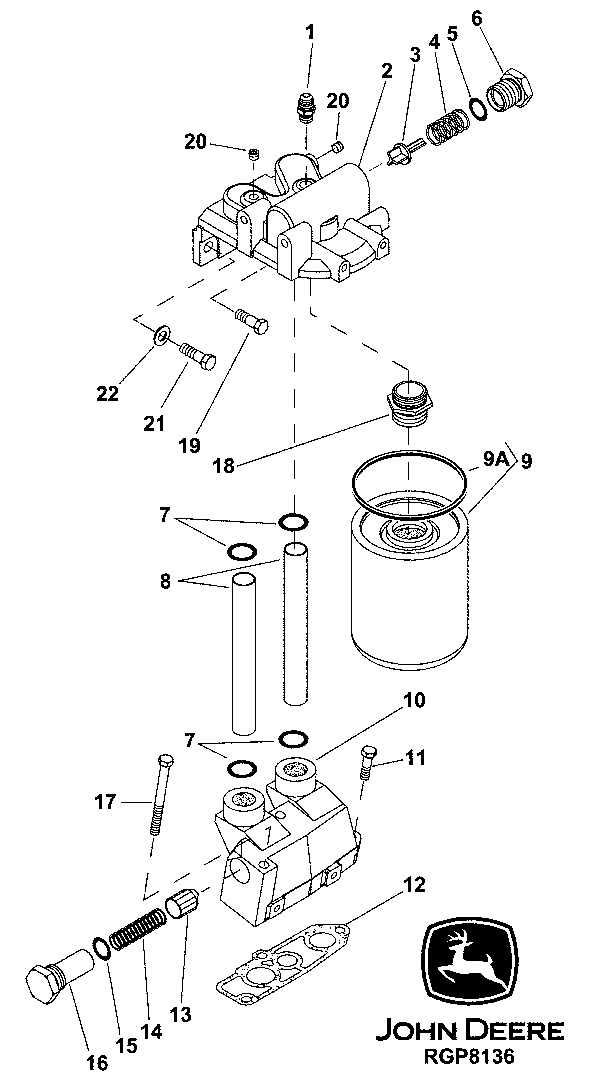

Запчасти John Deere 30CLC 114 - ENGINE OIL FILTERS 0400B 6081HT008 6081HT008-RE527869 6081HT008

1

RE57561

Adapter Fitting

1шт.

2

R128694

Base

1шт.

3

R500055

Valve

1шт.

4

R98064

Spring

1шт.

5

U17409

O-Ring

1шт.

6

R117073

Fitting Plug

1шт.

7

R47153

O-Ring

4шт.

8

R86063

Tube

2шт.

9

RE57394

Oil Filter

(MARKED RE57399 ) (USE WITH R104621)

1шт.

RE521420

Oil Filter

(MARKED RE520628 ) (USE WITH R518382)

1шт.

9A

R43660

Packing

1шт.

10

R129820

Housing

1шт.

11

19H3239

Cap Screw

3/8" X 1-1/4"

1шт.

12

R119847

Gasket

1шт.

13

R124186

Pressure Relief Valve

1шт.

14

R500330

Spring

1шт.

15

U17409

O-Ring

1шт.

16

R129821

Fitting Plug

1шт.

17

19H3445

Cap Screw

3/8" X 3-3/4"

2шт.

18

R104621

Adapter Fitting

(USE WITH RE57394 OR RE57399)

1шт.

R518382

Adapter Fitting

(USE WITH RE521420 OR RE520628)

1шт.

19

19H3104

Cap Screw

7/16" X 1-1/4"

1шт.

20

RE71255

Pipe Plug

2шт.

21

19H2731

Cap Screw

7/16" X 1-3/8"

1шт.

22

24H1325

Washer

15/32" X 59/64" X 0.065"

1шт.
