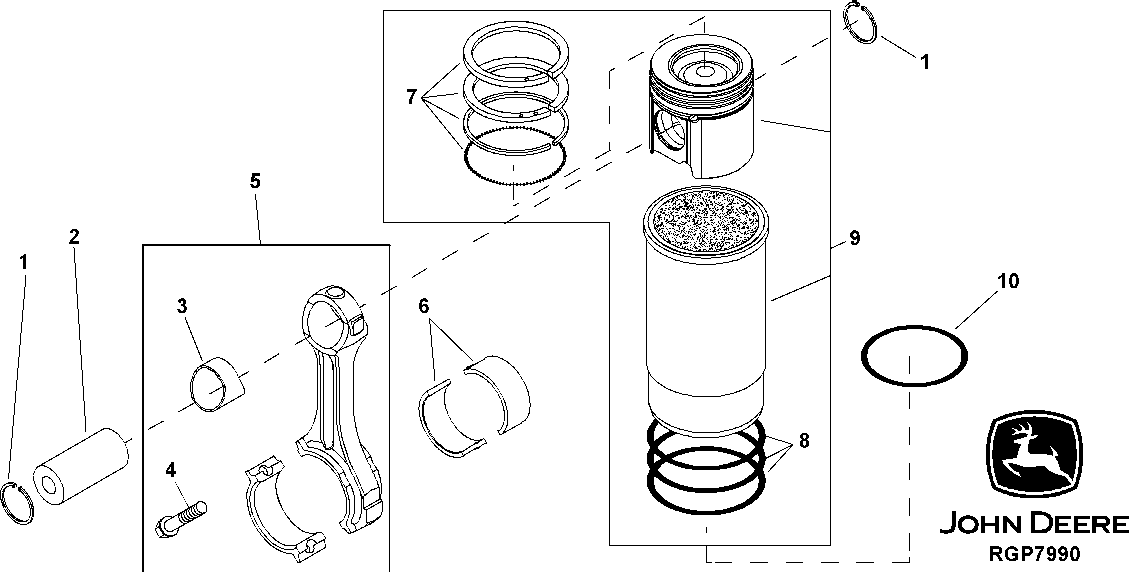

Запчасти John Deere 30CLC 106 - PISTON/CONNECTING ROD/CYLINDER LINER 0400B 6081HT008 6081HT008-RE527869 6081HT008

1

E1343FN

Snap Ring

12шт.

2

R57771

Piston Pin

6шт.

3

R74008

Bushing

6шт.

4

R501035

Cap Screw

14.275 X 59.499 mm (9/16" X 2.342")

12шт.

5

RE522977

Connecting Rod

(MARKED R519583)

6шт.

SE501230

Connecting Rod Reman

(MARKED R519583) (REMAN FOR RE522977)

6шт.

6

R116081

Bearing

STD PKG (2)

12шт.

RE57167

Bearing

R121338

ARшт.

7

RE503528

Piston Ring

6шт.

8

AR98850

O-Ring Kit

6шт.

9

RE64509

Piston-Liner Kit

(A) (MARKED RE70688)

6шт.

10

R93948

Shim

0.05MM (.002") (MAX.)

2шт.
