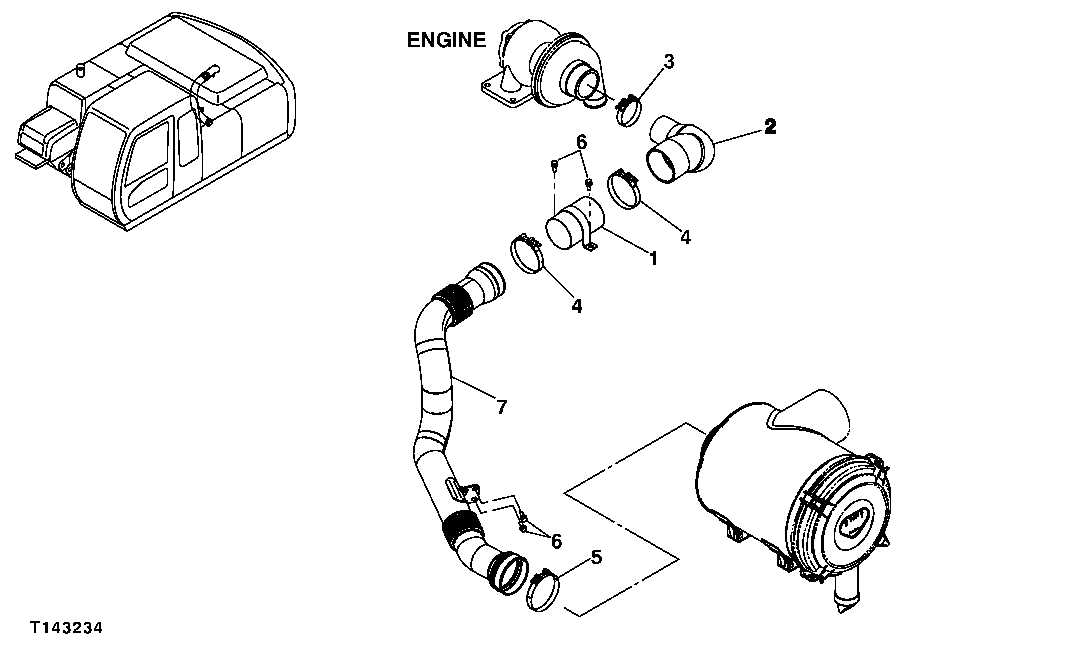

Запчасти John Deere 0 6 - AIR CLEANER PIPING 520 - ENGINE AUXILIARY SYSTEM 5

1

8067675

LINE

1шт.

2

3079135

HOSE

(SUB FOR AT218159)

1шт.

3

AT50923

HOSE CLAMP

1шт.

4

4282489

HOSE CLAMP

(SUB FOR AT215499)

2шт.

5

AT39390

HOSE CLAMP

(SUB FOR AT53439)

1шт.

6

19M7662

CAP SCREW

M10 X 30, ( AT157059 NOT AVAILABLE FOR SERVICE)

4шт.

12M7066

LOCK WASHER

10 MM (0.394")

4шт.

24M7028

WASHER

10.500 X 20 X 2 MM (0.413" X 0.787" X 0.079")

4шт.

7

4460662

AIR DUCT

(SUB FOR TH4460662)

1шт.
