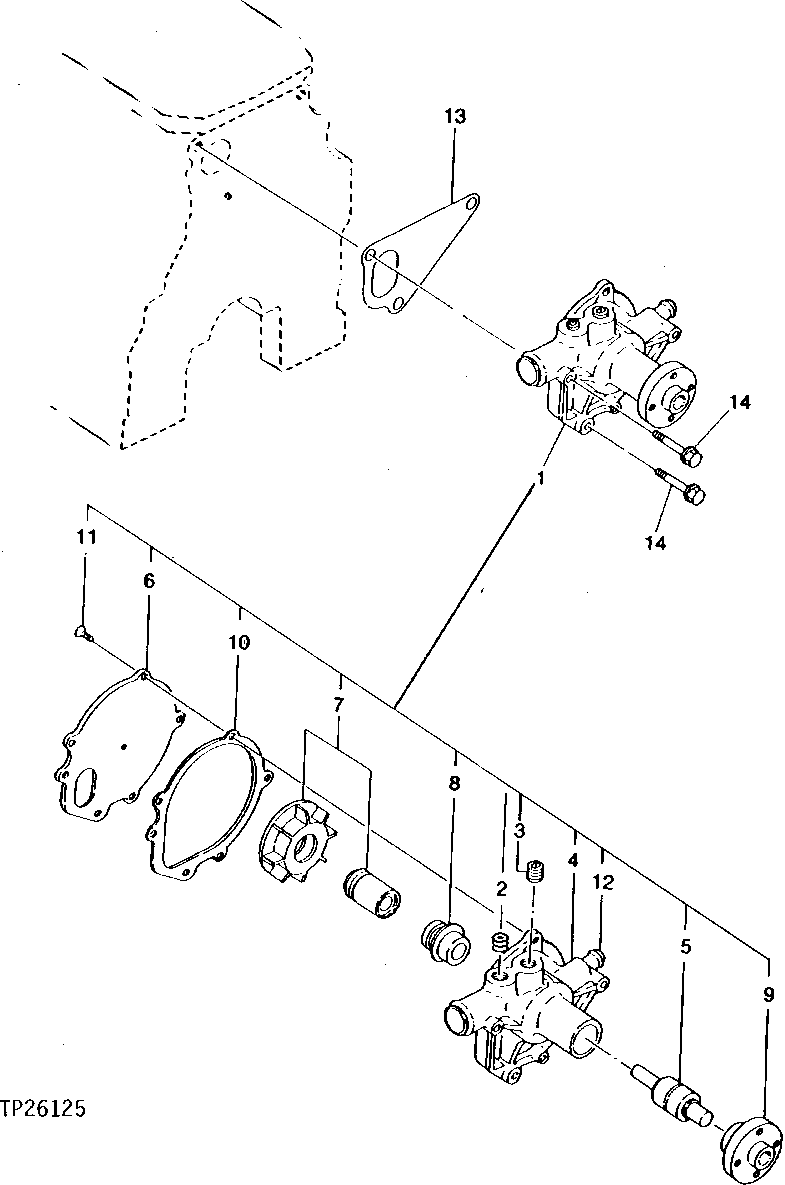

Запчасти John Deere 0 2 - ENGINE WATER PUMP 417 - ENGINE 4

1

AM880905

WATER PUMP

(SUB FOR AM878201, AM875398, AM875942 OR AM879651)

1шт.

2

CH16747

PLUG

1шт.

3

15H666

PIPE PLUG

3/8"

1шт.

4

PUMP

(SUB AM880905)

1шт.

5

BEARING

(SUB AM880905)

1шт.

6

M809501

PLATE

(SUB FOR M801260)

1шт.

7

M802028

ROTOR

(SUB FOR M801263)

1шт.

8

SEAL

( CH12895 NO LONGER AVAILABLE)

1шт.

9

M801259

SEAT

1шт.

10

M801261

GASKET

(USE WITH AM875942)

1шт.

M805839

GASKET

(USE WITH AM879651 OR AM880905)

1шт.

11

CH16851

SCREW

3шт.

12

HOSE FITTING

(SUB AM880905)

1шт.

13

M801265

GASKET

1шт.

14

19M7801

SCREW

M8 X 60

3шт.
