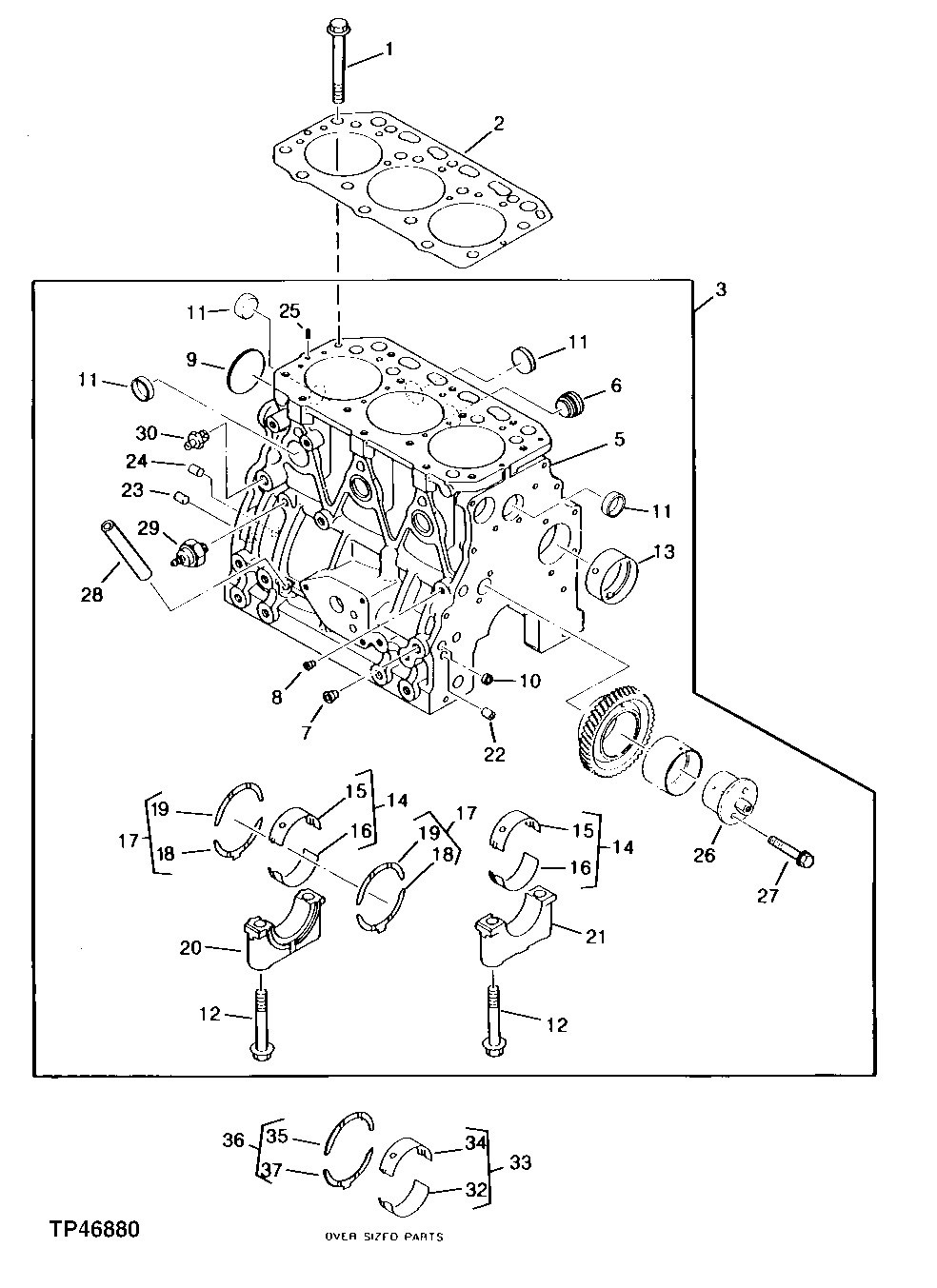

Запчасти John Deere 0 2 - ENGINE CYLINDER BLOCK 404 - ENGINE 4

1

M801186

BOLT

14шт.

2

M805831

ENGINE CYLINDER HEAD GASKET

(SUB FOR M801729 OR M802268)

1шт.

3

AT110857

CYLINDER BLOCK

1шт.

5

CYLINDER BLOCK

(SUB AT110857)

1шт.

6

15H562

PIPE PLUG

25.400 MM (1") WITHOUT ENGINE COOLANT HEATER

3шт.

7

CH10335

PLUG

3шт.

8

15H558

PIPE PLUG

3.175 MM (1/8")

1шт.

9

M806840

PLUG

(SUB FOR M800973)

1шт.

10

M87801

PLUG

2шт.

11

30M7023

PLUG

(SUB FOR CH10642)

6шт.

12

M801189

BOLT

8шт.

13

M800977

BUSHING

1шт.

14

AM875371

BEARING

STANDARD-SIZED (REQUIRES 4 SETS)

4шт.

15

BEARING

(SUB AM875371)

4шт.

16

BEARING

(SUB AM875371)

4шт.

17

AM875373

BEARING KIT

STANDARD-SIZED (REQUIRES 2 SETS)

2шт.

18

THRUST BEARING

(SUB AM875373)

2шт.

19

THRUST BEARING

(SUB AM875373)

2шт.

20

BEARING CAP

(SUB AT110857)

1шт.

21

BEARING CAP

(SUB AT110857)

3шт.

22

M800974

PIPE

2шт.

23

M802255

PIN

7.925 X 18.999 MM (5/16" X 0.748") (SUB FOR CH10534)

2шт.

24

T111356

PIN

2шт.

25

CH18079

SPRING PIN

2шт.

26

M800978

SHAFT

1шт.

27

CH19101

BOLT

2шт.

28

CH15495

GUIDE

1шт.

29

M809526

SWITCH

(SUB FOR CH15500) (OIL PRESSURE)

1шт.

30

CH15531

FITTING

1шт.

32

BEARING

(SUB AM875374)

1шт.

33

AM875374

BEARING KIT

(.25 MM, .010 INCH - OVERSIZE)

4шт.

34

BEARING

(SUB AM875374)

1шт.

35

BEARING

(SUB AM875373)

1шт.

36

AM875373

BEARING KIT

(REQUIRES ONE SET)

1шт.

37

BEARING

(SUB AM875373)

1шт.
