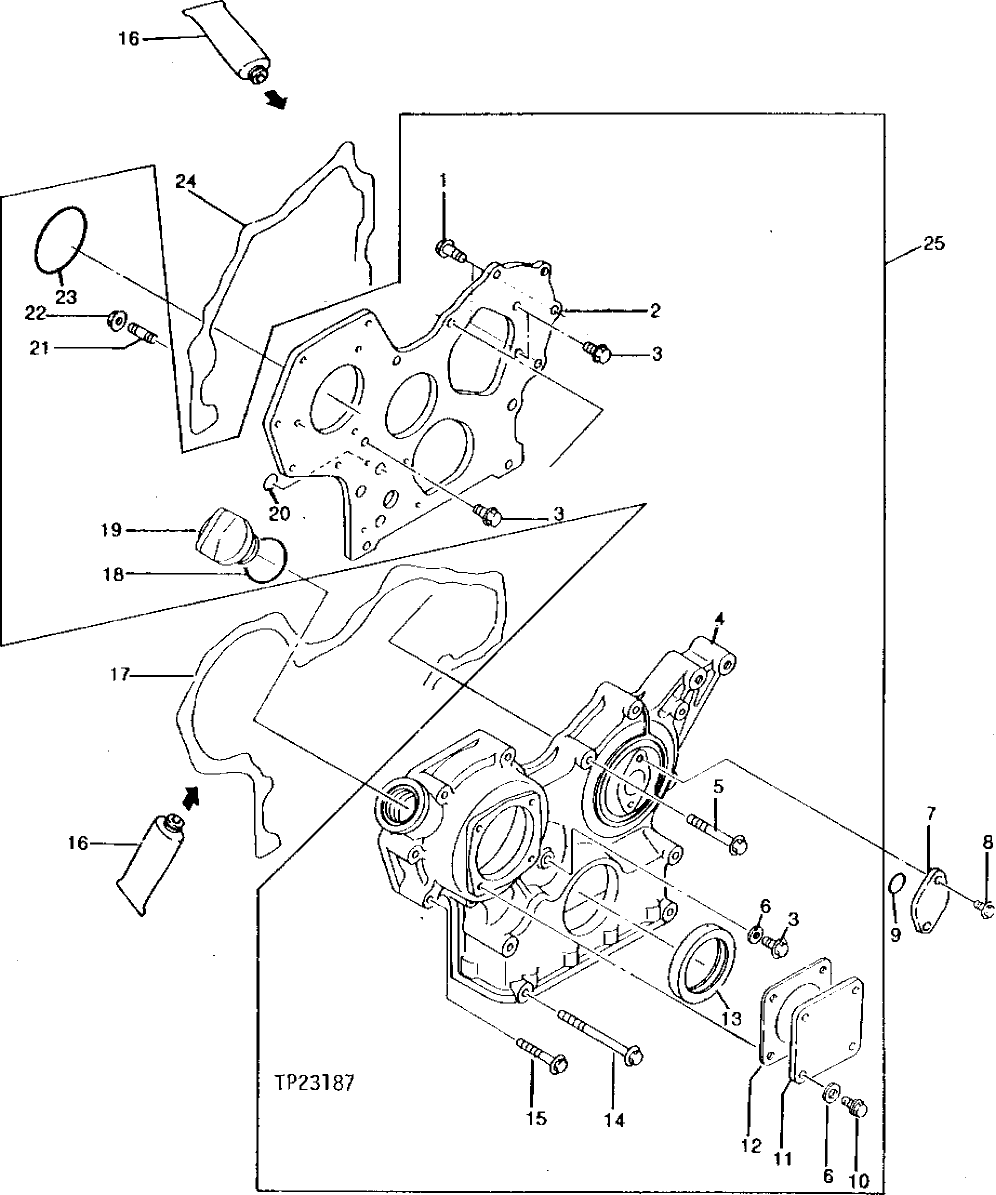

Запчасти John Deere 0 2 - ENGINE TIMING GEAR COVER 402 - ENGINE 4

1

19M7866

SCREW

M8 X 20, (USE WITH AT110877)

2шт.

19M7865

SCREW

M8 X 16, (USE WITH AM878200) (SUB FOR CH18390)

4шт.

2

M800989

PLATE

1шт.

3

19M7865

SCREW

M8 X 16, (USE WITH AT110877)

4шт.

19M7866

SCREW

M8 X 20, (USE WITH AM878200) (SUB FOR CH19139)

ARшт.

4

AM875303

COVER

(INCLUDES ITEM 13)

1шт.

5

19M7979

SCREW

M8 X 55, (SUB FOR CH19090)

3шт.

6

M803523

WASHER

(SUB FOR CH10645 AND M806424)

5шт.

7

M87874

COVER

1шт.

8

19M7774

SCREW

M6 X 12

1шт.

9

CH17653

PACKING

1шт.

10

19M7864

SCREW

M8 X 12, (SUB FOR CH19137)

4шт.

11

CH18096

COVER

1шт.

12

M805696

GASKET

(SUB FOR CH12816)

1шт.

13

M800988

SEAL

1шт.

14

CH19136

BOLT

4шт.

15

CH19101

BOLT

6шт.

16

M64850

SEALANT

ARшт.

17

SEALANT

(MAKE FROM M64850)

1шт.

18

M805711

PACKING

(SUB FOR CH15414)

1шт.

19

M805710

CAP

(SUB FOR CH10332)

1шт.

20

CH10570

O-RING

2шт.

21

CH15722

STUD

3шт.

22

14M7298

FLANGE NUT

M8, (SUB FOR CH18368)

3шт.

23

CH16940

O-RING

1шт.

24

SEALANT

(MAKE FROM M64850)

1шт.

25

AM878200

GEAR CASE

(SUB FOR AT110877)

1шт.
