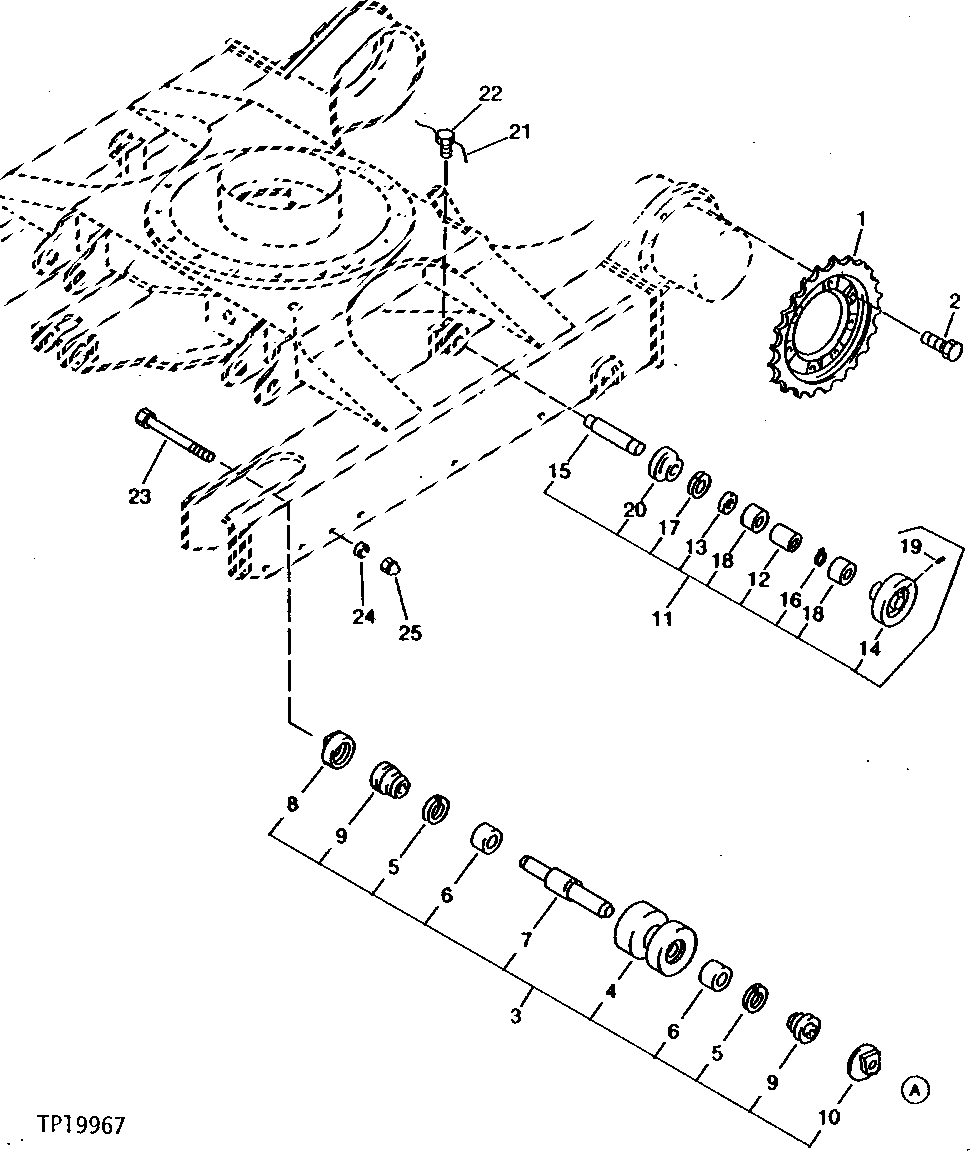

Запчасти John Deere 0 10 - ROLLERS AND DRIVE SPROCKET 130 - TRACKS 1

1

T113804

CHAIN SPROCKET

2шт.

2

19M7744

CAP SCREW

M12 X 35, (SUB FOR M801662, ALONG WITH 12M7065)

18шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

18шт.

3

AT111529

ROLLER

8шт.

4

T113805

ROLLER

LOWER

8шт.

5

40M7043

SNAP RING

(SUB FOR CH15010)

16шт.

6

JD30067

BALL BEARING

(SUB FOR T111334)

16шт.

7

T111349

SHAFT

8шт.

8

COVER

( T111350 NO LONGER AVAILABLE FOR SERVICE)

8шт.

9

T110815

SEAL

16шт.

10

T111351

COVER

8шт.

11

AT111530

ROLLER

2шт.

12

T110372

BUSHING

2шт.

13

T110373

WASHER

2шт.

14

T113806

ROLLER

UPPER

2шт.

15

T110072

SHAFT

UPPER

2шт.

16

CH11481

RING

2шт.

17

CH11487

RING

2шт.

18

CH11550

BALL BEARING

4шт.

19

94-2010

FITTING PLUG

(SUB FOR T110620) (SUB FOR TH100689)

2шт.

20

T111354

SEAL

2шт.

21

T110425

WIRE

2шт.

22

T110481

BOLT

2шт.

23

T110057

BOLT

8шт.

24

12M7069

LOCK WASHER

8шт.

25

T110472

NUT

8шт.
