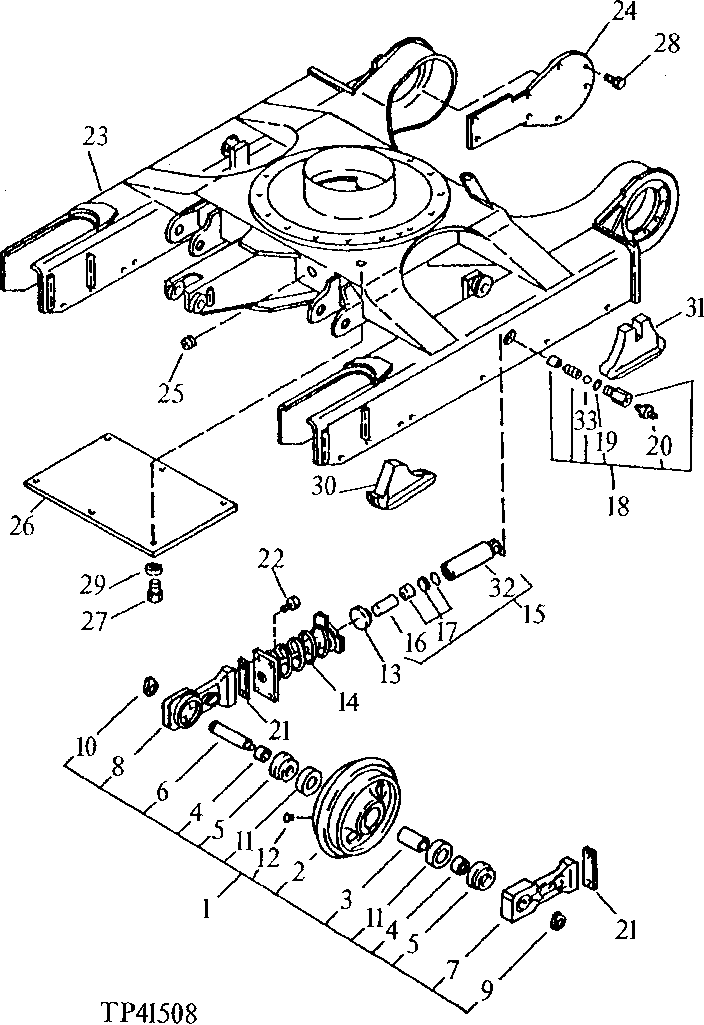

Запчасти John Deere 0 4 - TRACK FRAME AND IDLER 130 - TRACKS 1

1

AT111531

TRACK IDLER

2шт.

2

IDLER

T113807 NO LONGER AVAILABLE)

2шт.

3

T110378

BUSHING

2шт.

4

T110379

BUSHING

4шт.

5

T111301

SEAL

4шт.

6

T110380

SHAFT

2шт.

7

T110381

COVER

2шт.

8

T110382

COVER

(USE IF AVAILABLE)

2шт.

9

40M7084

SNAP RING

(SUB FOR CH11482)

2шт.

10

40M7046

SNAP RING

(SUB FOR CH11483)

2шт.

11

JD8518

BALL BEARING

(SUB FOR CH16424)

4шт.

12

94-2010

FITTING PLUG

(SUB FOR T110620) (SUB FOR TH100689)

2шт.

13

AT110014

HOLDER

2шт.

14

T113808

SPRING

2шт.

15

AT110323

ADJUSTER

2шт.

16

PISTON

( T110099 NO LONGER AVAILABLE)

2шт.

17

AT110015

SEAL KIT

2шт.

18

AT110016

FLOW CONTROL HYD. VALVE

2шт.

19

CH11570

O-RING

2шт.

20

TH100074

LUBRICATION FITTING

2шт.

21

T113809

STRAP

4шт.

22

19M7073

CAP SCREW

8шт.

12M7058

LOCK WASHER

(SUB FOR 12M7067)

8шт.

23

FRAME

( T114063 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)

1шт.

24

T111036

COVER

2шт.

25

T111178

GROMMET

2шт.

26

T111037

COVER

1шт.

27

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

6шт.

12M7066

LOCK WASHER

10 MM

6шт.

28

19M7166

CAP SCREW

16шт.

12M7066

LOCK WASHER

16шт.

29

24M7296

WASHER

10.500 X 30 X 2.500 MM, (SUB FOR T110607)

6шт.

30

T114175

GUIDE

2шт.

31

T114176

GUIDE

2шт.

32

MOUNTING PARTS

( AT110398 NO LONGER AVAILABLE)

2шт.

33

400R

BALL

2шт.
