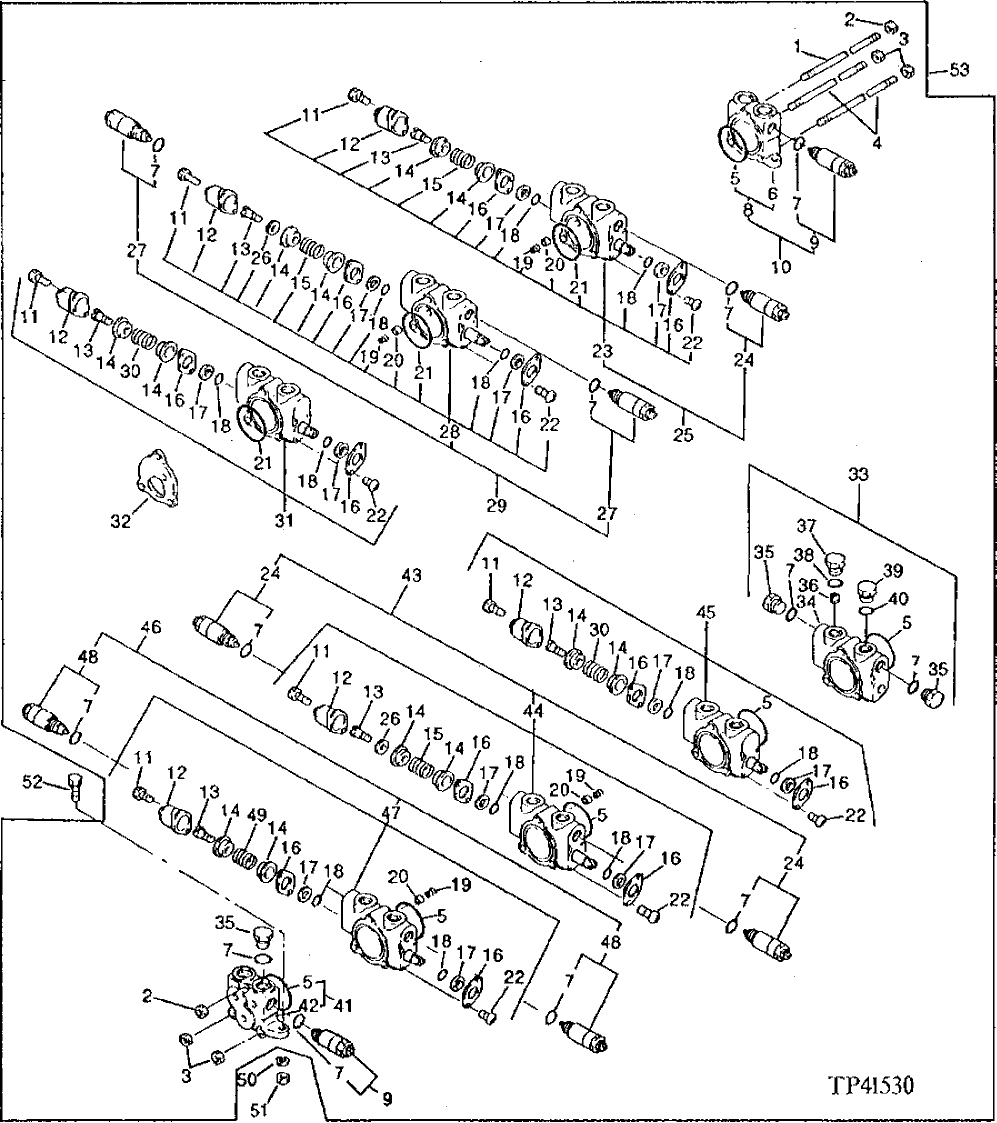

Запчасти John Deere 0 8 - MAIN HYDRAULIC CONTROL VALVE 3360 - BACKHOE 33

1

T111634

TIE ROD ASSEMBLY

1шт.

2

14M7274

NUT

M10

2шт.

3

14M7273

NUT

M8

4шт.

4

T111635

TIE ROD ASSEMBLY

2шт.

5

T111416

O-RING

6шт.

6

AT110986

HOUSING

1шт.

7

T111426

O-RING

12шт.

8

FILLER NECK

( AT110666 NO LONGER AVAILABLE)

1шт.

9

AT110984

PRESSURE RELIEF VALVE

2шт.

10

VALVE

( AT110985 NO LONGER AVAILABLE)

1шт.

11

T111425

BOLT

12шт.

12

T111420

CAP

6шт.

13

T111417

CAP SCREW

6шт.

14

T111418

PLATE

12шт.

15

T111419

SPRING

3шт.

16

T111421

PLATE

12шт.

17

T111422

RING

12шт.

18

T111423

O-RING

12шт.

19

T111415

SPRING

4шт.

20

T111414

POPPET

4шт.

21

T111416

O-RING

3шт.

22

T111424

SCREW

12шт.

23

AT110991

SPOOL VALVE

1шт.

24

AT110989

PRESSURE RELIEF VALVE

3шт.

25

VALVE

BUCKET ( AT110990 NO LONGER AVAILABLE)

1шт.

26

T111432

WASHER

2шт.

27

AT110989

PRESSURE RELIEF VALVE

2шт.

28

AT110993

SPOOL VALVE

1шт.

29

VALVE

BOOM ( AT110992 NO LONGER AVAILABLE)

1шт.

30

T111431

SPRING

2шт.

31

AT110978

SPOOL VALVE

RIGHT TRACK

1шт.

32

T111627

SPACER

1шт.

33

AT110982

HYD ACTUATED CONTROL VALVE

1шт.

34

T111630

SPACER

1шт.

35

T111427

PLUG

3шт.

36

T111476

PLUG

1шт.

37

T111631

PLUG

1шт.

38

4506418

O-RING

(SUB FOR T110438) (SUB FOR U46489)

1шт.

39

T111632

PLUG

1шт.

40

CH11570

O-RING

1шт.

41

FILLER NECK

( AT110649 NO LONGER AVAILABLE)

1шт.

42

T111633

HOUSING

1шт.

43

VALVE

(ARM) ( AT110987 NO LONGER AVAILABLE)

1шт.

44

AT110988

SPOOL VALVE

1шт.

45

AT110977

SPOOL VALVE

(LEFT TRACK)

1шт.

46

VALVE

(BOOM SWING) ( AT110979 NO LONGER AVAILABLE)

1шт.

47

AT110980

SPOOL VALVE

1шт.

48

AT111050

PRESSURE RELIEF VALVE

2шт.

49

SPRING

(SUB AT110980)

1шт.

50

12M7060

WASHER

5.300 MM

4шт.

51

14M7274

NUT

M10

4шт.

52

12M7006

LOCK WASHER

6 MM

4шт.

19M7167

CAP SCREW

M10 X 25

4шт.

53

CONTROL VALVE

(*AT110067 NO LONGER AVAILABLE)

1шт.
