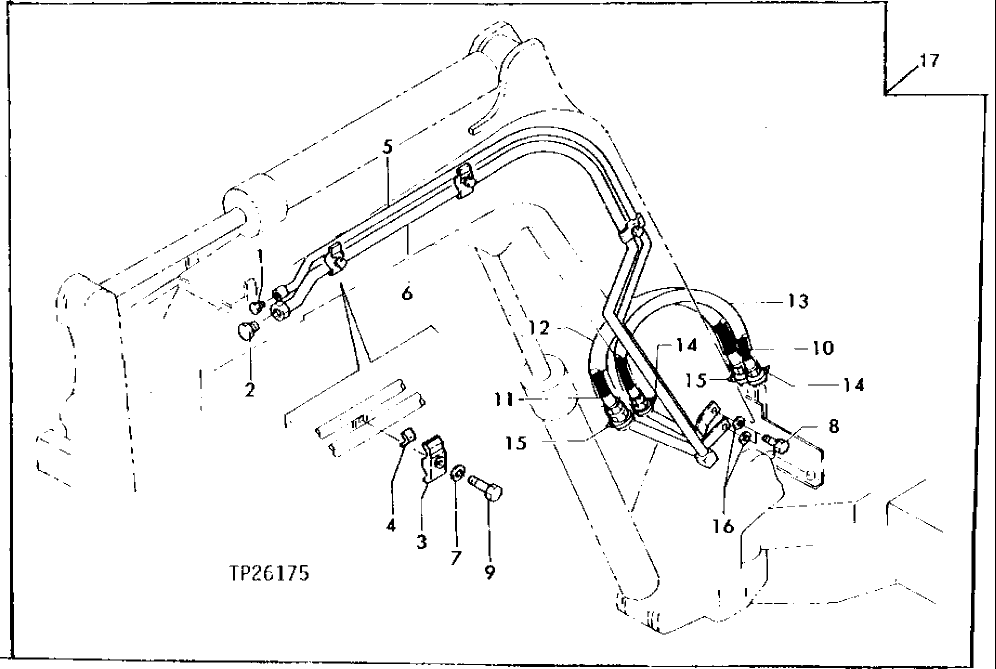

Запчасти John Deere 0 6 - HYDRAULIC HOSES AND LINES 3360 - BACKHOE 33

1

T111680

PIPE PLUG

1шт.

2

T111666

PIPE PLUG

1шт.

3

T111457

CLAMP

(USE IF AVAILABLE)

3шт.

4

T111681

SPACER

3шт.

5

T111682

OIL LINE

1шт.

6

AT111506

OIL LINE

(SUB FOR T111683)

1шт.

7

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

3шт.

8

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

9

19M7330

CAP SCREW

M12 X 55, (SUB FOR 19M7388)

3шт.

10

T111106

HYDRAULIC HOSE - FABRICATE

1шт.

11

T111686

HYDRAULIC HOSE - FABRICATE

1шт.

12

T111684

COVER

USE WITH CANOPY AND AUXILIARY VALVE

1шт.

13

T111685

COVER

USE WITH CANOPY AND AUXILIARY VALVE

1шт.

14

T111126

CLAMP

USE WITH CANOPY AND AUXILIARY VALVE

2шт.

15

CH16579

CLAMP

USE WITH CANOPY AND AUXILIARY VALVE

2шт.

16

24M7296

WASHER

10.500 X 30 X 2.500 MM, (SUB FOR T110607)

2шт.

17

VALVE

(ALSO INCLUDES BLADE CONTROL VALVE, CABLE, LEVER, AND HOSES PICTURED ON OTHER PAGES) ( AT107206 NO LONGER AVAILABLE)

1шт.
