Запчасти John Deere 0 2 - BLADE CONTROL VALVE, CABLE AND LEVER 3360 - BACKHOE 33

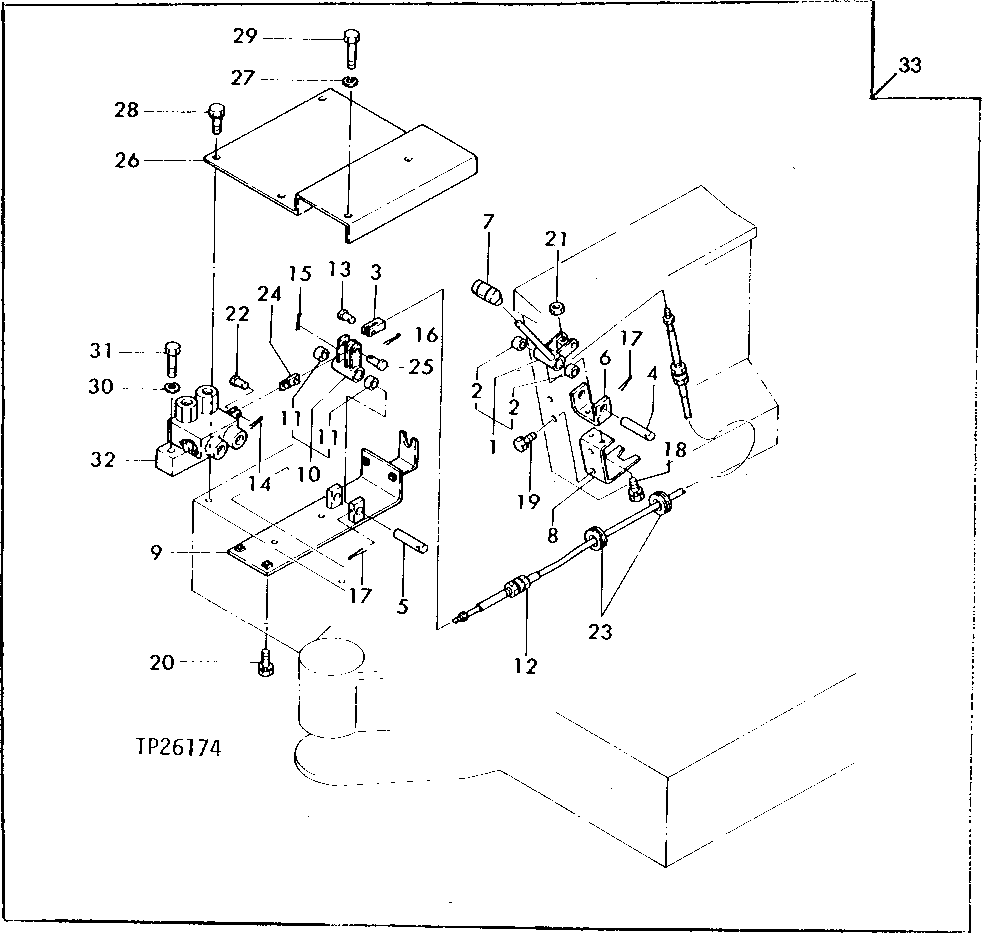

Схема запчастей John Deere 0 - 2 - BLADE CONTROL VALVE, CABLE AND LEVER 3360 - BACKHOE 33

Артикул

Название

Примечание

Количество

1

AT110671

LEVER

1шт.

2

T110633

BUSHING

2шт.

3

T110013

UNIVERSAL JOINT

1шт.

4

AT110001

SHAFT

1шт.

5

AT110001

SHAFT

1шт.

6

T110105

BRACKET

1шт.

7

T110837

GRIP

1шт.

8

T111451

BRACKET

1шт.

9

T111695

BRACKET

1шт.

10

AT111056

LINK

1шт.

11

T110633

BUSHING

2шт.

12

T110122

CABLE

1шт.

13

T110002

PIN

1шт.

14

11M7094

COTTER PIN

1.600 X 16 MM, (SUB FOR T110417)

1шт.

15

11M7058

COTTER PIN

2 X 25 MM, (SUB FOR T110418) (SUB FOR 11M7009)

1шт.

16

11M7077

COTTER PIN

1.600 X 25 MM, (SUB FOR 11M7076)

1шт.

17

11M7087

COTTER PIN

(SUB FOR T111661) (SUB FOR 11M7023)

2шт.

18

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

19

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

20

12M7066

LOCK WASHER

10 MM

4шт.

19M7166

CAP SCREW

M10 X 20

4шт.

21

14M7272

NUT

M6, (SUB FOR CH17809)

1шт.

22

T110484

PIN FASTENER

1шт.

23

T110622

GROMMET

2шт.

24

T111662

LINK

1шт.

25

T110627

PIN

1шт.

26

T111696

STEP

1шт.

27

12M7060

WASHER

5.300 MM

2шт.

28

12M7066

LOCK WASHER

10 MM

3шт.

19M7166

CAP SCREW

M10 X 20

3шт.

29

CH15013

BOLT

2шт.

30

12M7060

WASHER

5.300 MM

2шт.

31

CH15013

BOLT

2шт.

32

T111664

HYD ACTUATED CONTROL VALVE

1шт.

33

VALVE

(INCLUDES BLADE CONTROL VALVE, CABLE, LEVER AND HOSES PICTURED ON OTHER PAGES) ( AT107206 NO LONGER AVAILABLE)

1шт.

Выбрано товаров: 37
