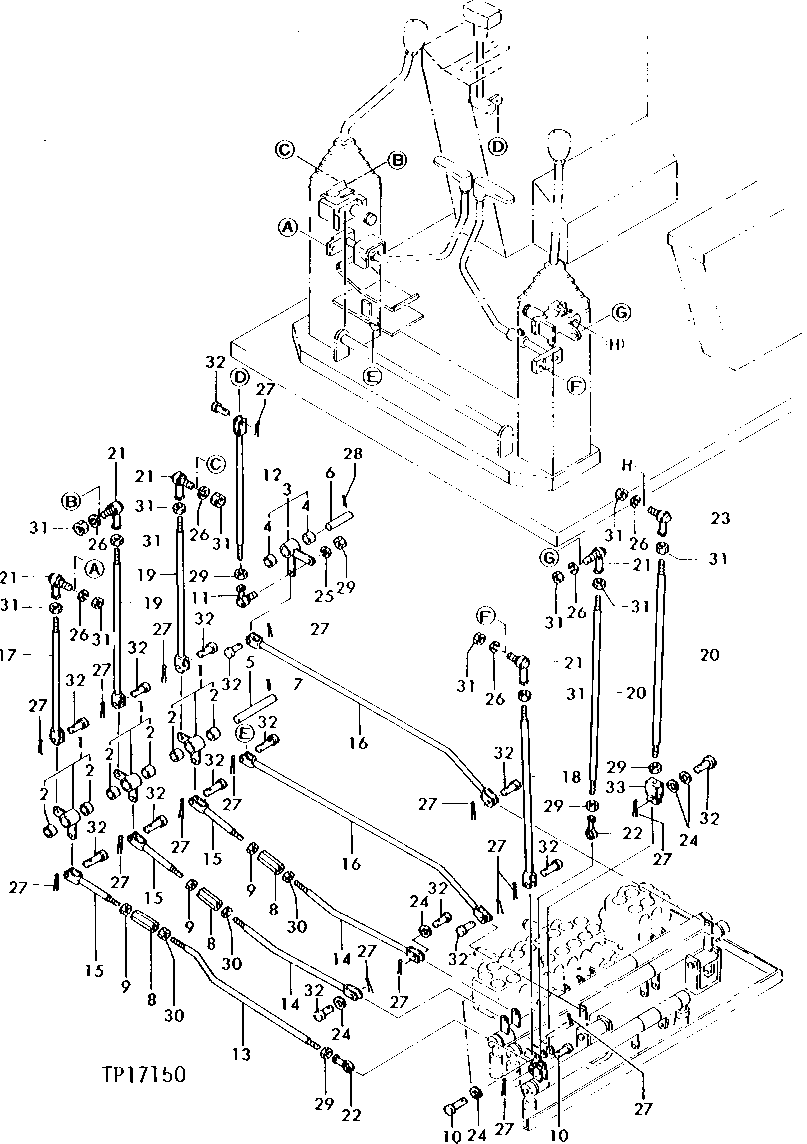

Запчасти John Deere 0 8 - CONTROL LEVER LINKAGE 3315 - BACKHOE 33

1

AT110023

LINK

3шт.

2

T110633

BUSHING

6шт.

3

AT110028

LINK

1шт.

4

T110633

BUSHING

2шт.

5

T110110

SHAFT

1шт.

6

T110111

SHAFT

1шт.

7

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR T110419) (SUB FOR 11M7023)

1шт.

8

T110383

BAR

3шт.

9

14M7228

NUT

M10

3шт.

10

T110020

PIN

2шт.

11

T110021

BALL JOINT SOCKET

1шт.

12

AT110002

ROD

BLADE

1шт.

13

T110229

ROD

1шт.

14

AT110110

ROD

2шт.

15

AT110035

ROD

3шт.

16

AT110036

ROD

2шт.

17

AT110037

ROD

RIGHT TRACK (A)

1шт.

18

AT110038

ROD

LEFT TRACK (F)

1шт.

19

AT110039

ROD

BUCKET (B), ARM (C)

2шт.

20

T110117

STUD

HOUSE SWING (G), BOOM (H)

2шт.

21

T110119

TIE ROD END

5шт.

22

T110120

ROD

2шт.

23

T110121

TIE ROD END

1шт.

24

24M7095

WASHER

8.400 X 15 X 1.600 MM

5шт.

25

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

26

12M7060

WASHER

5.300 MM

6шт.

27

11M7058

COTTER PIN

2 X 25 MM, (SUB FOR 11M7009)

17шт.

28

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR T110419) (SUB FOR 11M7023)

1шт.

29

14M7273

NUT

M8

5шт.

30

14M7274

NUT

M10

3шт.

31

14M7153

NUT

M10

12шт.

32

T110627

PIN

15шт.

33

T110628

CLEVIS

1шт.
