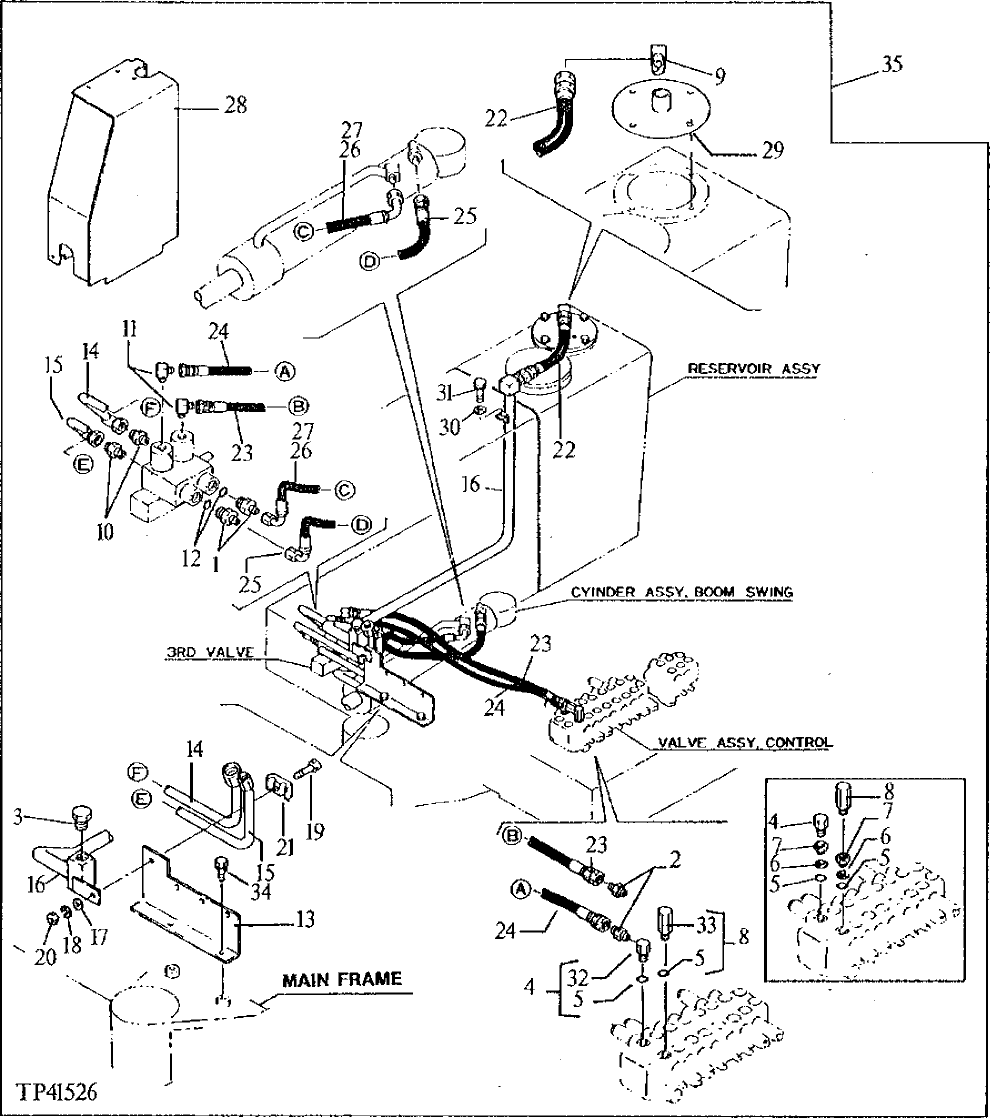

Запчасти John Deere 0 10 - HYDRAULIC HOSES, LINES AND FITTINGS 2160 - MAIN HYDRAULIC SYSTEM 21

1

T110868

FITTING

2шт.

2

T115957

ADAPTER FITTING

(SUB FOR T110867)

2шт.

3

T111666

PIPE PLUG

1шт.

4

T110592

CONNECTOR

(SUB AT111535)

1шт.

AT111535

FITTING

1шт.

5

T110593

PACKING

2шт.

6

T110594

BACK-UP RING

(SUB AT111535 OR AT111536)

2шт.

7

T110595

NUT

(SUB AT111535 OR AT111536)

2шт.

8

T110616

ELECTRICAL CONNECTOR ASSY

(SUB AT111536)

1шт.

AT111536

FITTING

1шт.

9

4156433

ELBOW FITTING

(SUB FOR T111099) (SUB FOR TH101971)

1шт.

10

X8F3P4S

ADAPTER FITTING

(SUB FOR T111980, TH100960 OR 94-1303)

2шт.

11

T115889

ELBOW FITTING

(SUB FOR T110866)

2шт.

12

T110593

PACKING

2шт.

13

T111669

SUPPORT

1шт.

14

T111697

OIL LINE

1шт.

15

T111698

OIL LINE

1шт.

16

T111699

OIL LINE

1шт.

17

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

18

12M7060

WASHER

5.300 MM

1шт.

19

CH15013

BOLT

1шт.

20

14M7274

NUT

M10

1шт.

21

T110599

CLAMP

1шт.

22

T111679

HYDRAULIC HOSE - FABRICATE

1шт.

23

T111700

HYDRAULIC HOSE - FABRICATE

1шт.

24

T111701

HYDRAULIC HOSE - FABRICATE

1шт.

25

AT111504

HYDRAULIC HOSE

(SUB FOR T111702)

1шт.

26

AT111505

HYDRAULIC HOSE

(SUB FOR T111703) USE WITH CANOPY AND AUXILIARY VALVE

1шт.

27

AT111505

HYDRAULIC HOSE

(SUB FOR T111703) USE WITH CAB AND AUXILIARY VALVE

1шт.

28

T111704

COVER

1шт.

29

T111650

COVER

1шт.

30

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

31

12M7066

LOCK WASHER

10 MM

1шт.

19M7166

CAP SCREW

M10 X 20

1шт.

32

FITTING

(SUB AT111535)

1шт.

33

FITTING

(SUB AT111536)

1шт.

34

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

35

VALVE

(ALSO INCLUDES BLADE CONTROL VALVE, CABLE, LEVER, AND HOSES PICTURED ON OTHER PAGES) ( AT107206 NO LONGER AVAILABLE)

1шт.
