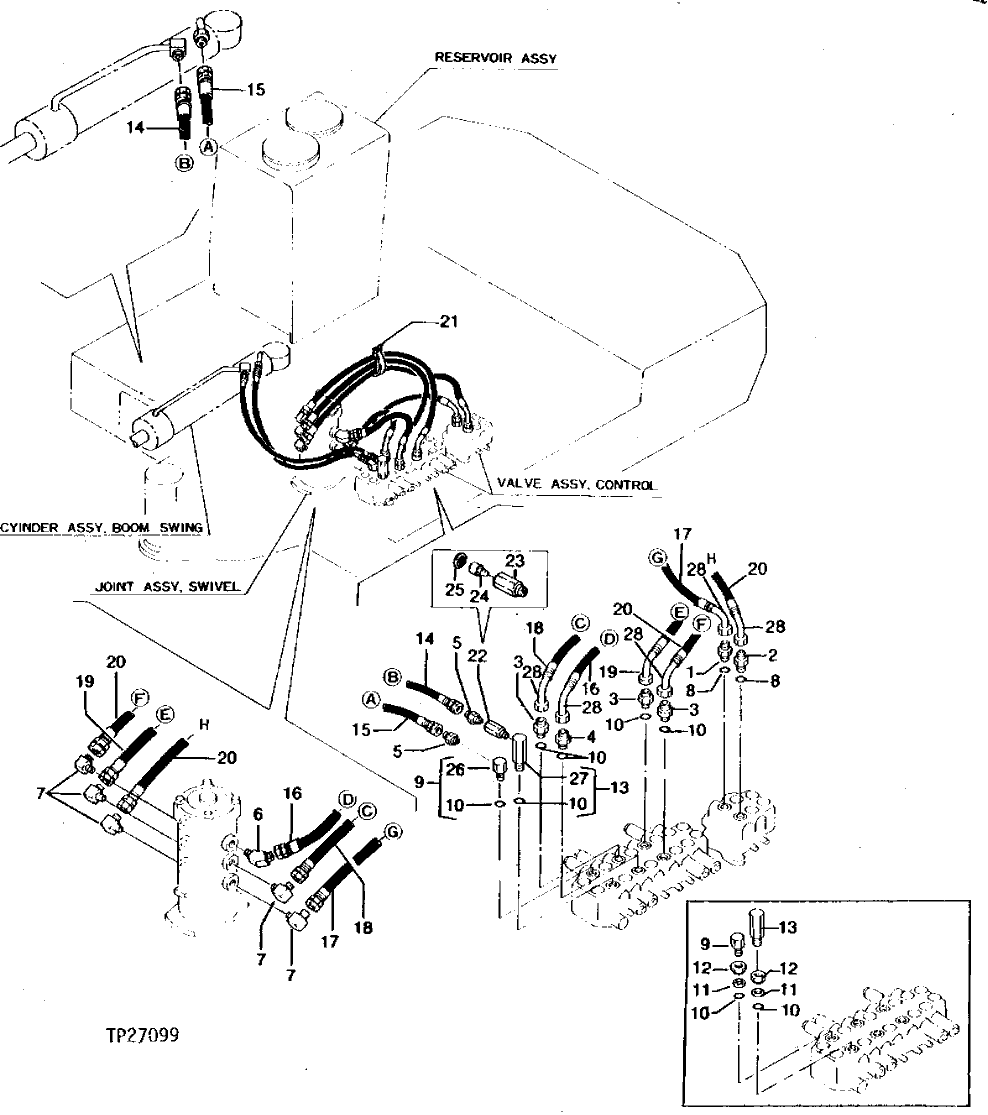

Запчасти John Deere 0 8 - HYDRAULIC HOSES AND FITTINGS 2160 - MAIN HYDRAULIC SYSTEM 21

1

T111093

SELF-OPERATING VALVE

1шт.

2

T110900

FITTING

1шт.

3

T111096

ADAPTER FITTING

3шт.

4

T110872

FITTING

1шт.

5

T115957

ADAPTER FITTING

(SUB FOR T110867)

2шт.

6

T115887

ELBOW FITTING

(SUB FOR T110865)

1шт.

7

T115889

ELBOW FITTING

(SUB FOR T110866)

5шт.

8

CH11570

O-RING

2шт.

9

T110592

CONNECTOR

(SUB AT111535)

1шт.

AT111535

FITTING

1шт.

10

T110593

PACKING

6шт.

11

T110594

BACK-UP RING

USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB, (SUB AT111535 OR AT111536)

2шт.

12

T110595

NUT

USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB, (SUB AT111535 OR AT111536)

2шт.

13

T110616

ELECTRICAL CONNECTOR ASSY

USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB, (SUB AT111536)

1шт.

AT111536

FITTING

1шт.

14

AR84721

HYDRAULIC HOSE

(SUB FOR T111108) USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB

1шт.

15

AR86055

HYDRAULIC HOSE

(SUB FOR T111109) USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB

1шт.

16

AR50603

HYDRAULIC HOSE

(SUB FOR T111110, ALONG WITH AE24616)

1шт.

17

AR98204

HYDRAULIC HOSE

(SUB FOR T111111, ALONG WITH AE24616)

1шт.

18

AR98204

HYDRAULIC HOSE

(SUB FOR T111111, ALONG WITH AE24616)

1шт.

19

T111112

HYDRAULIC HOSE - FABRICATE

1шт.

20

AT67064

HYDRAULIC HOSE - FABRICATE

(SUB FOR T111113, ALONG WITH AE24616)

2шт.

21

T110612

TIE BAND

1шт.

22

AT110071

FLOW CONTROL HYD. VALVE

USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB

1шт.

23

T110184

FLOW CONTROL HYD. VALVE

USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB

1шт.

24

T111090

SPOOL

USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB

1шт.

25

T110414

RING

USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB

1шт.

26

FITTING

(SUB AT111535)

1шт.

27

FITTING

(SUB AT111536)

1шт.

28

AE24616

ELBOW FITTING

5шт.
