Запчасти John Deere 0 6 - HYDRAULIC HOSES, LINES AND FITTINGS 2160 - MAIN HYDRAULIC SYSTEM 21

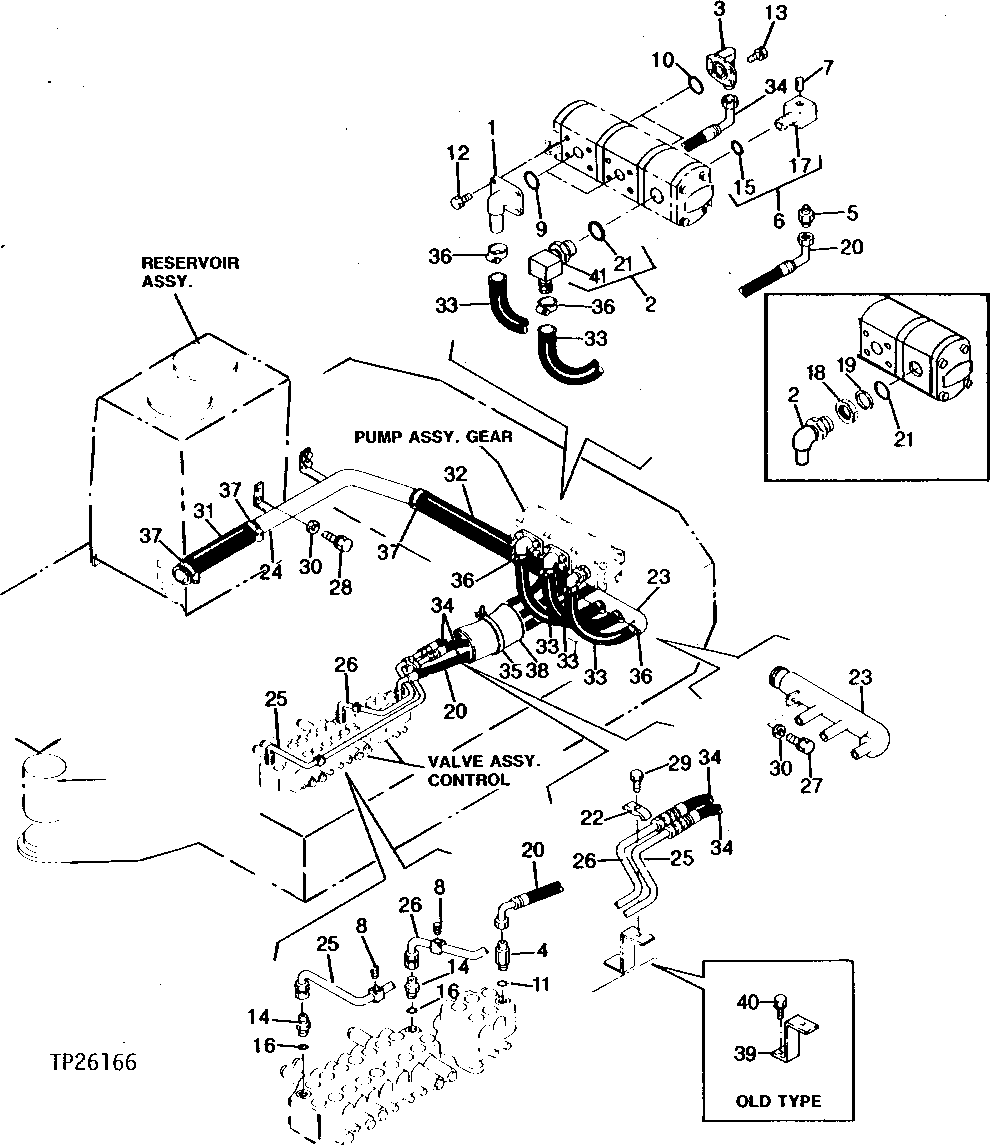

Схема запчастей John Deere 0 - 6 - HYDRAULIC HOSES, LINES AND FITTINGS 2160 - MAIN HYDRAULIC SYSTEM 21

Артикул

Название

Примечание

Количество

1

T110182

FLANGE

2шт.

2

AT110070

FITTING

1шт.

AT111533

FITTING

1шт.

3

T111092

FLANGE

2шт.

4

T111097

ADAPTER FITTING

1шт.

5

4154653

ADAPTER FITTING

(SUB FOR T110871) (SUB FOR TH100989)

1шт.

6

AT111511

FITTING

1шт.

7

T110873

PLUG

1шт.

8

T110873

PLUG

2шт.

9

CH11566

PACKING

2шт.

10

CH11566

PACKING

2шт.

11

CH11570

O-RING

1шт.

12

12M7066

LOCK WASHER

10 MM

8шт.

19M7166

CAP SCREW

M10 X 20

8шт.

13

12M7066

LOCK WASHER

10 MM

8шт.

19M7166

CAP SCREW

M10 X 20

8шт.

14

T110589

FITTING

2шт.

15

T110590

PACKING

1шт.

16

T110590

PACKING

2шт.

17

CONNECTOR

(SUB AT111511)

1шт.

18

T110597

NUT

(SUB AT111533)

1шт.

19

T110598

BACK-UP RING

(SUB AT111533)

1шт.

20

T111103

HYDRAULIC HOSE - FABRICATE

1шт.

21

T118681

O-RING

(SUB FOR T110604)

1шт.

22

T110033

RETAINER

1шт.

23

AT110073

TUBE

1шт.

24

AT110074

TUBE

1шт.

25

AT110446

OIL LINE

1шт.

26

AT110447

OIL LINE

1шт.

27

12M7066

LOCK WASHER

10 MM

1шт.

19M7402

CAP SCREW

M10 X 25

1шт.

28

12M7066

LOCK WASHER

10 MM

4шт.

19M7402

CAP SCREW

M10 X 25

4шт.

29

12M7006

LOCK WASHER

6 MM

1шт.

19M7167

CAP SCREW

M10 X 25

1шт.

30

24M7028

WASHER

10.500 X 20 X 2 MM

5шт.

31

T110185

HYDRAULIC HOSE

1шт.

32

T110186

HYDRAULIC HOSE

1шт.

33

T110187

HYDRAULIC HOSE - FABRICATE

3шт.

34

T111102

HYDRAULIC HOSE - FABRICATE

2шт.

35

T110612

TIE BAND

1шт.

36

TY22467

CLAMP

(SUB FOR T110428 OR AT145650)

6шт.

37

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999)

4шт.

38

T111651

BUSHING

1шт.

39

T111693

SUPPORT

1шт.

40

12M7066

LOCK WASHER

10 MM

2шт.

19M7402

CAP SCREW

M10 X 25

2шт.

41

FITTING

(SUB AT111533)

1шт.

Выбрано товаров: 48
